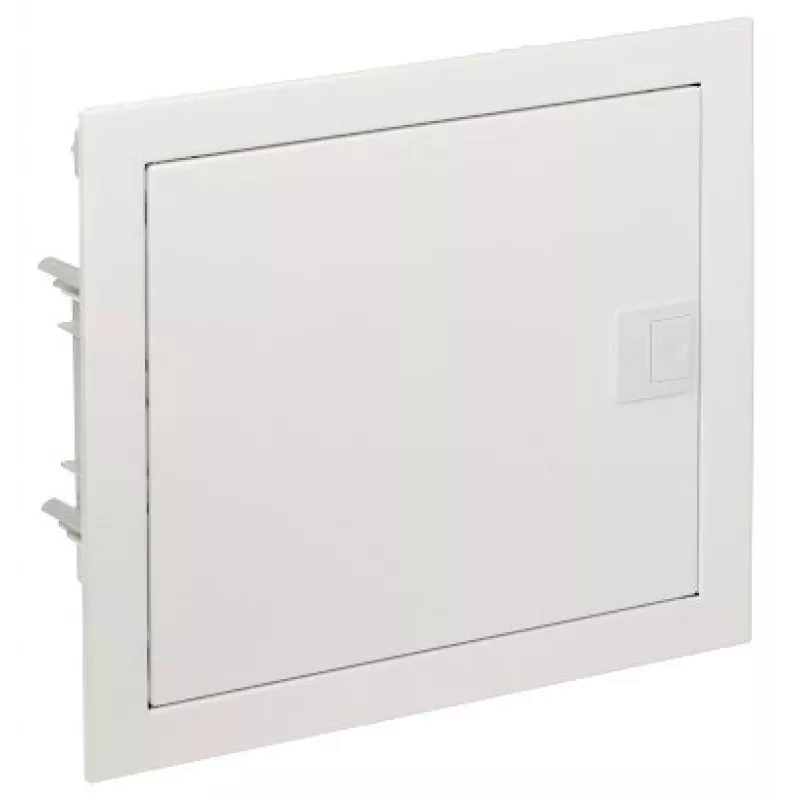

ELEKTRO-PLAST MSF RP Distribuidor de plástico PT 14M 1x 14M N+PE IP30 IK05 329x358x94 puerta metálica blanco

The ELEKTRO-PLAST MSF RP Plastic Switchgear is a flush-mounted distribution board designed for indoor use. It features a robust plastic enclosure with a white metal door, providing reliable protection for electrical installations. With 14 modules on a single row and integrated N+PE busbars, this unit is ideal for residential and commercial applications requiring a compact and safe power distribution solution.

Advantages

This distribution board offers a high-quality metal door for enhanced durability and security, while the plastic enclosure ensures lightweight and corrosion-resistant performance. The IP30 rating protects against solid objects larger than 2.5 mm, and IK05 impact resistance safeguards against mechanical shocks. The included neutral and earth terminals simplify wiring and ensure compliance with safety standards.

Suitable for

• Residential electrical installations
• Commercial buildings
• Industrial control panels
• Flush-mounted applications in dry indoor environments

Key specifications

• Product Type: Distribution Board
• Mounting Type: Flush-mounted (Recessed)
• Number of Modules: 14
• Number of Rows: 1
• Enclosure Material: Plastic
• Door Material: Metal
• Door Color: White
• Ingress Protection: IP30
• Impact Protection: IK05
• Terminals: Neutral (N) and Protective Earth (PE)
• External Width: 358 mm
• External Height: 329 mm
• External Depth: 94 mm
• Application Environment: Indoor, Dry
• Busbar Type: N+PE (Neutral and Earth) Busbars
• Door Type: Hinged, Opaque

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is designed for use with standard modular devices and should be installed in a dry, indoor location. Always follow local electrical codes and regulations.
