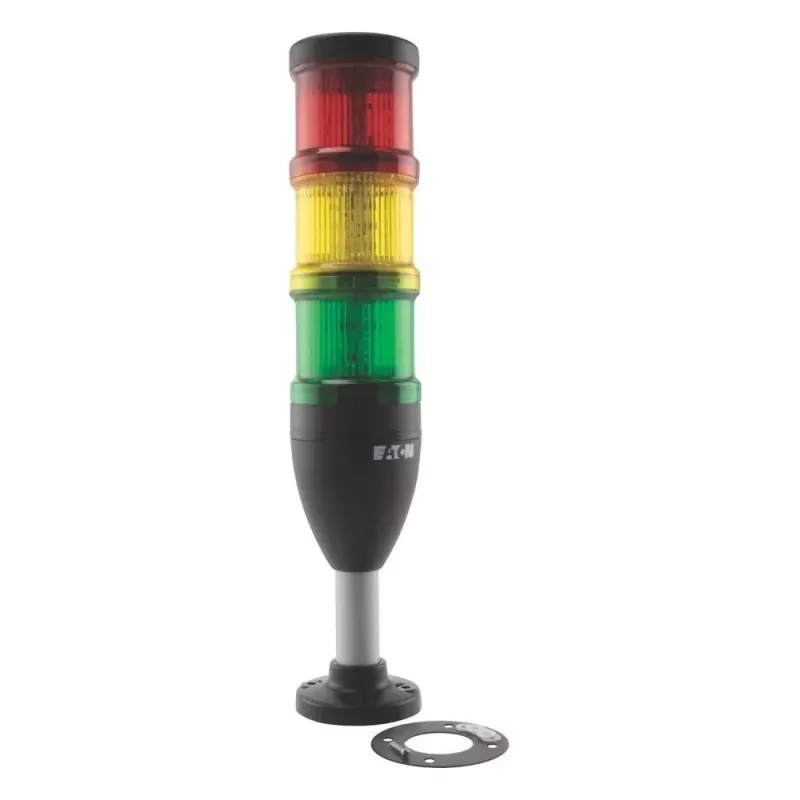

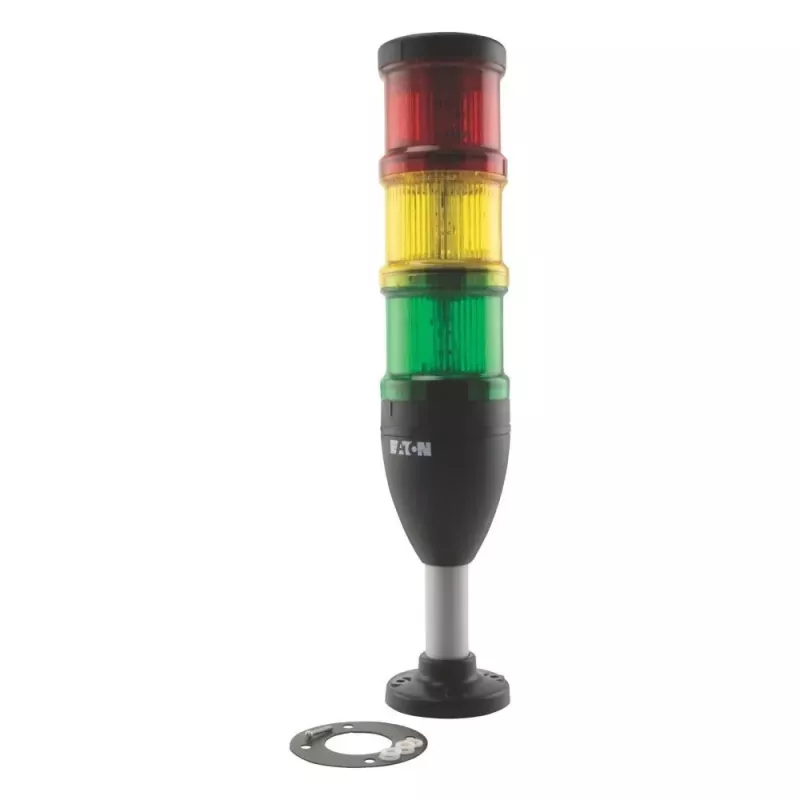

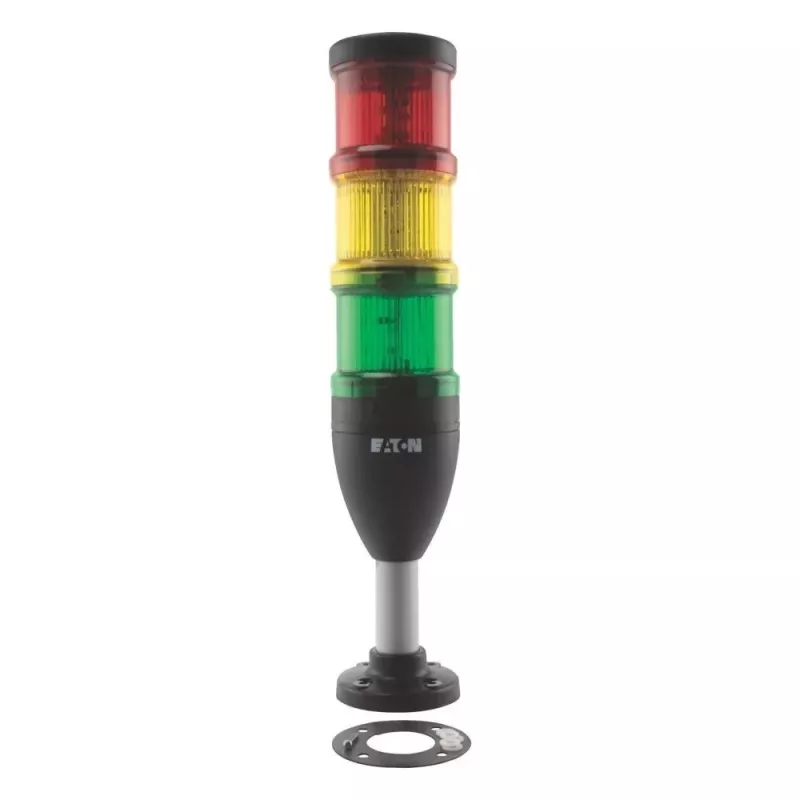

Elemento para torre de señalización Eaton SL7-100-L-RYG-24LED, rojo/amarillo/verde, 24V AC/DC 171425

In automated production lines and packaging machinery, operators need immediate visual status alerts. The Eaton SL7-100-L-RYG-24LED signal tower element delivers clear red, yellow, and green continuous light in one compact unit, operating on 24 V AC/DC.

Key specifications

• Light type: continuous light
• Light source: LED, 24 LEDs total
• Colors: red, yellow, green
• Operating voltage: 24 V AC/DC
• Current consumption: max. 30 mA per active color
• Diameter: 70 mm
• Protection class: IP66
• Housing material: polycarbonate (PC) / ABS
• Lens material: polycarbonate (PC)
• Operating temperature: -30 to +60 °C
• Storage temperature: -40 to +70 °C
• Connection type: screw terminals
• Mounting type: stackable for SL7 signal tower base/elements
• Life expectancy: > 50,000 hours

Why choose it

This element integrates three signal colors in a single stackable module, reducing installation height and wiring complexity. Its LED technology ensures long life and low energy consumption, while the IP66 rating protects against dust and water jets in demanding industrial environments.

Ideal use cases

• Machine status indication on assembly lines
• Process monitoring in packaging and filling systems
• Alarm signaling in material handling equipment

Good to know

The SL7 series allows flexible configuration: combine this element with other SL7 components such as bases, acoustic modules, and additional light elements to build a customized signal tower. Screw terminals provide secure wiring.
