ELFON OPTIMA OP-LPMv2-G Módulo de listas de residentes

Manage up to 255 residents with a backlit 2x16 LCD display and quick name or apartment search in the ELFON OPTIMA system.

Overview

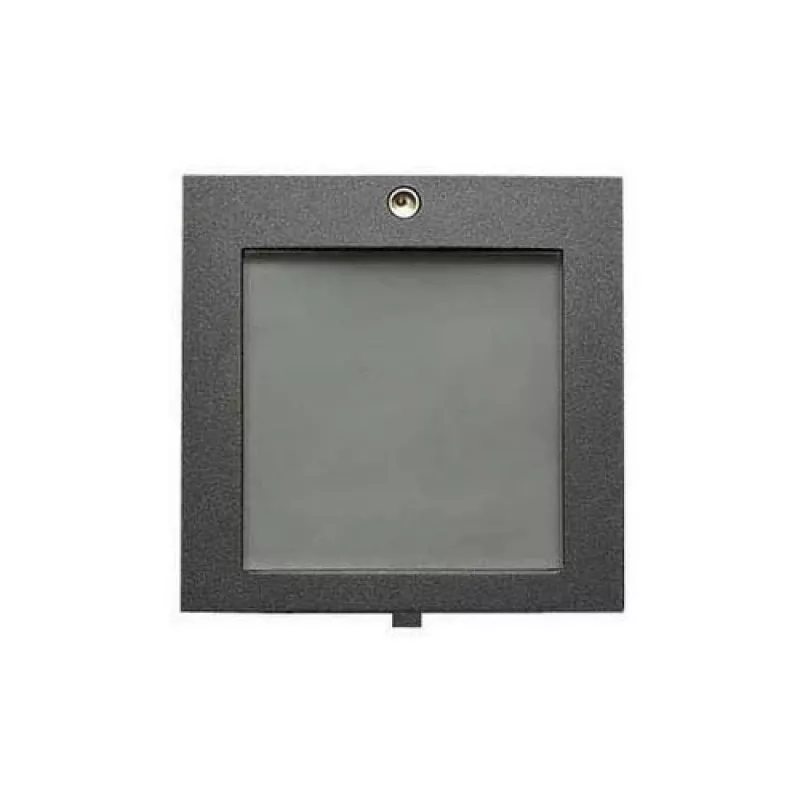

The ELFON OPTIMA OP-LPMv2-G is a tenant list module designed for seamless integration into ELFON OPTIMA digital intercom systems. It provides a clear, backlit LCD display showing two lines of 16 characters, enabling residents and visitors to browse a directory of up to 255 tenant entries. Search by name or apartment number ensures fast access, while programming can be done directly from the main panel or via the OPTIMA PC software. The module is powered by 12V DC from the main panel and communicates over a proprietary digital bus, ensuring reliable operation in multi-apartment buildings and residential complexes.

What stands out

• Supports up to 255 tenant entries for large residential buildings
• Backlit LCD display (2 lines x 16 characters) for clear visibility in low light
• Search by name or apartment number for quick directory navigation
• Flexible programming via main panel or OPTIMA PC software
• Durable metal front panel in silver/grey, suitable for high-traffic areas
• Wide operating temperature range (-20°C to +50°C) for outdoor installations

Technical details

• Product Type: Tenant List Module
• System Compatibility: ELFON OPTIMA Digital Intercom Systems
• Display Type: LCD, 2 lines x 16 characters, with backlight
• Max. Tenant Entries: 255
• Search Functionality: By name or apartment number
• Programming Method: Via main panel or PC software (OPTIMA PC)
• Communication Protocol: Digital bus (proprietary ELFON)
• Power Supply: 12V DC (from main panel)
• Installation Type: Integrated module for ELFON OPTIMA panels
• Front Panel Material: Durable metal (e.g., Stainless Steel)
• Color: Silver/Grey
• Operating Temperature: -20°C to +50°C
• Operating Humidity: Up to 90% non-condensing
• Application: Multi-apartment buildings, residential complexes
• Function: Resident directory and direct call initiation
• Product Series: OPTIMA

Our verdict

The ELFON OPTIMA OP-LPMv2-G is a robust and user-friendly tenant list module that enhances the functionality of ELFON OPTIMA intercom systems. Its high capacity, clear display, and flexible programming make it an excellent choice for property managers and installers seeking reliable resident directory solutions.
