Monitor 2294L 21,5 pulgadas FHD LCD WVA

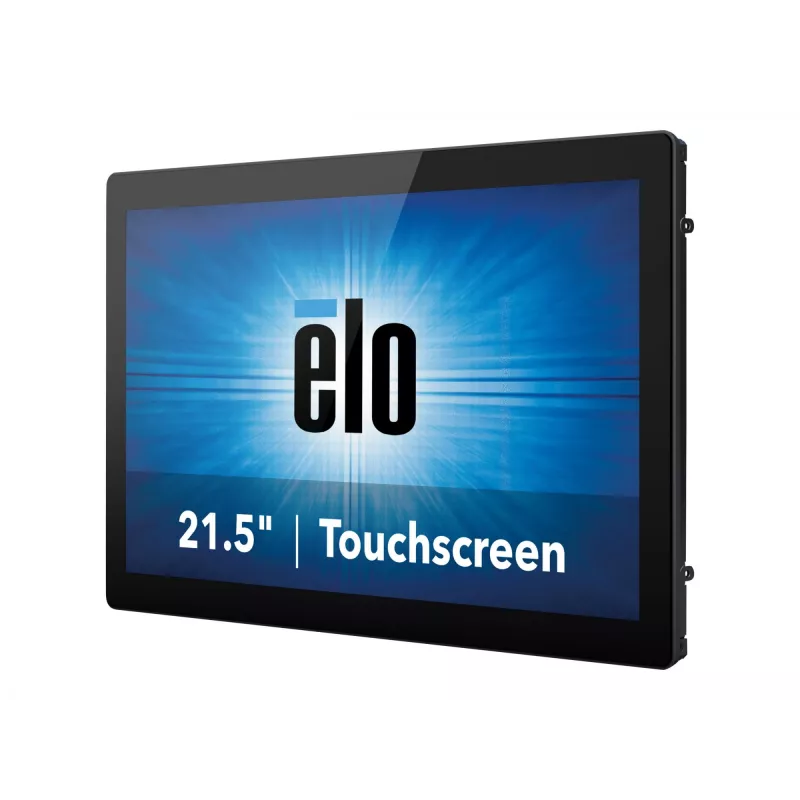

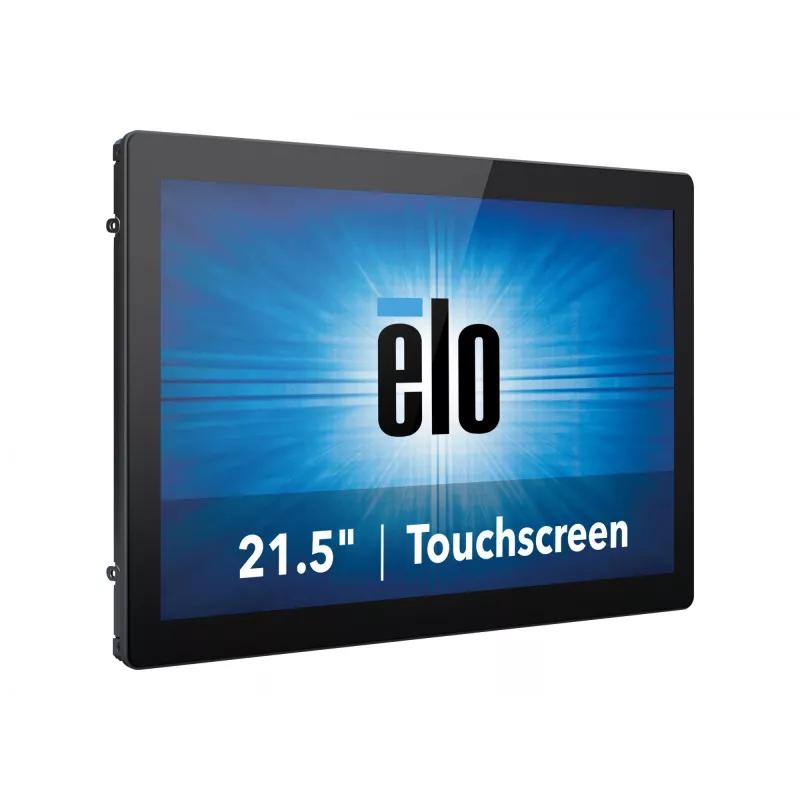

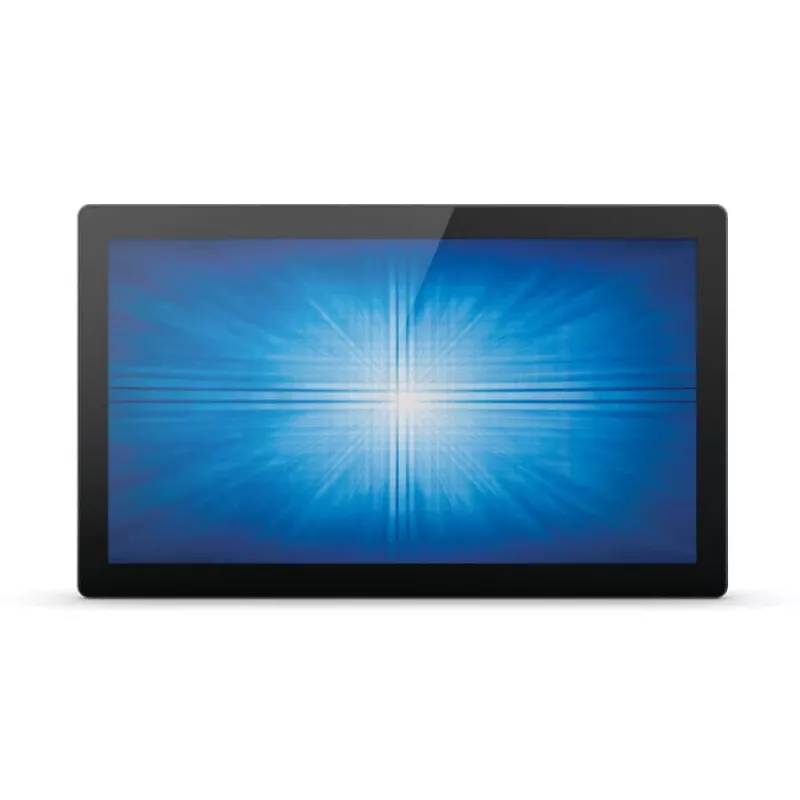

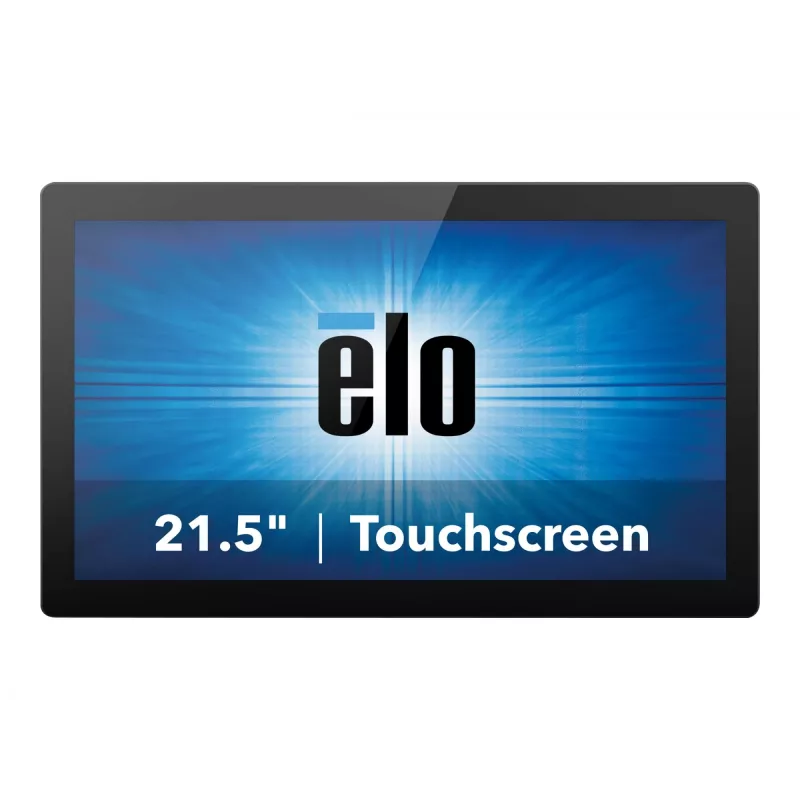

The Elo 2294L 21.5-inch open-frame LCD touchscreen is a commercial-grade, touch-ready display with a 1920 x 1080 Full HD WVA panel and a zero-bezel design. The display uses an energy-efficient LED backlight to reduce power consumption and heat generation, and offers wide viewing angles, high light transmission and stable, drift-free touch performance. It includes HDMI and VGA inputs and USB connectivity, supports VESA mounting and arrives without an external power brick.

Advantages

The 2294L combines proven Elo touch expertise with a compact, slim housing that simplifies integration. Its front panel can be sealed against dirt, dust and liquids (PCAP units can achieve an IP65 front rating), and Elo controls design and tooling to help ensure long-term availability and backwards compatibility. Multiple touch technologies are available — including IntelliTouch® surface acoustic wave (single- and dual-touch) and TouchPro™ projected capacitive (PCAP) two-glass multi-touch (10-touch tablet-like and 2-touch thru-glass modes) — delivering accurate responses, support for gloves and durable commercial operation backed by a three-year standard warranty.

Suitable for

• Kiosk and self-service terminals
• Retail point-of-sale and customer-facing displays
• Casino and amusement installations
• Industrial automation and operator interfaces

Key specifications

• Display diagonal: 21.5"
• Resolution: 1920 x 1080 (Full HD)
• Panel type: WVA LCD with LED backlight
• Aspect ratio: 16:9
• Response time: 14 ms
• Contrast ratio (typical): 1000:1
• Zero-bezel open-frame design; VESA mounting supported
• Inputs: HDMI, VGA; USB connectivity for touch
• Colour: Black
• MPN: E330620; EAN: 0815335025983

How to use

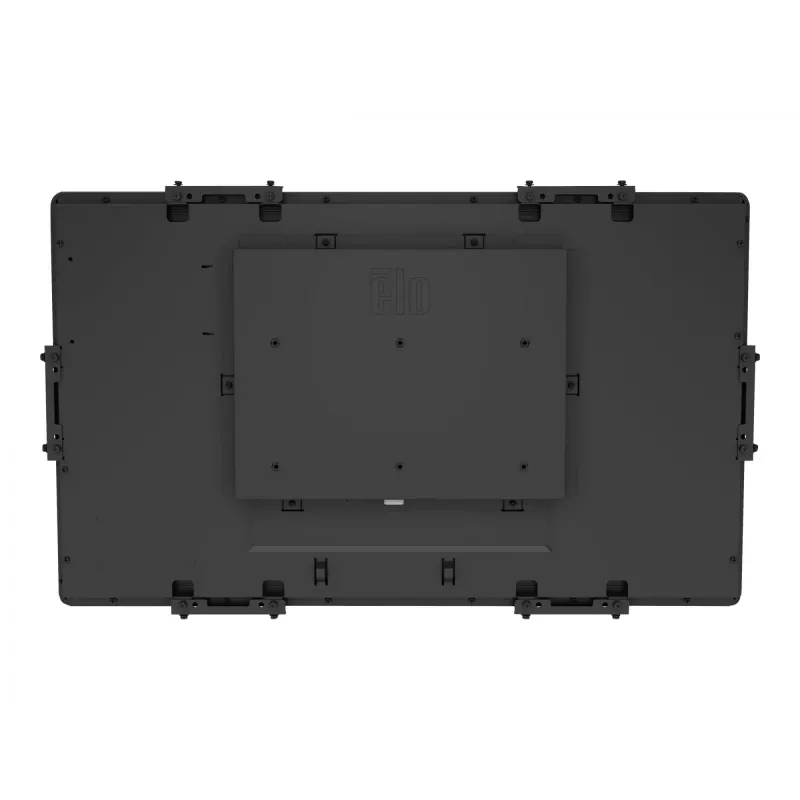

Mount the 2294L using the supported VESA pattern inside your enclosure or kiosk. Connect video via HDMI or VGA and plug the USB cable to the host to enable touch. Choose the touch technology option required for your application (SAW or PCAP) before installation; projected capacitive units allow front-side sealing to IP65 where required. No external power brick is included — connect the unit to the appropriate integrated power supply in your enclosure following Elo installation guidelines. Calibrate the touch if prompted by the host system and verify correct operation across the full screen area.

Recommendations

For long-term reliability, use Elo-certified mounting and cabling, keep vents clear of debris, and select the touch technology (IntelliTouch® or TouchPro™ PCAP) that matches environmental and glove-use requirements. Regularly verify touch calibration and follow Elo’s maintenance instructions to maintain warranty coverage.
