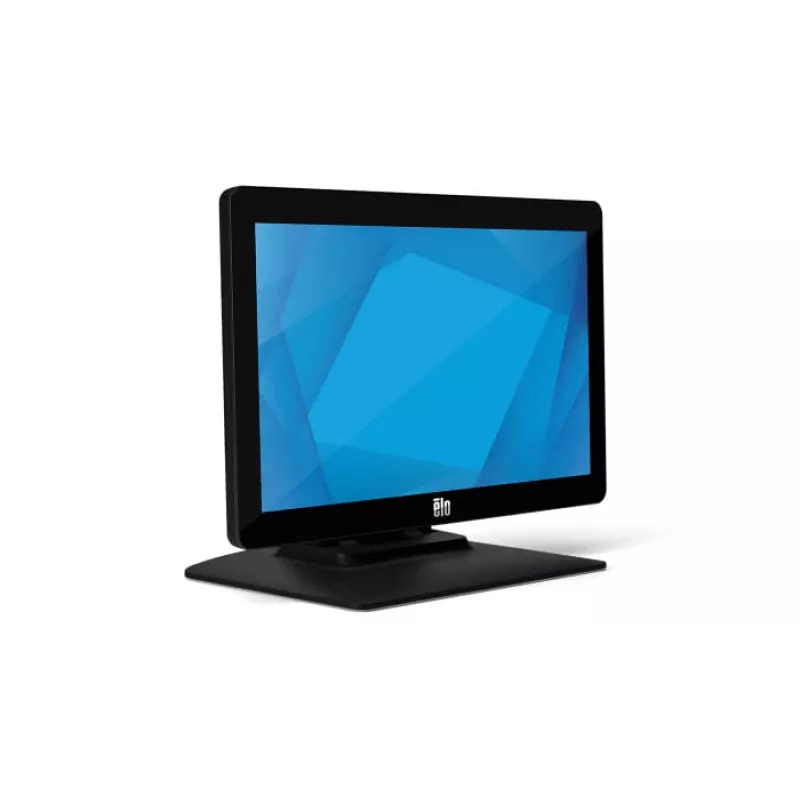

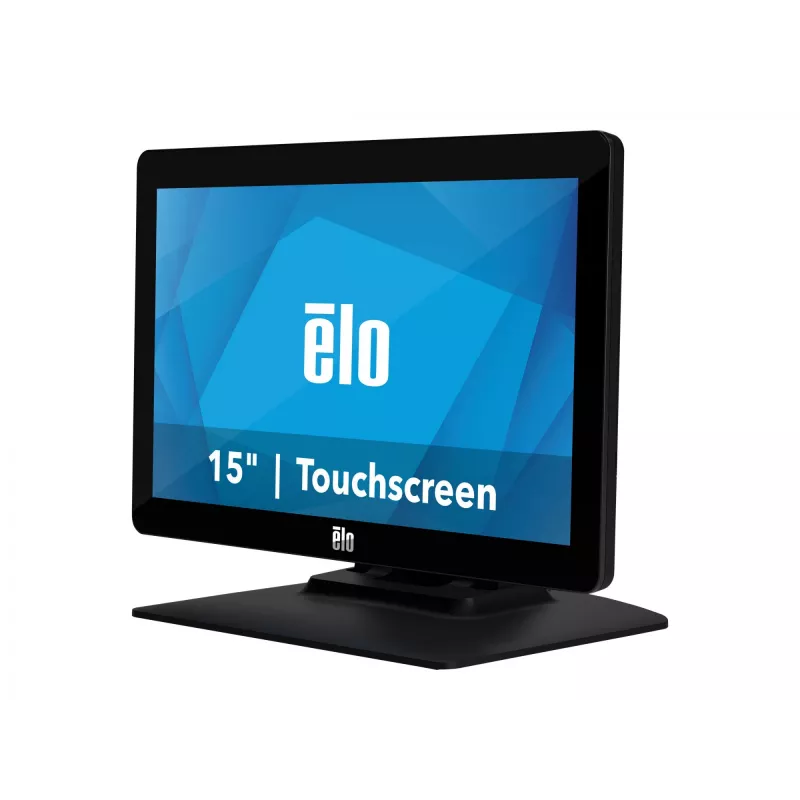

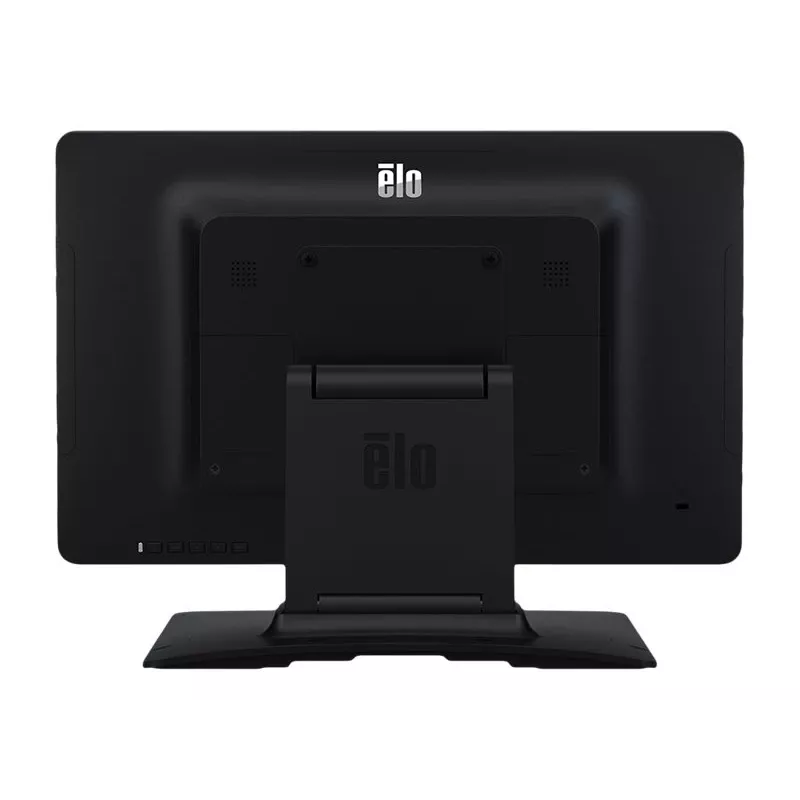

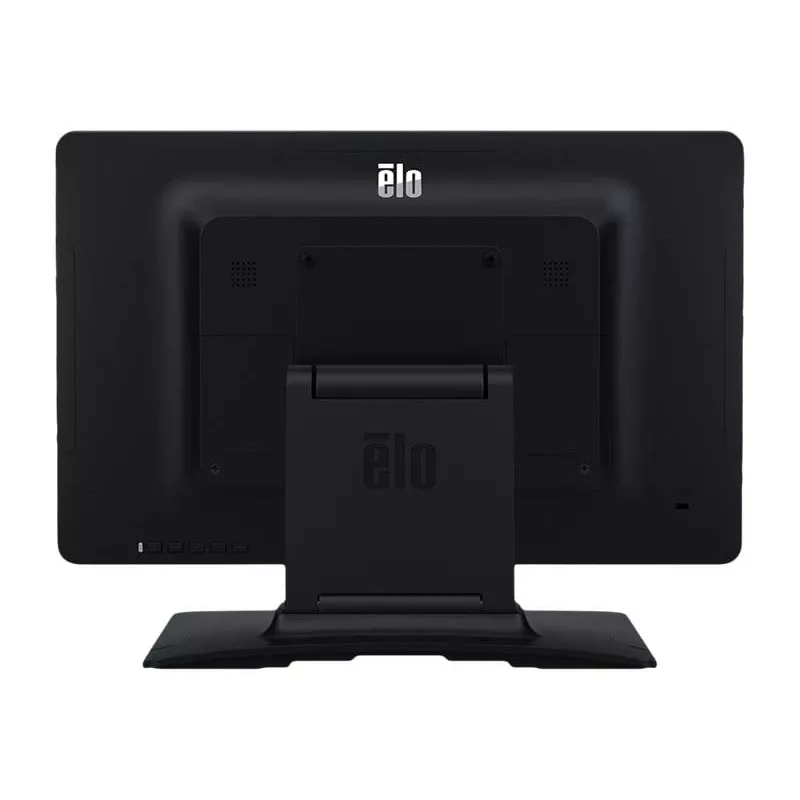

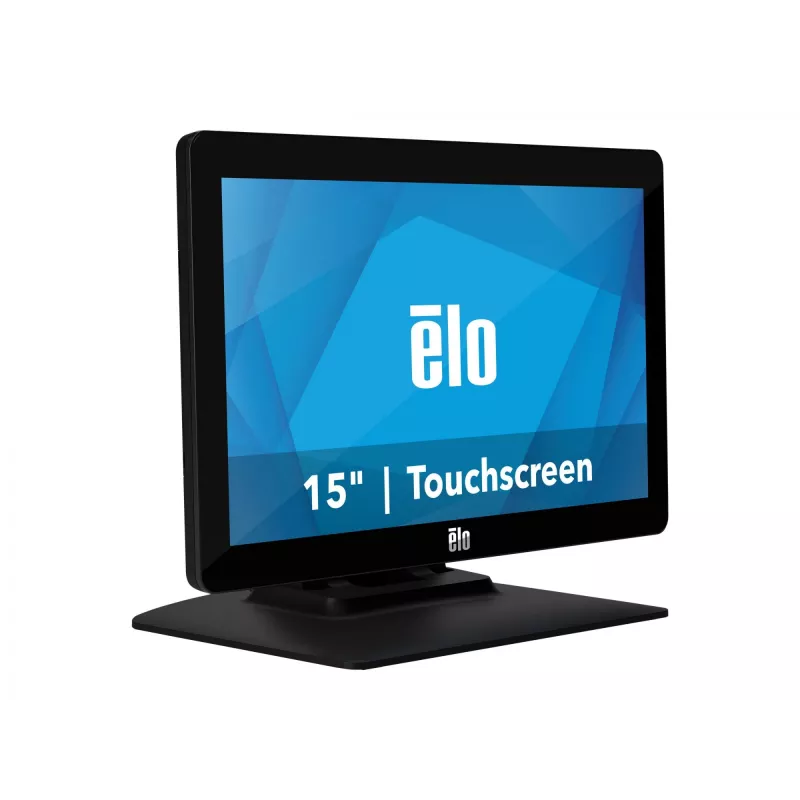

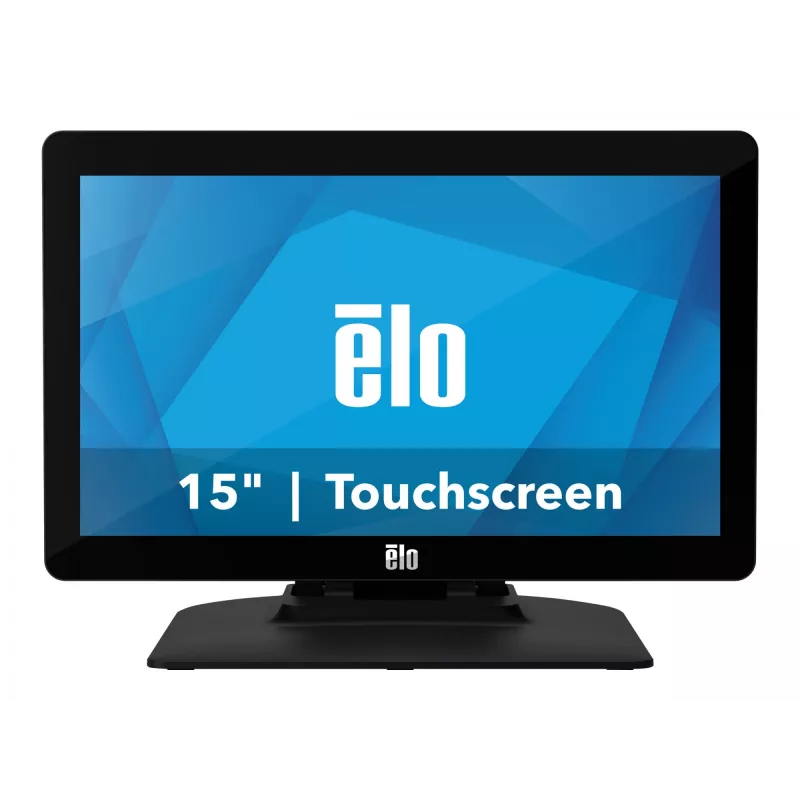

Monitor Elotouch Elo Touch Solution E155645 15,6 inch LED 1920 x 1080

The Elo 1502L Touchscreen Monitor is a 15.6" LED Full HD (1920 x 1080) display designed for point-of-sale, self-service, signage and hospitality environments. With a compact, flat black enclosure and touchscreen capability, it supports versatile installations as a traditional POS terminal, a customer-facing display, or a combined solution. The monitor includes VESA mounting, built-in speakers and multiple video and touch connectivity options for easy integration into retail and hospitality workflows.

Advantages

The monitor provides a single-cable USB Type-C option that carries touch, video and power, reducing installation complexity. If USB-C is not available, HDMI or VGA connections are supported. Elo Edge Connect™ enables attaching up to four peripherals at the display edge for customization, and the compact design supports a variety of mounts and enclosures for flexible placement.

Suitable for

• Retail point-of-sale terminals
• Customer-facing displays at checkout
• Self-service kiosks and ordering stations
• Digital signage and promotional displays
• Hospitality check-in and guest-service terminals

Key specifications

• Display diagonal: 15.6"
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TFT, LED backlight
• Response time: 30 ms
• Contrast ratio (typical): 700:1
• Screen shape: Flat
• VESA mounting: Yes
• Built-in speaker(s): Yes
• Connectivity: USB Type-C (touch, video, power), HDMI, VGA
• Colour: Black

How to use

Place the Elo 1502L on a compatible stand or mount it using the VESA interface. Connect the monitor to a host system using a USB Type-C cable to provide video, touch and power through a single connection; alternatively use HDMI or VGA for video and a separate USB connection for touch if required. Attach peripherals via Elo Edge Connect™ as needed. Adjust display settings from the host or on-screen controls to match the environment and application.

Recommendations

Use USB Type-C when possible to simplify cabling and enable single-cable power and touch. Select mounting options (stand, pole, shelf, wall or kiosk enclosure) based on customer interaction flow. Keep firmware and drivers for touch and peripherals up to date for reliable performance.
