ELOAD TIETOSET Cargador para vehículo eléctrico 1x16A 3.7kW Type 2 cable 5m

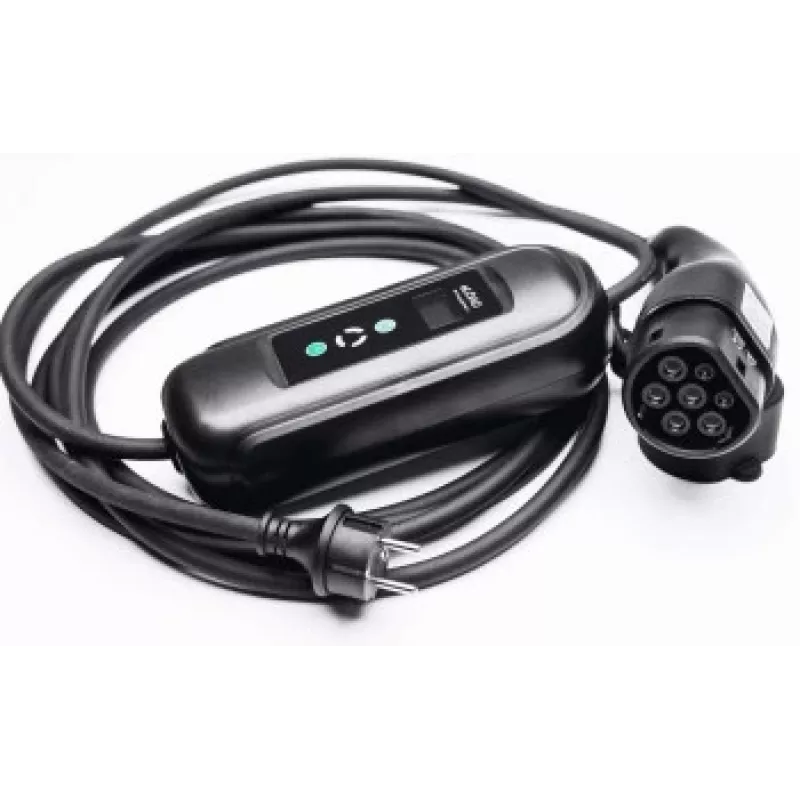

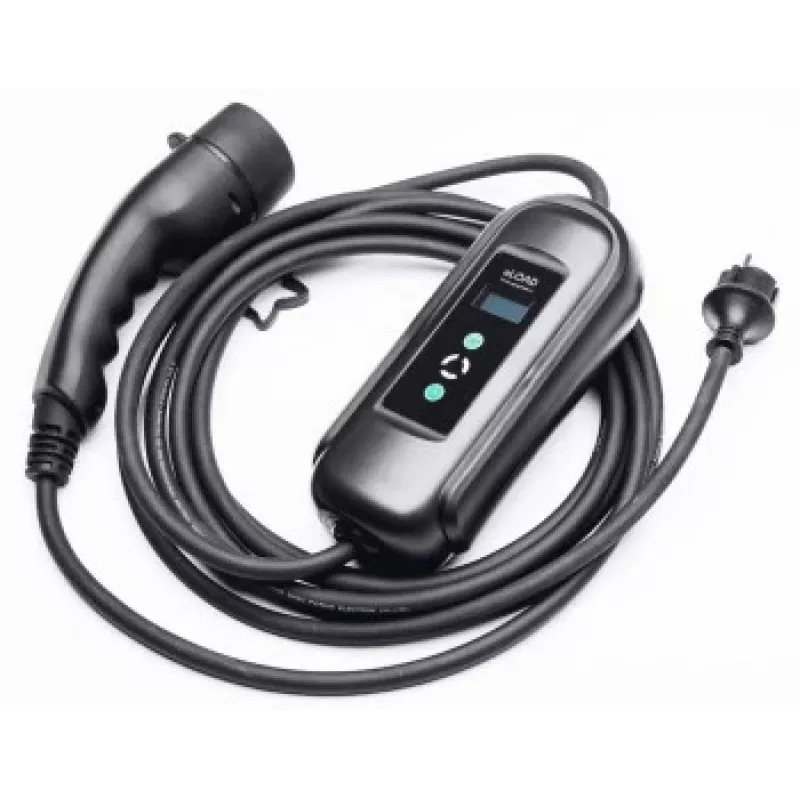

The ELOAD TIETOSET EV Charger is a reliable and efficient 1-phase electric vehicle charging station designed for residential and commercial use. With a charging power of 3.7 kW and a current of 16 A, it provides a safe and convenient charging solution for electric vehicles. The charger features a fixed 5-meter Type 2 cable, wall-mounted design, and IP54 protection, making it suitable for indoor and outdoor installations.

Advantages

This charger offers plug-and-charge functionality, eliminating the need for authentication. It includes integrated DC 6mA fault current detection and multiple safety protections (overcurrent, overvoltage, undervoltage, short circuit, earth leakage, over-temperature). The LED status indicators provide clear charging status at a glance.

Suitable for

• Home garages and carports
• Workplace parking areas
• Commercial parking lots
• Residential complexes

Key specifications

• Charging Power: 3.7 kW
• Charging Current: 16 A
• Phases: 1-Phase
• Input Voltage: 230 V AC
• Frequency: 50 Hz
• Output Connector: Type 2 (IEC 62196-2)
• Cable Length: 5 meters (fixed)
• Mounting: Wall-mounted
• IP Rating: IP54
• RCD: Integrated DC 6mA fault current detection
• Housing Material: PC/ABS plastic
• Operating Temperature: -25°C to +50°C
• User Interface: LED status indicators
• Safety Features: Overcurrent, Overvoltage, Undervoltage, Short Circuit, Earth Leakage, Over-temperature Protection
• Certification: CE
• Energy Metering: No
• Communication: None (basic charger)
• Authentication: Plug & Charge

Recommendations

For optimal performance, ensure the charger is installed by a qualified electrician. Compatible with all electric vehicles equipped with a Type 2 inlet. Suitable for use in moderate climates with protection from direct water jets.
