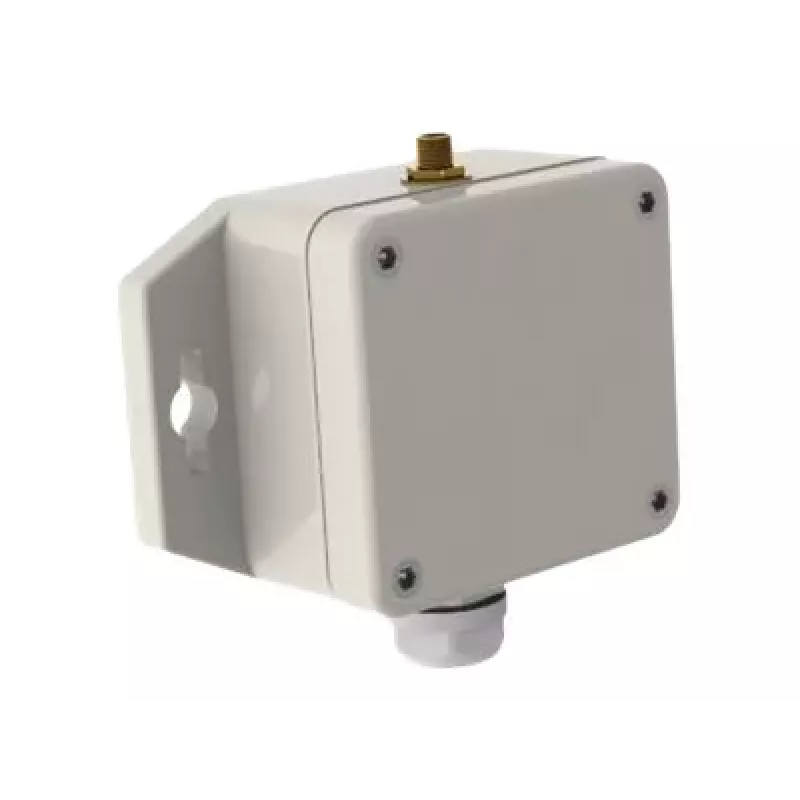

ELSYS ELT-2 Sensor exterior LoRaWAN analógico entrada 0-10V (sin antena)

The ELSYS ELT-2HP is a robust outdoor LoRaWAN sensor designed for reading analog 0-10V DC signals. It is ideal for monitoring various industrial sensors, such as pressure, level, or flow transmitters, in harsh environments. With an IP67 rating and long battery life, it ensures reliable data transmission over long distances via LoRaWAN networks.

Advantages

• IP67 waterproof and dustproof housing for outdoor use
• Ultra-low power consumption with up to 10 years battery life
• 12-bit resolution for precise analog measurements
• Easy configuration via NFC or LoRaWAN downlink
• Secure AES128 encryption

Suitable for

• Industrial automation and process monitoring
• Smart agriculture and environmental monitoring
• Building management systems
• Remote asset tracking

Key specifications

• Wireless Technology: LoRaWAN Class A
• Input Signal: 0-10V DC Analog
• Antenna: External (not included)
• Battery: 2 x 3.6V AA Lithium (Li-SOCl2)
• Operating Temperature: -30°C to +70°C
• Dimensions: 93 x 93 x 28 mm
• Weight: 100 g

Recommendations

For optimal performance, use a compatible LoRaWAN gateway and ensure the antenna is properly connected. The sensor is region-specific; select the appropriate frequency band (e.g., EU868, US915).
