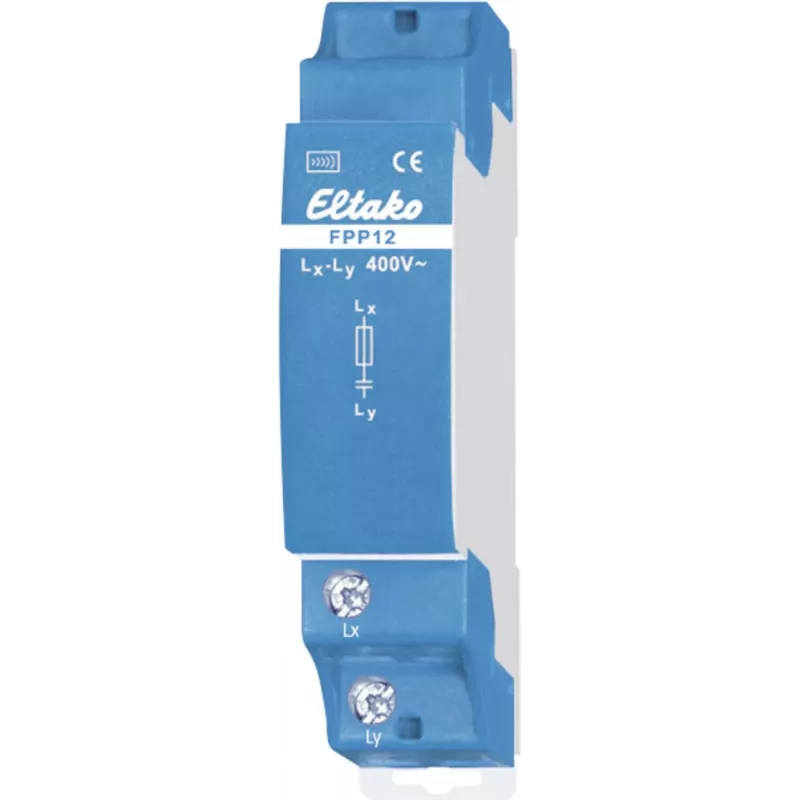

ELTAKO FPP12 Acoplador de fase Powernet inalámbrico EnOcean 30000051

The ELTAKO FPP12 Wireless Powernet Phase Coupler is a specialized device engineered to bridge EnOcean radio signals across all three phases of a 230V AC power network. Operating at 868.3 MHz in accordance with ISO/IEC 14543-3-10, it ensures reliable communication between EnOcean wireless sensors and actuators even in large buildings with three-phase installations. With a maximum power consumption of just 0.5W, it is an energy-efficient solution for enhancing the range and stability of EnOcean-based smart home and building automation systems.

Advantages

By coupling the phases, the FPP12 eliminates signal gaps that can occur when EnOcean devices are connected to different phases. This results in a more robust and responsive automation network, reducing the need for additional repeaters. Its compact design allows for flush-mounted installation in standard junction boxes, making it ideal for both new constructions and retrofits. The device is maintenance-free and operates silently, with no moving parts.

Suitable for

• EnOcean-based smart home systems with three-phase power supply
• Commercial buildings requiring reliable wireless sensor networks
• Installations where EnOcean devices are distributed across multiple phases
• Retrofit projects needing improved radio coverage without additional wiring

Key specifications

• Wireless technology: EnOcean (ISO/IEC 14543-3-10)
• Operating frequency: 868.3 MHz
• Power supply: 230V AC, 50 Hz
• Power consumption: max. 0.5W
• Installation: flush-mounted in junction box
• Connection: 3-wire (L, N, PE)
• Housing material: thermoplastic
• Protection class: IP20
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +70°C
• Relative humidity: 0% to 95% (non-condensing)
• Manufacturer article number: 30000051

Recommendations

For optimal performance, install the phase coupler in a central location near the distribution board. Ensure that all phases are properly connected and that the device is protected from moisture and dust. Pair with ELTAKO EnOcean actuators and sensors for a seamless smart home experience.
