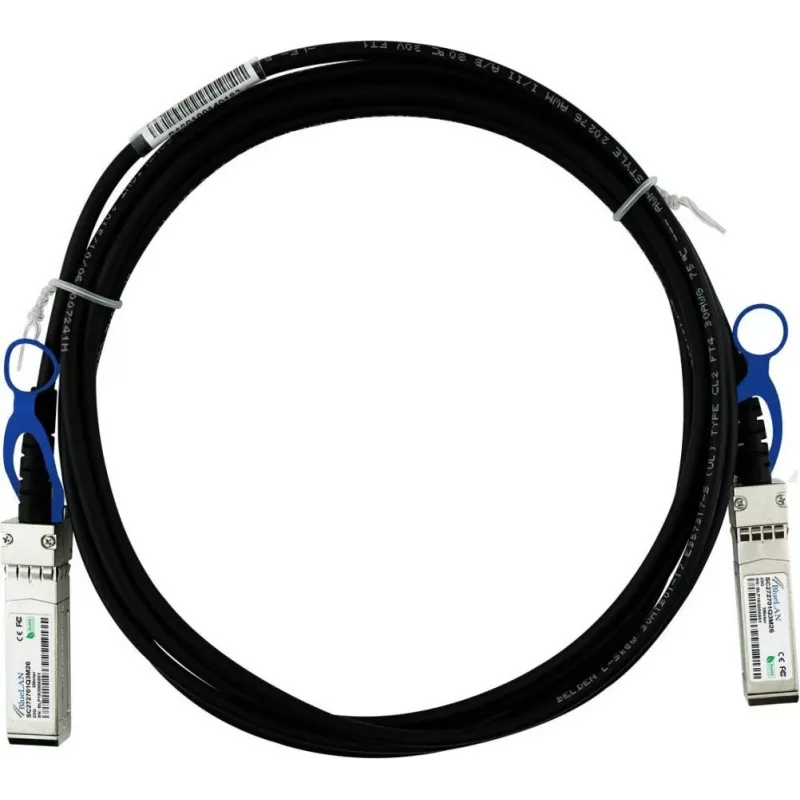

BlueLAN Cable Direct Attach SFP28 a SFP28 25GBASE-CR pasivo compatible con NVIDIA 980-9I63J-00A001, 1 metro, AWG30

The BlueLAN 980-9I63J-00A001-BL is a high-performance passive copper Direct Attach Cable (DAC) designed for 25GBASE-CR Ethernet applications. This SFP28 to SFP28 cable provides a cost-effective and reliable interconnect solution for data centers, server-to-switch connections, and rack interconnects. With a length of 1 meter and AWG30 wire gauge, it ensures low latency and minimal power consumption.

Advantages

This passive DAC cable offers a plug-and-play solution without the need for external power, reducing overall system power consumption. It is fully compatible with NVIDIA 980-9I63J-00A001 equipment and delivers 25 Gbps data rates over a passive copper medium, ensuring high-speed data transmission with low signal loss.

Suitable for

• Data center networking
• Server-to-switch connections
• Rack interconnect within a rack
• High-performance computing environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 1 Meter (3.3 feet)
• Wire Gauge (AWG): 30
• Compatibility: NVIDIA 980-9I63J-00A001
• Protocol Support: Ethernet
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Power Consumption: < 0.1W (Passive)
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible SFP28 ports. This cable is ideal for short-distance interconnects within a rack or between adjacent racks in a data center.
