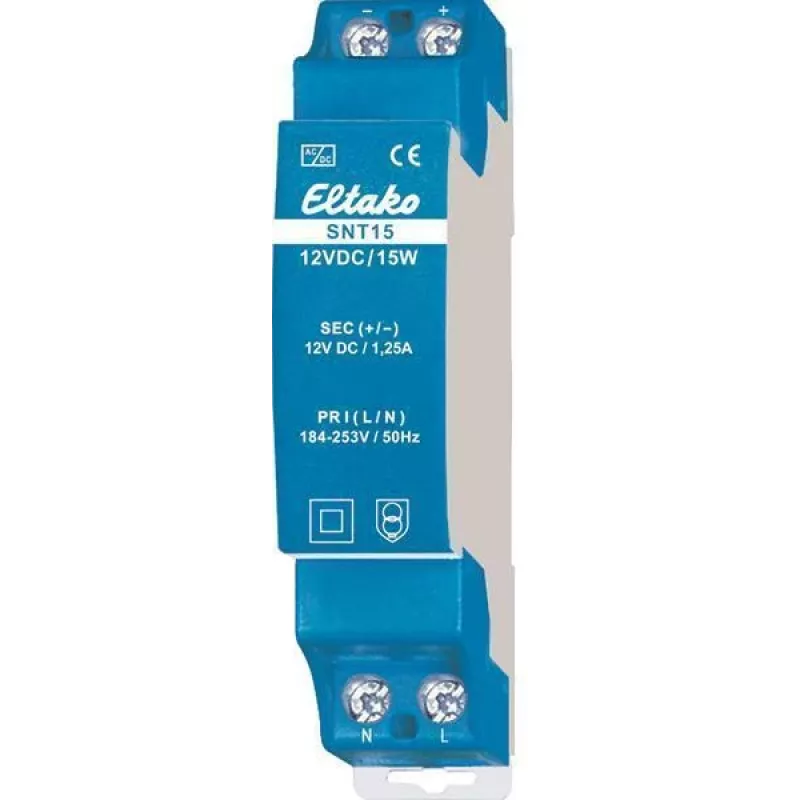

Eltako SNT15-12VDC/15W Fuente de alimentación para carril DIN 12V DC 1,25A 20000166

Compact DIN rail power supply delivering 15W at 12V DC with 1.25A output current, accepting universal AC input from 85 to 264V.

Overview

The Eltako SNT15-12VDC/15W is a switched-mode power supply unit designed for mounting on standard TS35 DIN rails. It converts AC mains voltage to regulated 12V DC, making it suitable for powering low-voltage devices in control cabinets and distribution boards.

What stands out

• Wide input voltage range: 85–264V AC, 47–63Hz
• High efficiency: >80%
• Low standby power consumption: <0.3W
• Overload and short circuit protection
• Low ripple and noise: <100 mVp-p
• Operating temperature: -20°C to +50°C

Technical details

• Output voltage: 12V DC
• Output current: 1.25A
• Output power: 15W
• Connection: screw terminals
• Housing material: plastic
• Protection class: IP20

Our verdict

A reliable and efficient DIN rail power supply with universal input and essential protections, ideal for building automation and industrial control applications.
