MEAN WELL RT-65C fuente de alimentación conmutada de triple salida 65W 5V 8A 12V 2,5A -12V 0,5A

In industrial control cabinets and automation systems, the MEAN WELL RT-65C delivers reliable triple-output DC power from a universal AC input. This 65W enclosed switching power supply provides +5V at up to 8A, +12V at up to 2.5A, and -12V at up to 0.5A, making it ideal for powering logic circuits, motors, sensors, and communication modules simultaneously.

Key specifications

• Output power: 65 W total, triple output
• Output 1: +5 V DC, 0-8 A
• Output 2: +12 V DC, 0-2.5 A
• Output 3: -12 V DC, 0-0.5 A
• Input voltage: 88-264 VAC or 125-373 VDC
• Efficiency: 78%
• Protections: short circuit, overload, over voltage
• Cooling: free air convection
• Operating temperature: -20 to +70 °C
• Safety standards: UL60950-1, TUV EN60950-1, CB, CE

Why choose it

The RT-65C combines three isolated outputs in a compact chassis-mount package, reducing component count and wiring complexity. Its universal input range allows operation from any mains voltage worldwide, while the built-in protections ensure long-term reliability in demanding environments. With an MTBF exceeding 200,000 hours, this power supply is a cost-effective solution for multi-voltage applications.

Ideal use cases

• Industrial automation and control systems
• Test and measurement equipment
• Telecommunication devices
• LED lighting and displays
• General electronic projects requiring multiple DC rails

Good to know

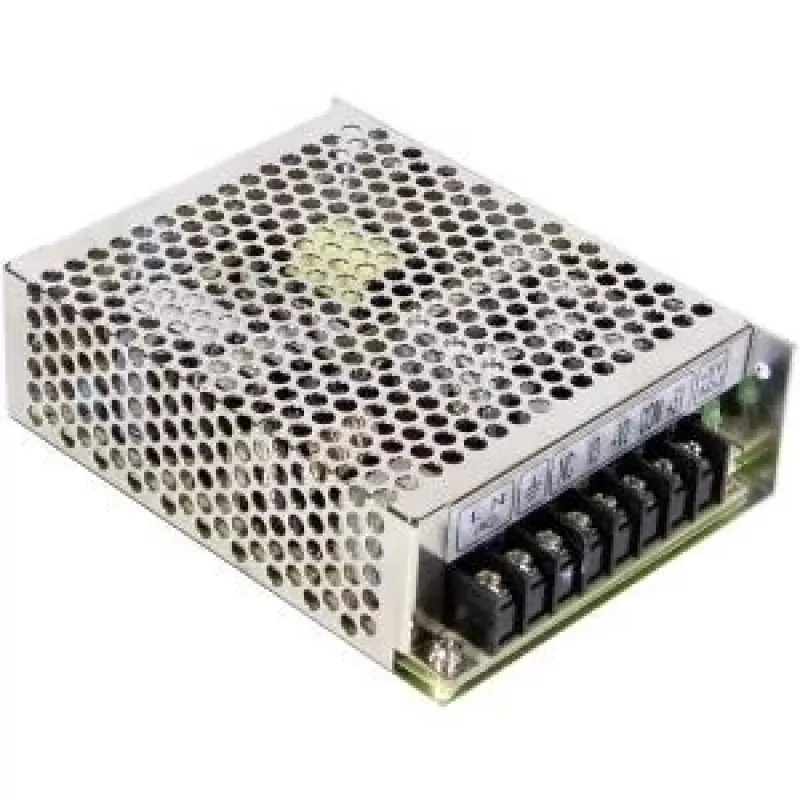

The RT-65C features screw terminal connections for secure wiring and a perforated metal enclosure for heat dissipation. It is designed for chassis mounting and operates silently without a fan. Note that the total combined output power must not exceed 65W, with the +5V and +12V channels sharing a common ground while the -12V channel is isolated.
