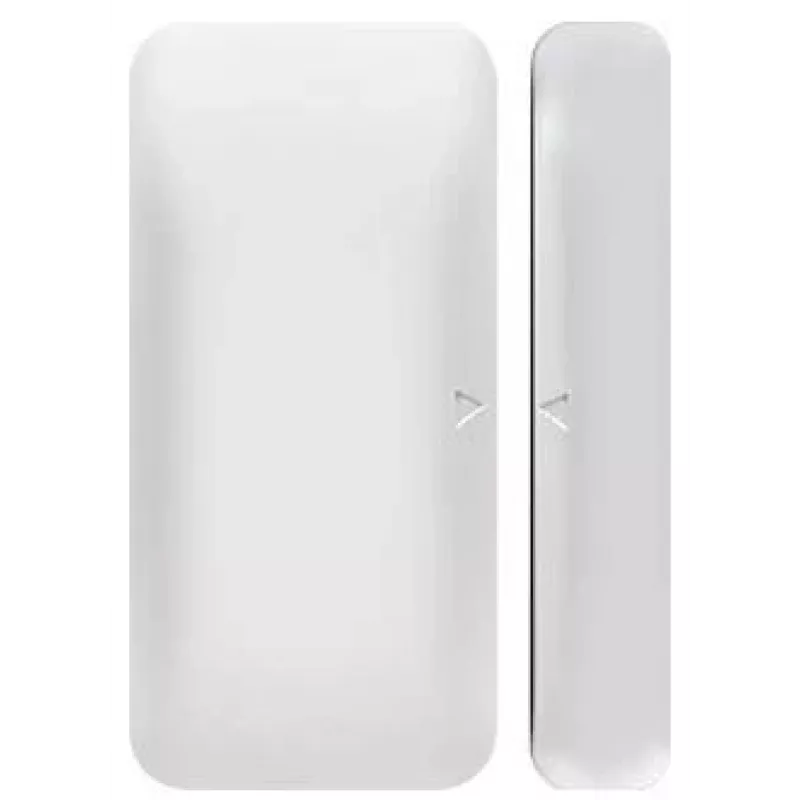

ENGO Controls EDOOR-MINI Sensor mini de puerta/ventana, ZigBee 3.0, blanco

The ENGO Controls EDOOR-MINI is a compact magnetic contact sensor designed for detecting the opening and closing of doors, windows, drawers, and cabinets. It utilizes ZigBee 3.0 wireless technology for seamless integration with smart home systems such as Tuya, SmartThings, and Home Assistant. The sensor is powered by a CR2032 battery with a typical lifespan of up to 2 years and features a low battery alert. Its miniature size and adhesive tape mounting make it ideal for discreet installation in any room.

Advantages

Compact design fits tight spaces; reliable ZigBee 3.0 connectivity; easy installation with included adhesive tape; long battery life; low battery notification ensures timely replacement.

Suitable for

• Monitoring doors and windows for security or automation
• Detecting opening of drawers and cabinets
• Integrating with ZigBee 3.0 smart home hubs

Key specifications

• Connectivity: ZigBee 3.0 (IEEE 802.15.4)
• Detection: Magnetic contact
• Power: 1x CR2032 battery (included)
• Battery life: Up to 2 years (typical)
• Operating temperature: -10°C to +50°C
• Wireless range: Up to 30 m (indoor, line of sight)
• Material: ABS plastic
• Colour: White
• Main unit dimensions: 40 x 25 x 11 mm
• Magnet unit dimensions: 25 x 10 x 10 mm

Recommendations

For best performance, mount the sensor on a clean, dry surface and ensure the magnet aligns with the sensor body. Pair with a compatible ZigBee 3.0 gateway for remote monitoring and automation.
