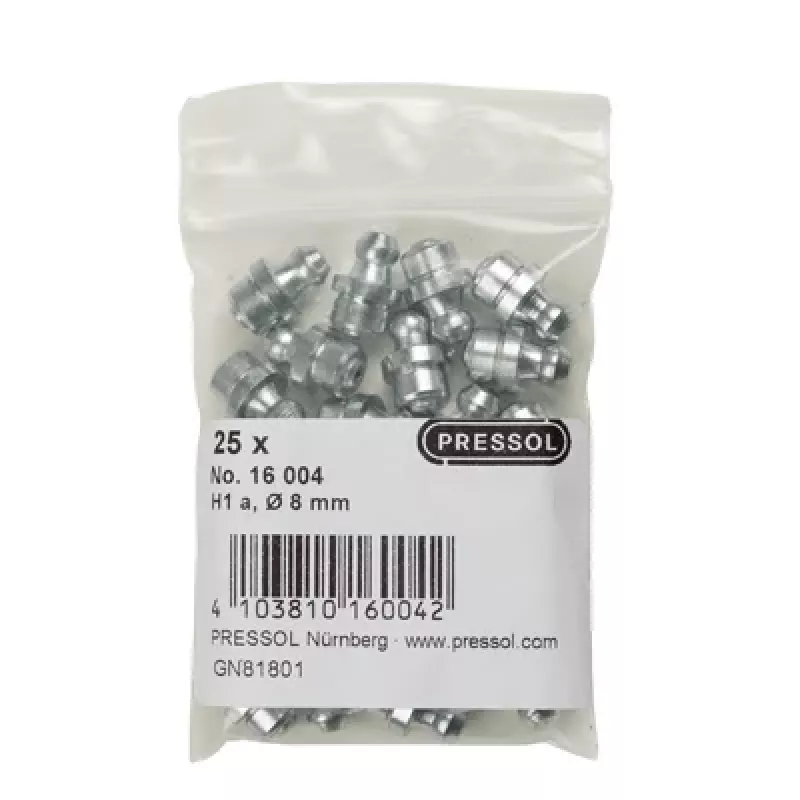

Engrasador cónico H1 recto Pressol M8 x 1, Ø 8 mm, acero galvanizado, 25 uds. (16 004)

Maintenance technicians and workshop professionals rely on these conical grease nipples for reliable lubrication of bearings, joints, and moving parts on machinery, vehicles, and industrial equipment. The H1 straight design with M8 x 1 thread and 8 mm head diameter fits standard grease gun couplers, ensuring a secure connection during service.

Key specifications

• Type: Conical grease nipple, straight (A-gerade)
• Thread: M8 x 1
• Standard: DIN 71412 H1
• Material: Steel, zinc-plated
• Pack quantity: 25 pieces
• Wrench size: 9 mm
• Overall length: 14.5 mm
• Thread length: 5 mm
• Head diameter: 6.5 mm
• Max. operating pressure: 400 bar
• Operating temperature: -30°C to +100°C

Why choose it

The zinc-plated steel construction provides corrosion resistance, extending service life in demanding environments. The ball valve design prevents dirt ingress and ensures clean, precise lubrication. Supplied in a pack of 25, these nipples offer a cost-effective solution for routine maintenance and replacement.

Ideal use cases

• Lubrication points on agricultural and construction machinery
• Industrial equipment and conveyor systems
• Automotive chassis and suspension components
• General maintenance in workshops and service centers

Good to know

These grease nipples conform to DIN 71412 H1, ensuring compatibility with standard grease gun couplers. Installation is straightforward using a 9 mm wrench.
