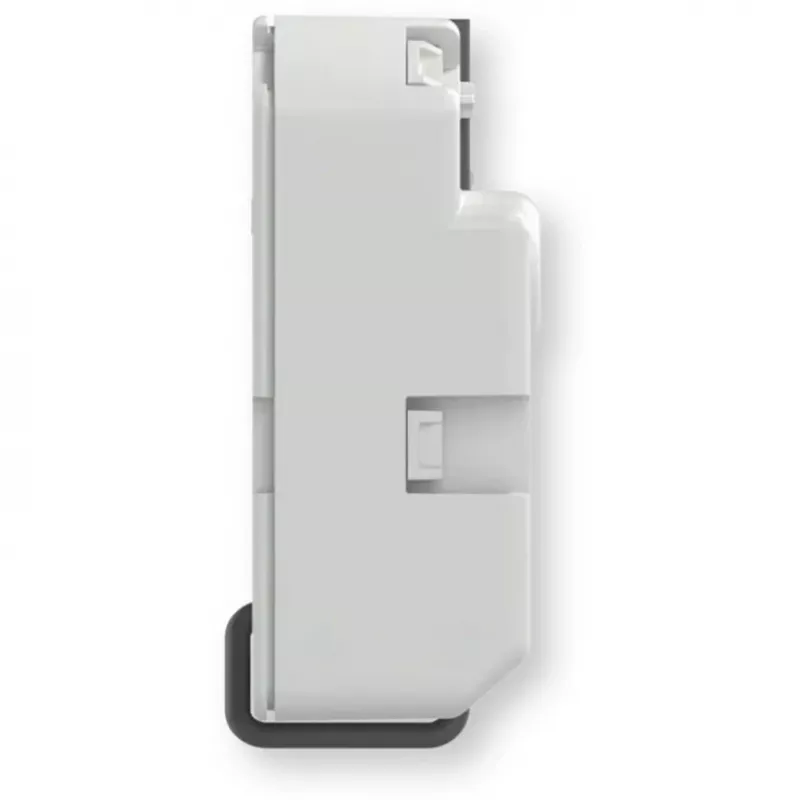

Homematic IP actuador de conmutación empotrable 6A

Unlike conventional smart plugs that occupy a wall socket, the Homematic IP Flush-Mount Switching Actuator disappears behind a standard switch, turning existing installations into smart, app-controlled circuits. Its 6 A relay handles lighting and small appliances with ease, while integrated energy monitoring and overload protection set it apart from basic actuators.

Highlights

• Flush-mount design fits in standard 60 mm wall boxes, preserving room aesthetics
• Switches up to 6 A resistive loads (e.g., LED lamps, motors up to 230 W)
• Measures energy consumption in real time for connected loads
• Built-in overload protection safeguards the relay and wiring
• Compatible with Homematic IP Access Point and CCU3 for local or cloud control
• Optional connection of external push-button or switch for manual override

In daily use

Installation is straightforward: connect live and neutral, then pair with the Homematic IP app. Once integrated, you can switch the circuit remotely, set schedules, or create scenes with other Homematic IP devices. The actuator reports current power draw and cumulative energy, helping you identify consumption patterns. A connected push-button allows direct on-site control without a smartphone.

Full specifications

• Supply voltage: 230 V AC, 50 Hz
• Max. switching current: 6 A (resistive load)
• Max. switching power: 1380 W (resistive load)
• Standby power consumption: 0.2 W
• Radio frequency: 868.0–868.6 MHz / 869.4–869.65 MHz
• Radio range: up to 400 m in free field
• Protection class: IP20
• Ambient temperature: 0 to 35 °C
• Mounting depth: approx. 33 mm
• Required conductors: live (L) and neutral (N)
• Switching type: high-quality relay
• Control options: Homematic IP app, remote control, voice control (via gateway)

Final note

For a discreet, energy-aware upgrade to existing wiring, this actuator delivers reliable switching and valuable consumption data without compromising your interior design.
