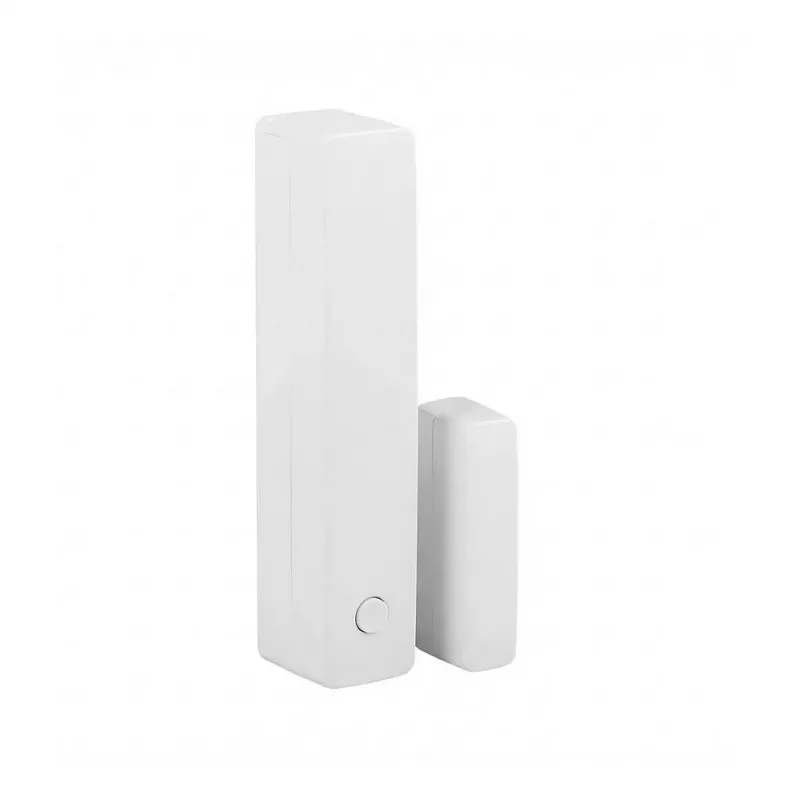

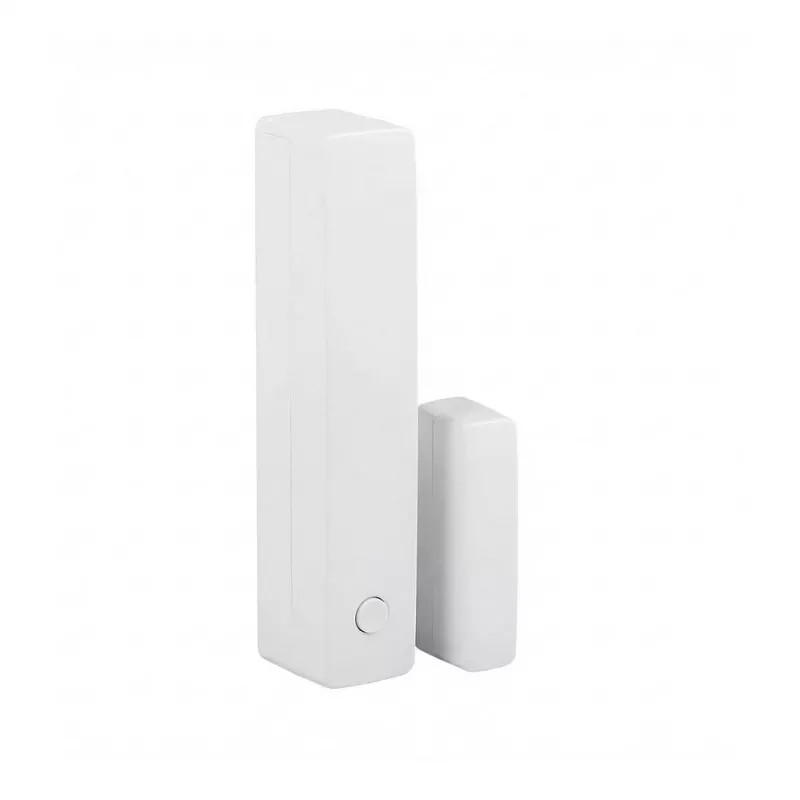

EQ-3 Homematic IP contacto de ventana y puerta con imán pack de 5

The EQ-3 Homematic IP Window and Door Contact with Magnet 5-Pack is a comprehensive set of five wireless magnetic sensors designed for reliable and intelligent monitoring of windows and doors in your smart home. Each sensor detects open/close status and integrates seamlessly into the Homematic IP ecosystem, providing enhanced security and automation capabilities.

Advantages

With this 5-pack, you can equip multiple entry points at once, ensuring consistent protection and convenience. The sensors feature tamper protection, low battery warning, and sabotage detection for added security. Easy adhesive or screw mounting allows for quick installation without professional help.

Suitable for

• Monitoring windows and doors in residential and small commercial buildings
• Integration with Homematic IP smart home systems for automation and alerts
• Enhancing home security by detecting unauthorized openings

Key specifications

• Product Type: Magnetic Window/Door Sensor
• Quantity per Pack: 5 units
• Wireless Protocol: Homematic IP
• Radio Frequency: 868.0 - 868.6 MHz, 869.4 - 869.65 MHz
• Power Supply (per sensor): 2x AAA 1.5V batteries
• Typical Battery Life: 2 years
• Detection Principle: Magnetic contact
• Installation Method: Adhesive or Screw mounting
• Operating Temperature Range: -10 to +50 °C
• Protection Rating: IP20
• Color: White
• Special Features: Tamper protection, Low battery warning, Sabotage detection
• System Compatibility: Homematic IP Access Point, Homematic IP CCU3/CCU2
• Status Indicator: Integrated LED
• Housing Material: Plastic
• Dimensions (Sensor Unit): 48 x 35 x 15 mm (L x W x H)
• Dimensions (Magnet Unit): 48 x 10 x 11 mm (L x W x H)

Recommendations

For optimal performance, pair with a Homematic IP Access Point or CCU3/CCU2 central control unit. Ensure proper placement and alignment of the magnet and sensor for reliable detection. Regularly check battery status via the Homematic IP app.
