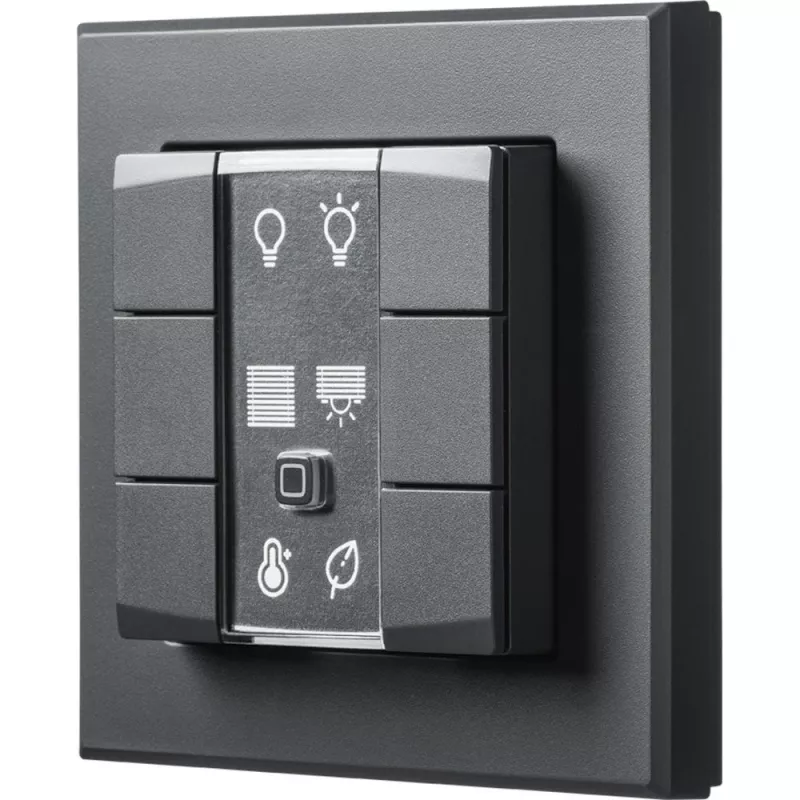

Mando de pared de 6 botones Homematic IP Wandtaster — RF inalámbrico, hasta 200 m de alcance, IP20

The Homematic IP wall-mounted 6-button remote control is a compact RF wireless control unit designed for indoor use with Homematic IP smart home systems. With three pairs of press buttons it provides six individual inputs to switch lights, scenes, blinds or other connected functions. The device operates via radio communication with a maximum line-of-sight range of up to 200 m and is rated IP20 for protected indoor installation. The remote is available in anthracite and can be mounted on walls, glass or furniture without a direct power cable when battery-powered.

Advantages

The wall-mounted remote offers a simple and robust interface to control multiple functions in a Homematic IP system. Its RF wireless operation enables local control even if the internet connection is unavailable, and the six buttons support assignment to up to six devices or system functions. The design supports several mounting options — adhesive, screw mounting, integration into popular Size 55 switch frames or mounting on a flush-mounted box — allowing flexible placement. A replaceable label field lets you mark each button for quick identification, and the unit can also be powered via a suitable 230 V Homematic IP power supply when installed in compatible switch frames.

Suitable for

• Controlling lighting zones and individual lights
• Triggering predefined scenes (e.g., evening, away, welcome)
• Operating motorised blinds and shutters
• Activating or deactivating heating or ventilation scenes linked to the system
• Providing local manual control points in corridors, kitchens or living rooms

Key specifications

• Wireless interface: RF (radio)
• Button type: press buttons
• Number of buttons: 6 (three pairs)
• Supported assignments: up to 6 devices or functions
• Maximum radio range: up to 200 m (line of sight)
• Protection rating: IP20 (indoor use)
• Color: anthracite
• Power supply: battery operation (alkaline) or optional 230 V supply via appropriate Homematic IP adapter when installed in compatible frames
• Mounting options: adhesive, screw-mounted interchangeable frame, Size 55 frame integration, flush-mounted box with plate, or desktop stand integration

How to use

Assign functions or devices to each of the six buttons via the Homematic IP app or central control unit following the manufacturer's pairing process. Install batteries or connect to the optional 230 V supply if using a compatible frame and power adapter. Mount the unit using the supplied interchangeable frame with adhesive or screws, insert it into a Size 55 frame if integrating with existing switch series, or place it on the Homematic IP desktop stand when preferred. Replace the labelling field to mark each button according to the chosen function for clear identification.

Recommendations

Place the remote at convenient, easily reachable locations such as near entrances, corridors or beside seating areas to provide quick access to frequently used functions. For reliable radio communication, avoid locating the device in heavily shielded enclosures or behind large metal surfaces; test the range in your installation environment and, if necessary, reposition or add a Homematic IP repeater or compatible device to improve coverage.
