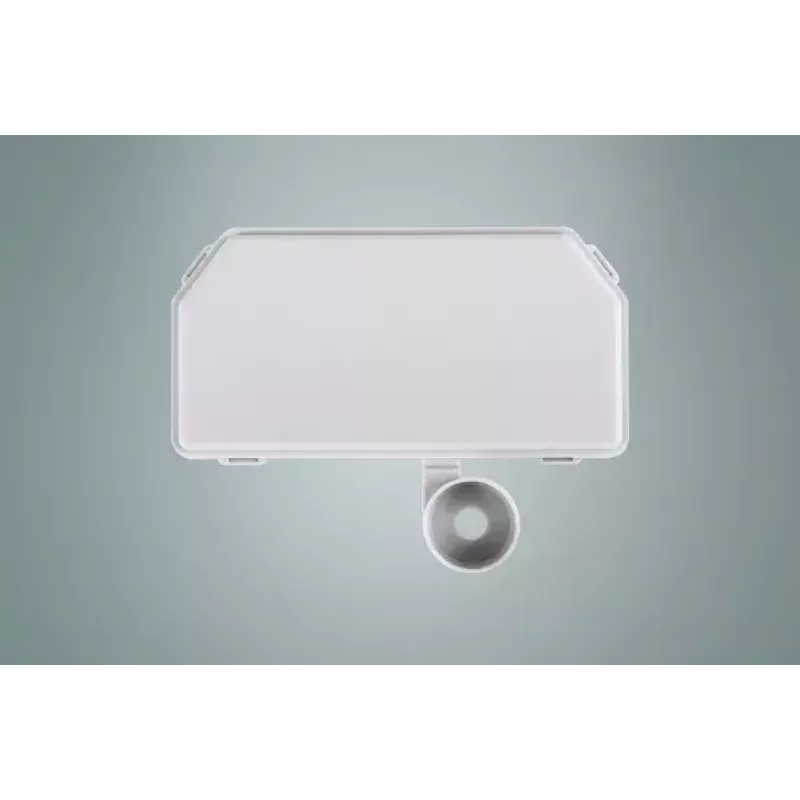

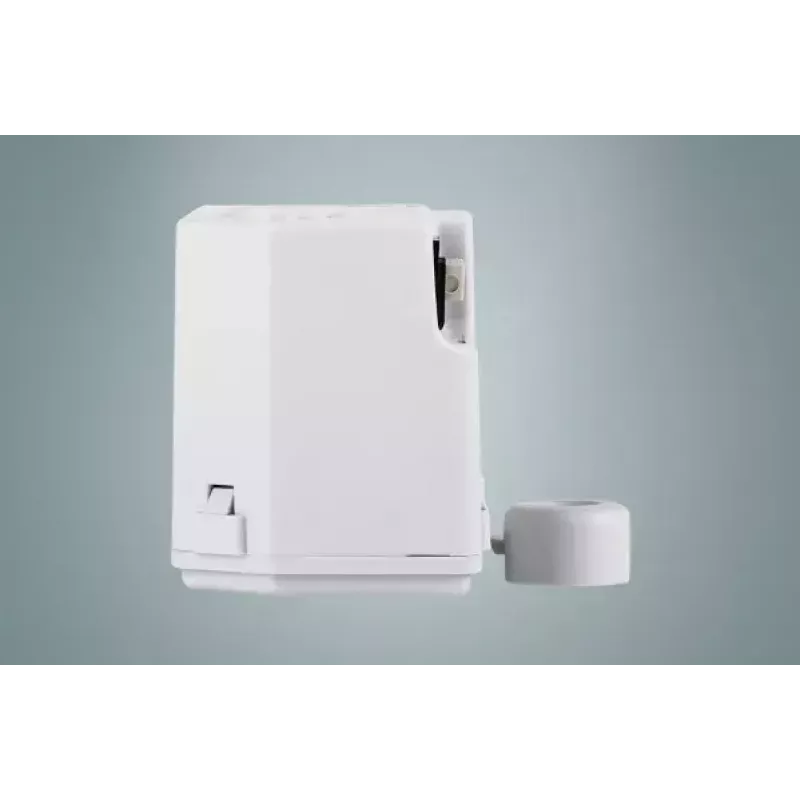

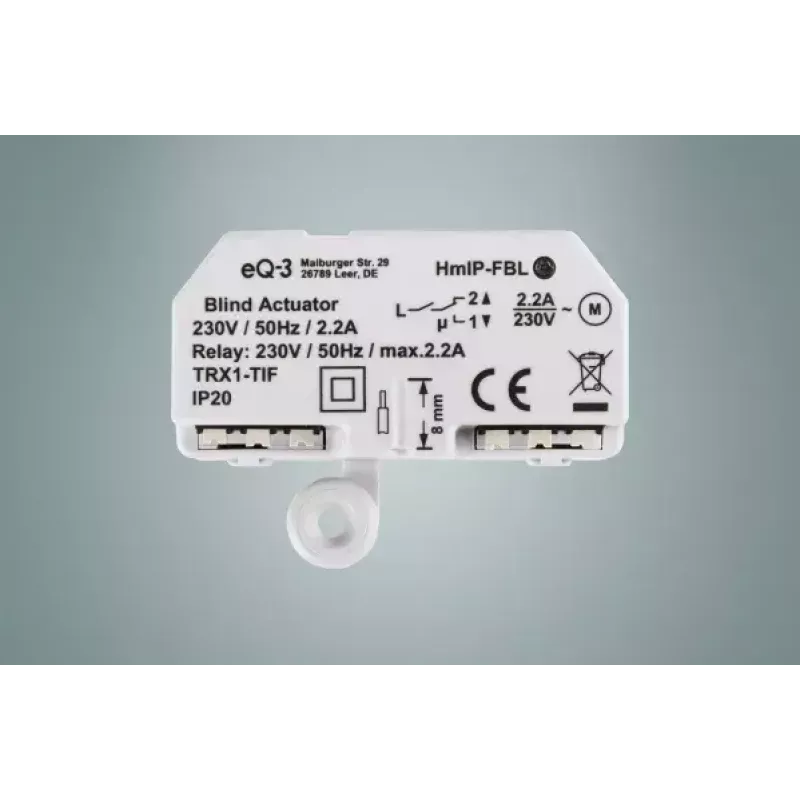

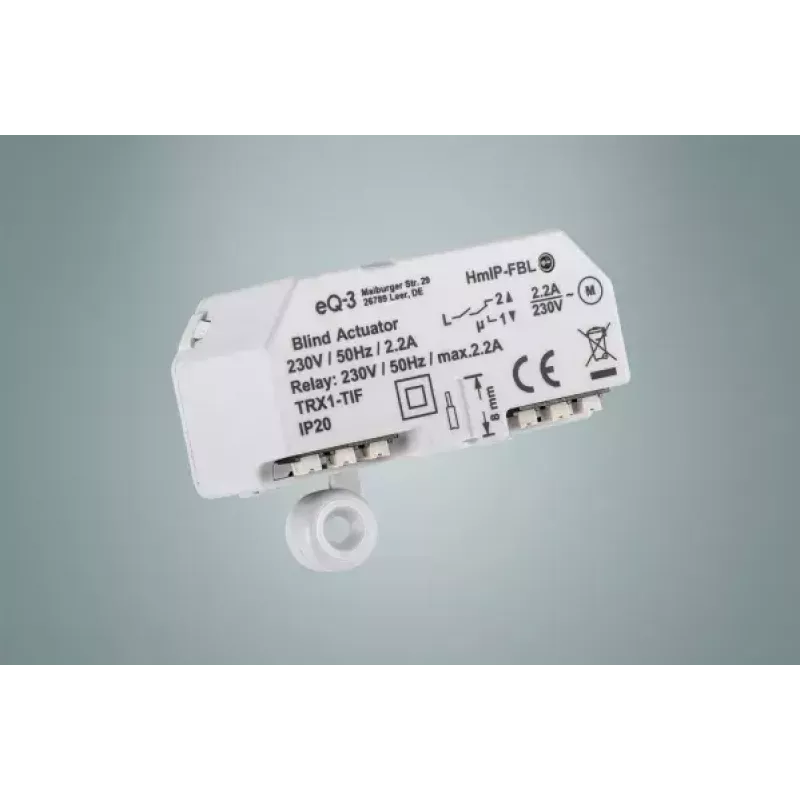

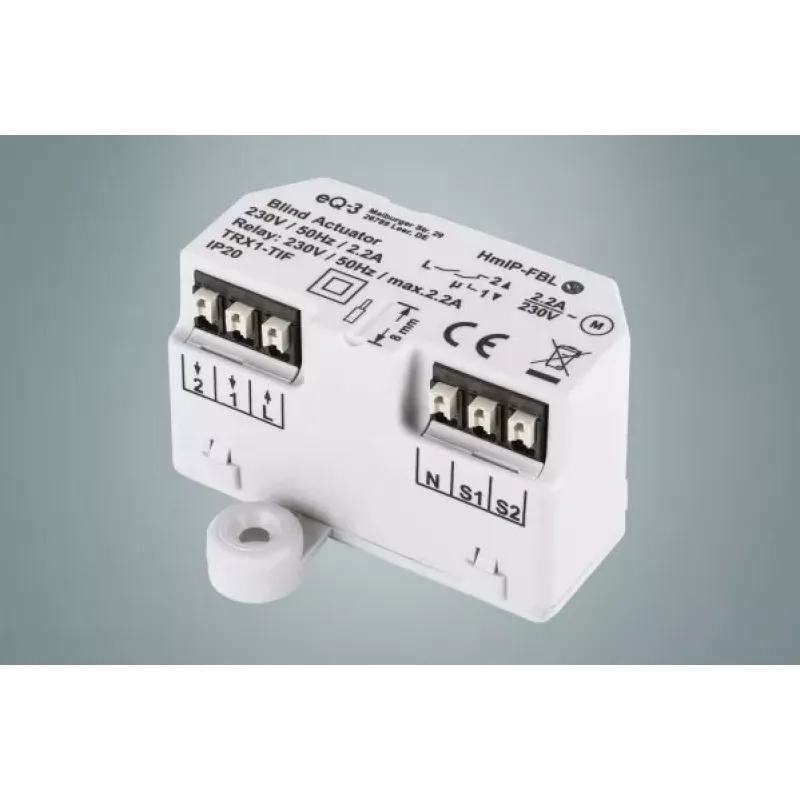

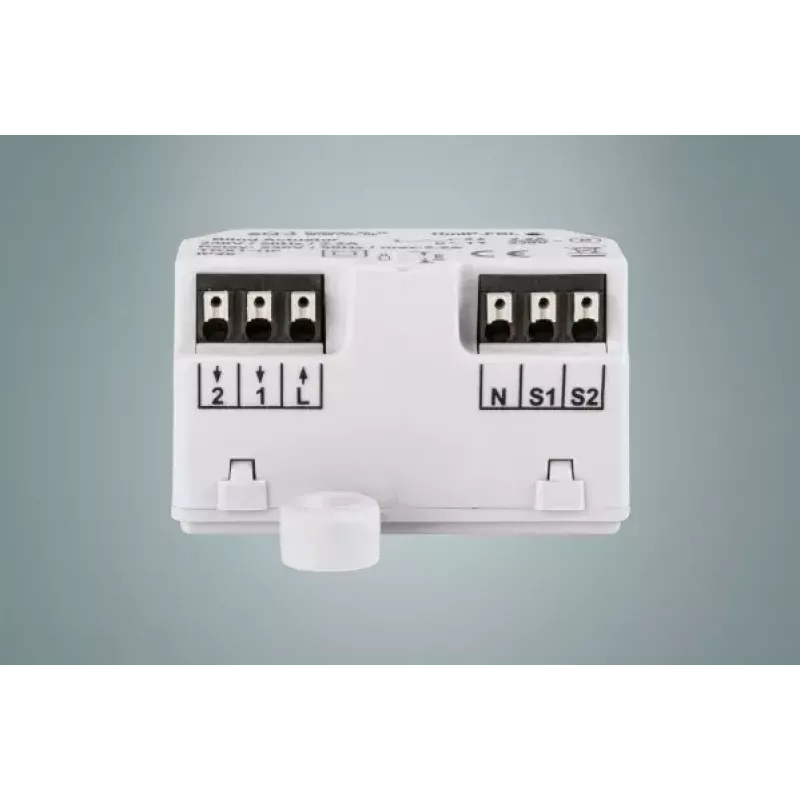

Transmisor Homematic IP HmIP-FBL Accesorio para persiana enrollable/estor

The Homematic IP HmIP-FBL Blind/Shutter Accessory is a compact transmitter designed to operate and automate blinds and shutters within a Homematic IP system. It transmits control signals for opening, closing and positioning window coverings, supporting reliable wireless communication over distances up to 180 m in open outdoor conditions. The accessory is intended for integration with mains-powered installations and accepts an AC input of 230 V at 50 Hz; its small enclosure (54 mm × 41 mm × 33 mm) allows installation in confined spaces such as switch boxes or behind wall-mounted control plates. Operating at a transmission power of 0.2 W, the device is suitable for retrofit projects and new smart-home installations that require a discreet, local control interface for roller shutters and venetian blinds.

Advantages

The transmitter offers compact dimensions for flexible placement and installation in standard mounting locations. It provides a long outdoor radio range of up to 180 m, enabling control from remote points in typical residential environments. Designed for mains operation, it connects to a 230 V / 50 Hz supply, which removes the need for battery changes and supports continuous availability. The product’s communication and control functions are compatible with Homematic IP ecosystems, facilitating integration into automated scenes and schedules.

Suitable for

• Controlling roller shutters and venetian blinds in residential homes
• Integration into Homematic IP smart-home systems for scheduled or remote operation
• Retrofit installations where space is limited and a compact transmitter is required
• Locations requiring mains-powered, permanently available control without batteries

Key specifications

• Wireless outdoor range: up to 180 m (open area)
• Transmission power: 0.2 W
• Supply voltage: AC 230 V, 50 Hz
• Dimensions (W × D × H): 54 mm × 41 mm × 33 mm
• Intended use: transmitter for blinds and shutters control

How to use

Connect the transmitter to the AC mains according to the installation instructions and local electrical regulations. Mount the unit in a suitable enclosure or behind a control plate near the roller shutter drive or wall switch, ensuring sufficient clearance and secure wiring. Pair the accessory with the Homematic IP central unit or compatible gateway following the system’s pairing procedure, then assign it to the appropriate device group or room. Configure movement limits, positions and automation rules from the Homematic IP app or central control to enable timed, scene-based or remote operation of the blinds and shutters.

Recommendations

Install and wire the transmitter only by a qualified electrician. Place the device in a dry, sheltered location and avoid sources of strong electromagnetic interference. Verify radio connectivity after installation and position the transmitter to maintain reliable communication with the Homematic IP gateway or other system components.
