Equip Cable de red Cat.6A F/FTP fino 0,15 m azul 10000 Mbit/s

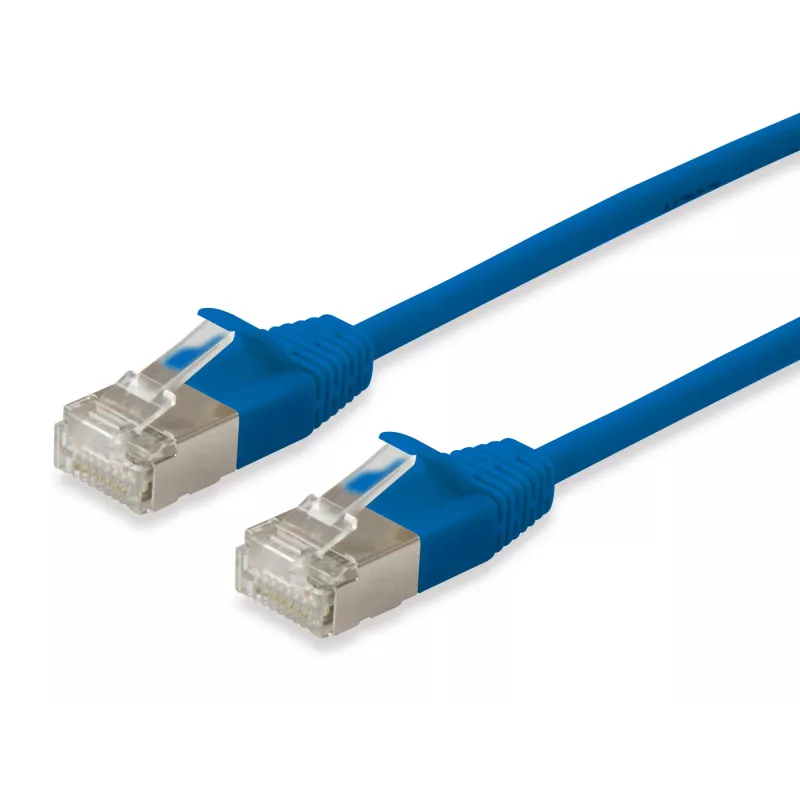

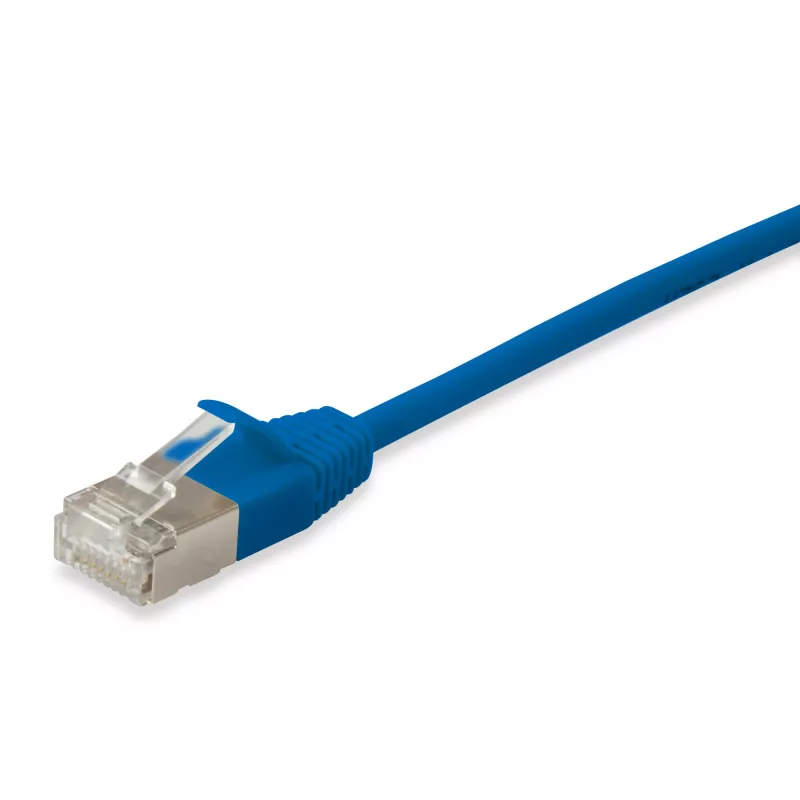

The Equip Cat.6A F/FTP Slim Patch Cable 0.15m in blue is a compact network patch cable designed for 10GBase-T connections and a maximum data rate of 10000 Mbit/s. Its ultra-slim 3.8 mm diameter reduces cable bulk, making routing and space management easier in high-density environments such as data centers and telecommunications rooms. The cable features F/FTP shielding, RJ-45 straight male connectors on both ends and is RoHS compliant with LSZH jacket material.

Advantages

Compared with standard Cat.6A cables, this slim patch cable offers the same 500 MHz bandwidth and 10 Gbit transmission capability while occupying almost half the diameter, allowing more cables to be installed in the same pathway. Stranded AWG 32/7 copper conductors and combined foil and braid shielding reduce EMI/RFI interference. Molded boots with strain relief improve connector durability and the LSZH jacket limits smoke and halogen emissions.

Suitable for (tasks / use cases)

• High-density patch panels and server racks
• Short interconnects in data centers and telecom rooms
• 10 Gigabit Ethernet connections, including 2.5G and 5G Ethernet
• Power over Ethernet (PoE, PoE+) device connections

Key specifications

• Length: 0.15 m
• Cable category: Cat6a F/FTP (FFTP)
• Diameter: 3.8 mm (ultra slim)
• Conductor: Stranded bare copper, AWG 32/7
• Bandwidth: 500 MHz
• Data rate: up to 10000 Mbit/s (10 Gbit/s)
• Connectors: RJ-45 straight male – RJ-45 straight male
• Shielding: Foil and braid (F/FTP)
• Compatibility: 2.5G/5G/10G/1G Ethernet
• PoE support: Suitable for PoE and PoE+
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Standards: ISO/IEC 11801, EN 50173
• Colour: Blue

How to use

Connect one RJ-45 plug to the network device and the other RJ-45 plug to the switch, patch panel or wall outlet. Ensure connectors are fully inserted until the latch clicks. Use the cable for short patching runs (0.15 m) inside racks or between adjacent devices. Avoid sharp bends and do not exceed the recommended bending radius to preserve signal performance and mechanical integrity.

Recommendations

For best results in high-density installations, route the slim patch cables through organized cable management channels and keep power and data cabling separated to minimize interference. Inspect connectors periodically and replace cables showing physical damage.
