Equip Cable de red Cat.6A F/FTP fino 0,15 m negro 10000 Mbit/s

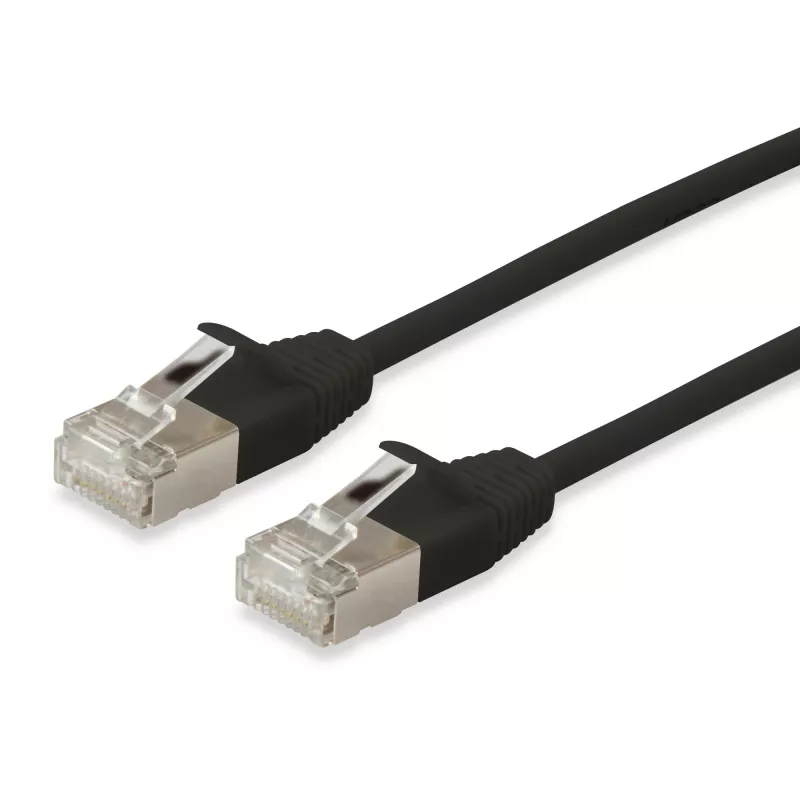

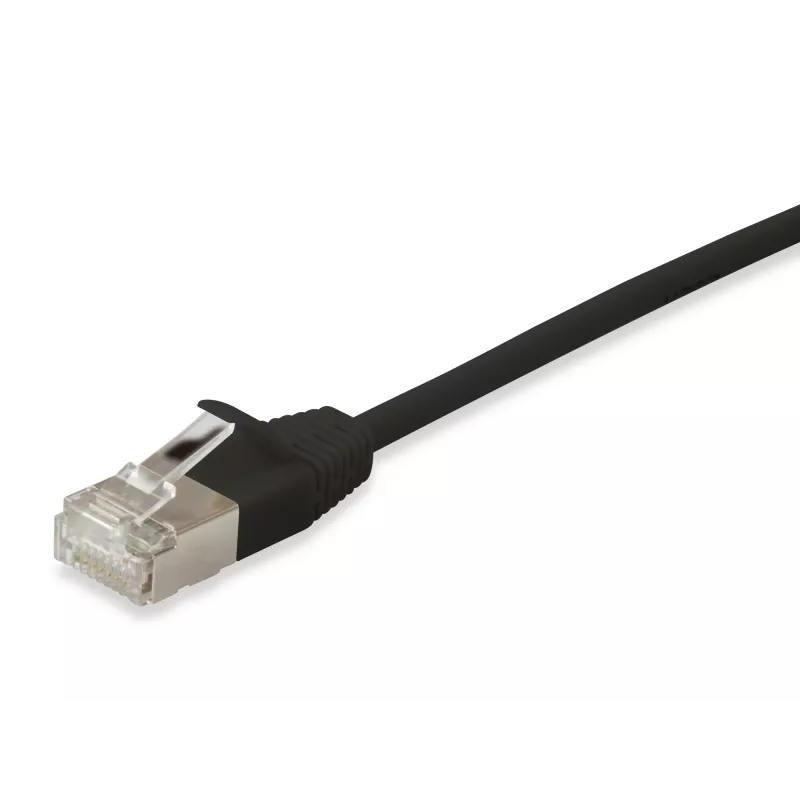

The Equip Cat.6A F/FTP Slim Patch Cable 0.15m is a compact high-performance network patch cable designed for dense cabling environments. With an ultra-slim 3.8 mm diameter and F/FTP (foil over twisted pairs plus braid) shielding, it delivers 10 Gbit/s transmission and up to 500 MHz bandwidth while reducing EMI/RFI interference. The cable uses stranded AWG 32/7 bare copper conductors, comes in black, and features RJ-45 straight male connectors on both ends. Its reduced diameter makes routing easier and allows more cables to fit in the same space, useful in data centers and telecommunications rooms.

Advantages

The slim design provides significant space savings compared with standard Cat6A cables, simplifying routing in high-density racks and patch panels. F/FTP shielding combined with a braided shield lowers electromagnetic and radio-frequency interference, improving signal integrity for 10GBase-T networks. Molded boots with strain relief increase connector durability, and the LSZH/LSOH jacket meets safety and environmental standards. The cable is RoHS-compliant and conforms to ISO/IEC 11801 and EN 50173.

Suitable for

• High-density data center and server rack cabling
• Telecommunications rooms and patch panels
• 10GBase-T, Gigabit and Fast Ethernet connections
• Power over Ethernet (PoE, PoE+) deployments

Key specifications

• Standard: Cat6A F/FTP (FFTP)
• Length: 0.15 m
• Diameter: 3.8 mm (ultra slim)
• Conductor: stranded bare copper AWG 32/7
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male — RJ-45 straight male
• Shielding: foil and braid (F/FTP)
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH), black
• Standards: ISO/IEC 11801, EN 50173; RoHS compliant

How to use

Plug each RJ-45 connector into the corresponding Ethernet ports on network devices such as switches, patch panels or servers. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the slim cable through cable management channels or patch panels as required; the reduced 3.8 mm diameter eases bundling and routing in tight spaces. Avoid sharp bends and do not crush the cable to maintain signal performance.

Recommendations

For best performance, use the Equip Cat.6A F/FTP Slim cable for short patch runs within racks or between adjacent equipment. Keep bend radius at least 4 times the cable diameter and avoid running the cable parallel to high-voltage power lines to minimize interference.
