Equip soporte de pared para TV inclinable para cargas pesadas de 60" a 120", capacidad máxima 120 kg, tamaño mínimo de pantalla 60", tamaño máximo de pantalla 120"

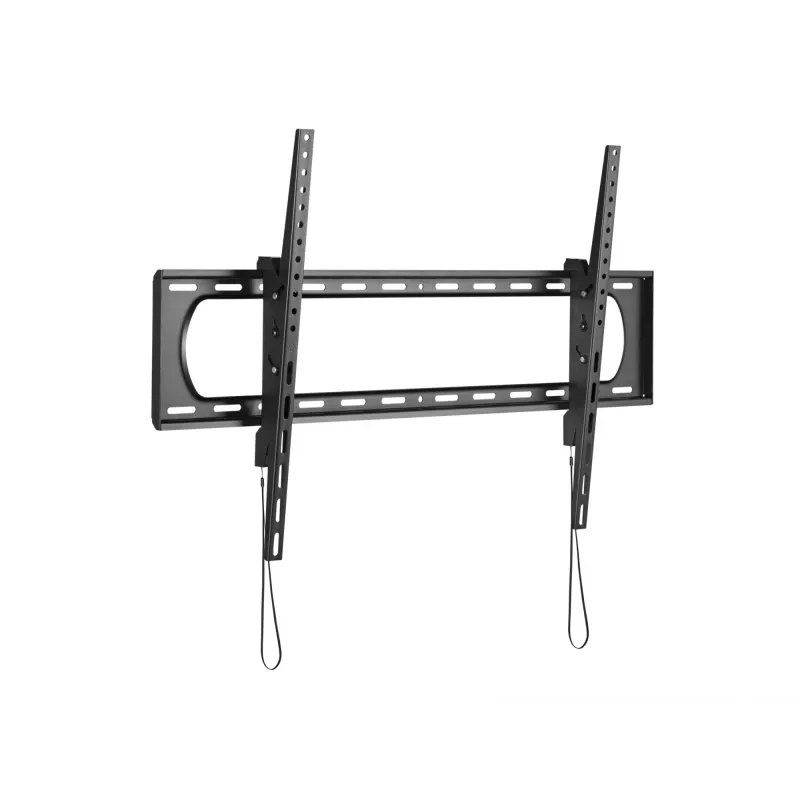

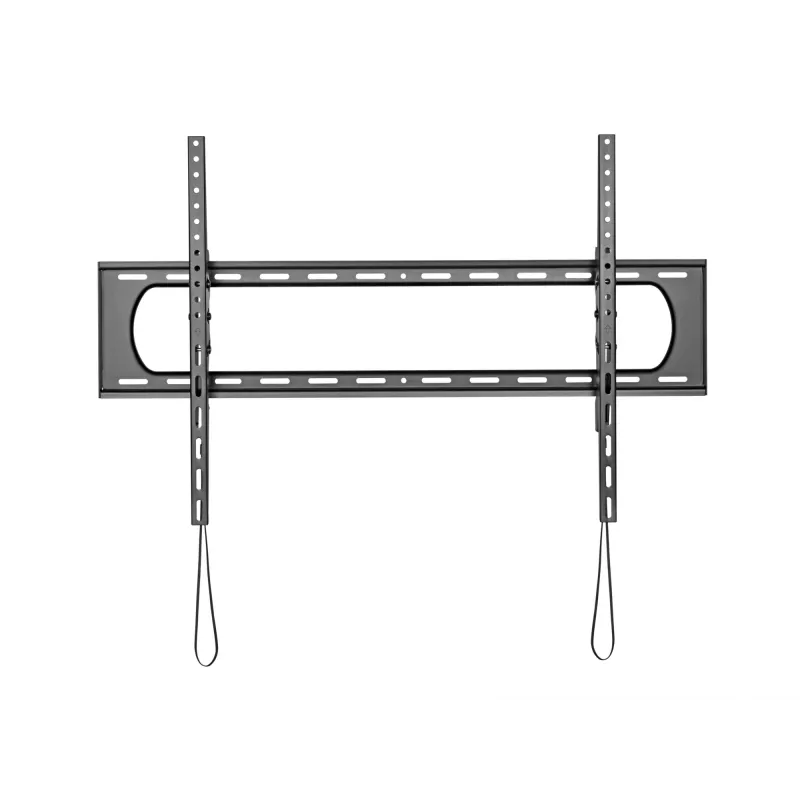

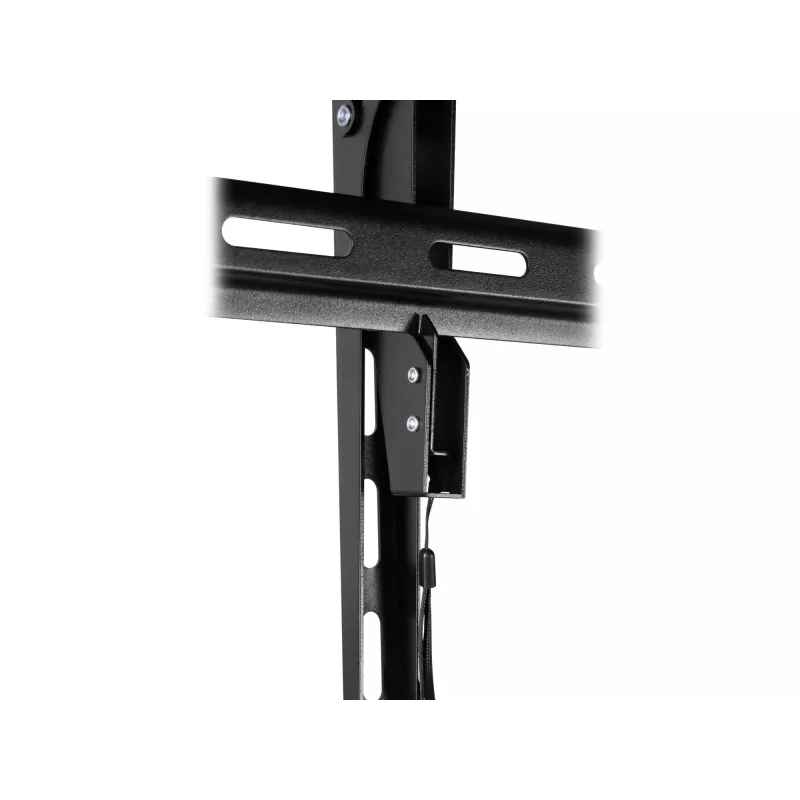

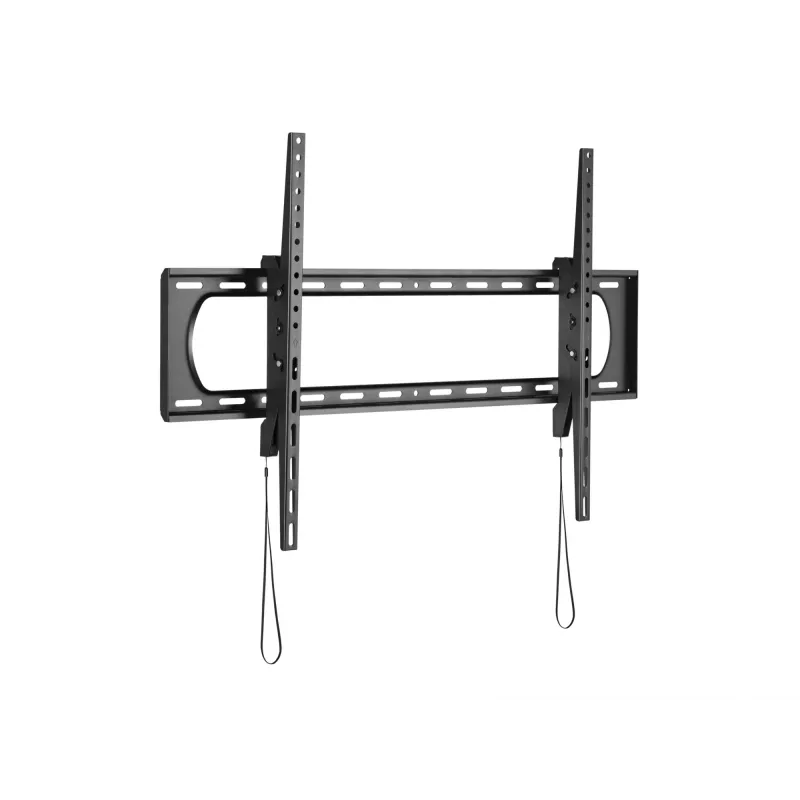

The equip® 650339 TV Wall Mount Bracket is a compact, heavy-duty tilt mount designed for large LCD and LED screens from 60" to 120". Constructed to provide a stable installation while occupying only 8 cm from the wall, the bracket supports up to 120 kg and includes a central opening for outlet access and cable concealment. Its toolless tilt mechanism offers +10° to -10° adjustment and a quick-release spring lock enables fast attachment and removal of the TV.

Advantages

This heavy-duty mount combines a stiffener structure for increased load capacity with a slim profile that keeps the display close to the wall. The wide VESA compatibility and central space for sockets and cable management make installation neater, while the toolless tilt and quick-release spring lock simplify adjustment and service. The black finish provides a neutral look suited to most interiors.

Suitable for

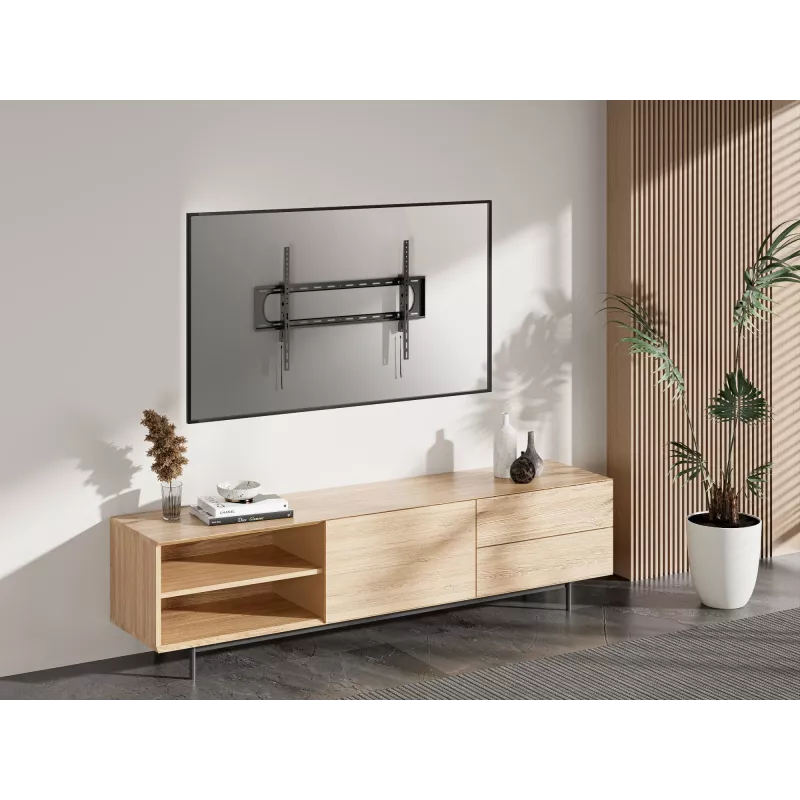

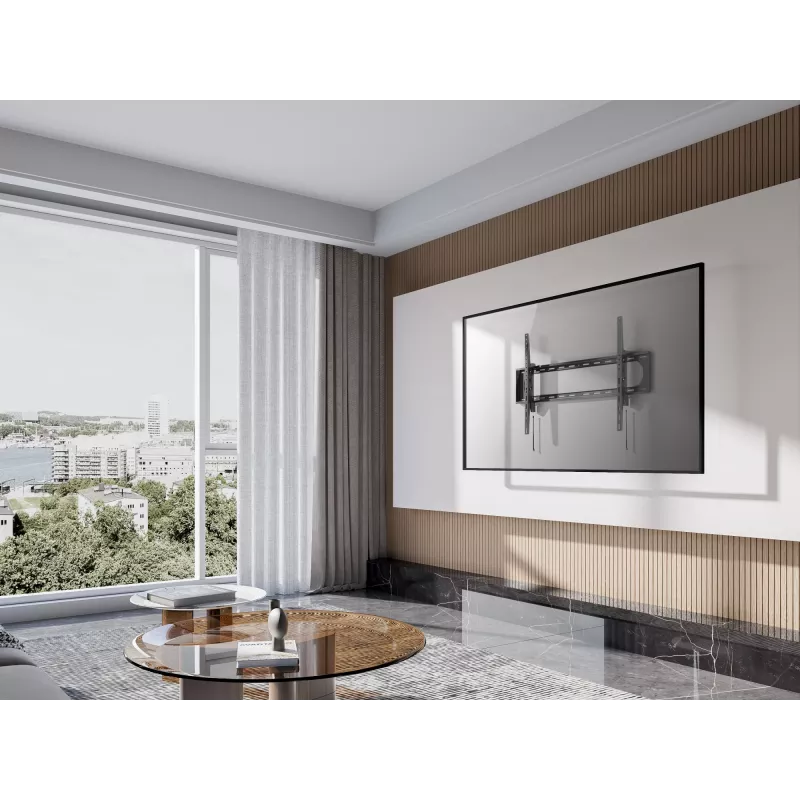

• Mounting large TVs in living rooms and media rooms
• Commercial displays in retail, lobby or conference areas
• Applications requiring concealed cabling and wall outlet access
• Environments needing a strong mount for heavy screens up to 120 kg

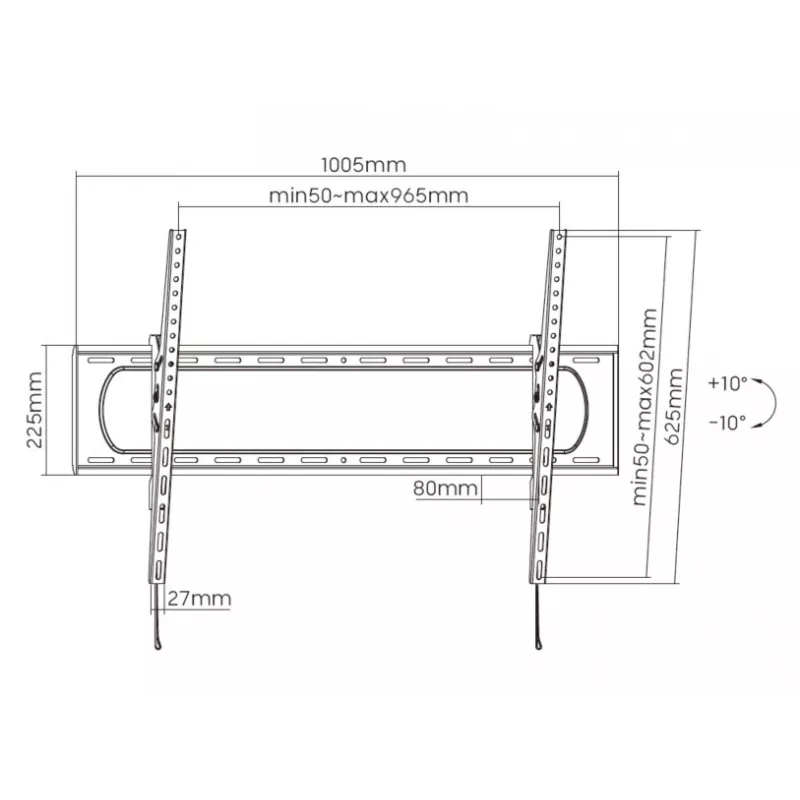

Key specifications

• Brand: EQUIP, model: 650339
• Screen size: 60"–120"
• Maximum weight capacity: 120 kg
• VESA compatibility: up to 900 x 600 mm
• Tilt range: +10° to -10° (toolless)

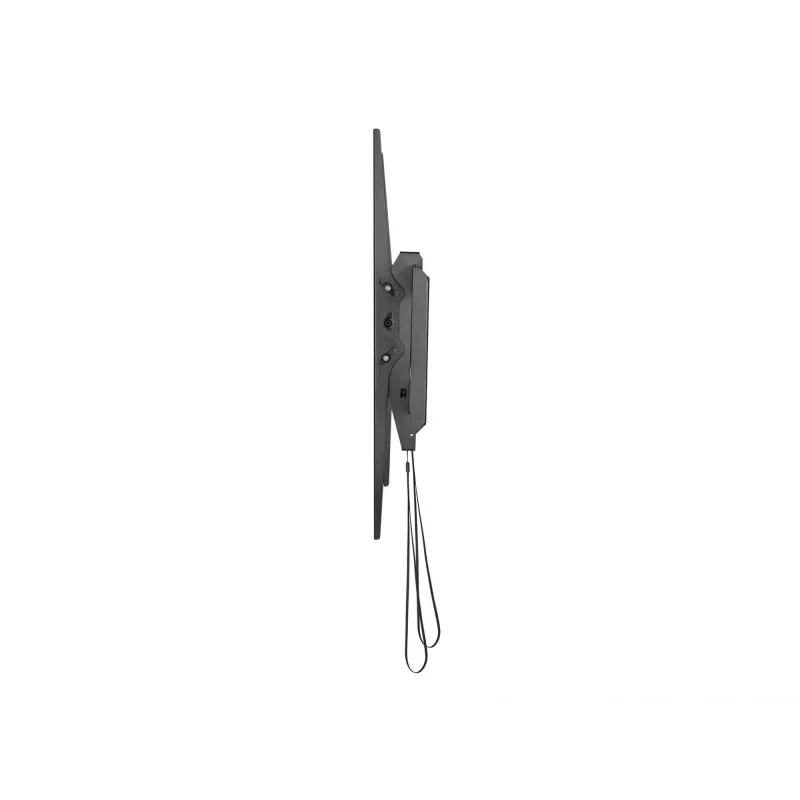

• Wall offset: 8 cm
• Colour: Black
• Number of displays supported: 1
• Product weight: 4.29 kg

How to use

Position the mount on a suitable load-bearing wall and mark the fixing points according to the included template and your TV's VESA pattern. Secure the bracket to the wall using appropriate anchors or bolts for your wall type, then attach the TV mounting arms to the display. Hang the display on the wall plate, engage the quick-release spring lock and adjust the tilt between +10° and -10° to achieve the desired viewing angle. Use the central opening to route power and signal cables and connect the wall outlet as needed.

Recommendations

Ensure installation onto structural studs or certified anchors rated for the combined weight of the mount and TV (up to 120 kg). Verify VESA pattern compatibility and use the correct fasteners for your wall material. If unsure, use a professional installer.
