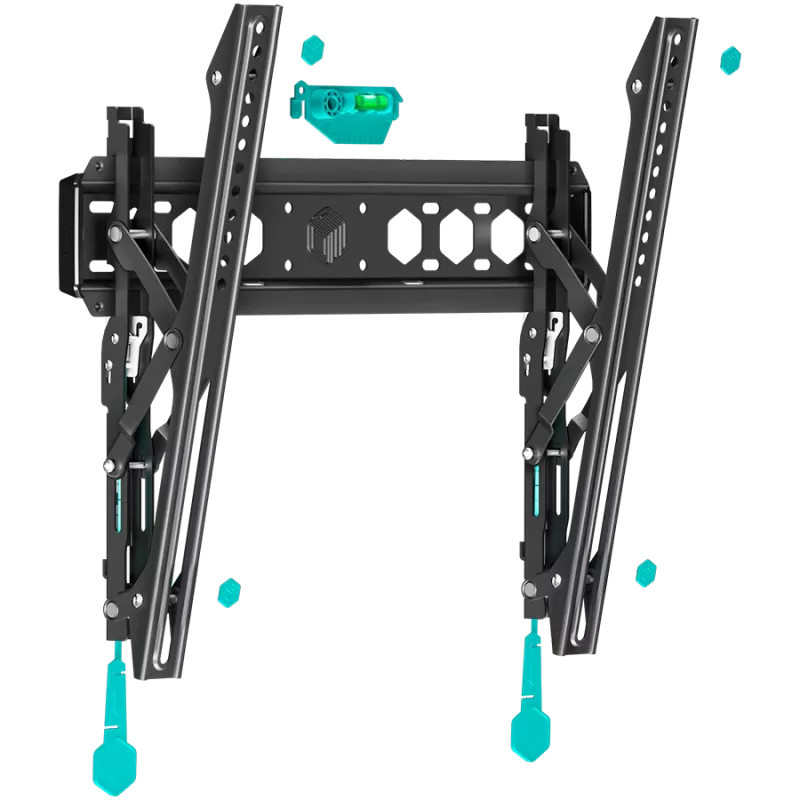

Soporte de pared para TV ONKRON TM5-B para pantallas de 32–70 pulgadas, inclinable, capacidad de carga 60 kg, VESA 75x75–400x400, negro

ONKRON TM5-B is a tilting wall mount designed for flat-panel televisions from 32" to 70" (81.3–177.8 cm). It supports a single display up to 60 kg and accepts VESA patterns from 75 x 75 mm up to 400 x 400 mm. The bracket provides tilt adjustment from 0° to 12° and a slim profile with an adjustable distance to the wall between 3.5 cm and 14.5 cm, allowing safe and space-efficient installation in home or office environments.

Advantages

The mount is constructed from cold-rolled steel for mechanical strength and durability while maintaining a low-profile appearance in black finish. It includes practical installation aids such as a bubble level for alignment, soft spacers to protect the TV back, and a Click’n’Pull system to simplify hanging and removal. The broad VESA compatibility and 60 kg load capacity make it suitable for a wide range of modern flat-panel TVs.

Suitable for

• Mounting a single LED, OLED or LCD TV between 32" and 70"
• Rooms where a low-profile, tilting solution is required (living room, bedroom, office)
• Installations requiring VESA flexibility from 75x75 to 400x400
• Situations where a moderate tilt (up to 12°) improves viewing angle

When it may not be suitable

This tilting mount is not intended for displays heavier than 60 kg or with VESA patterns outside the 75 x 75 mm to 400 x 400 mm range. It also provides only limited tilt adjustment (0–12°), so it may not be appropriate where large-angle articulation, swivel, or full-motion repositioning is required.

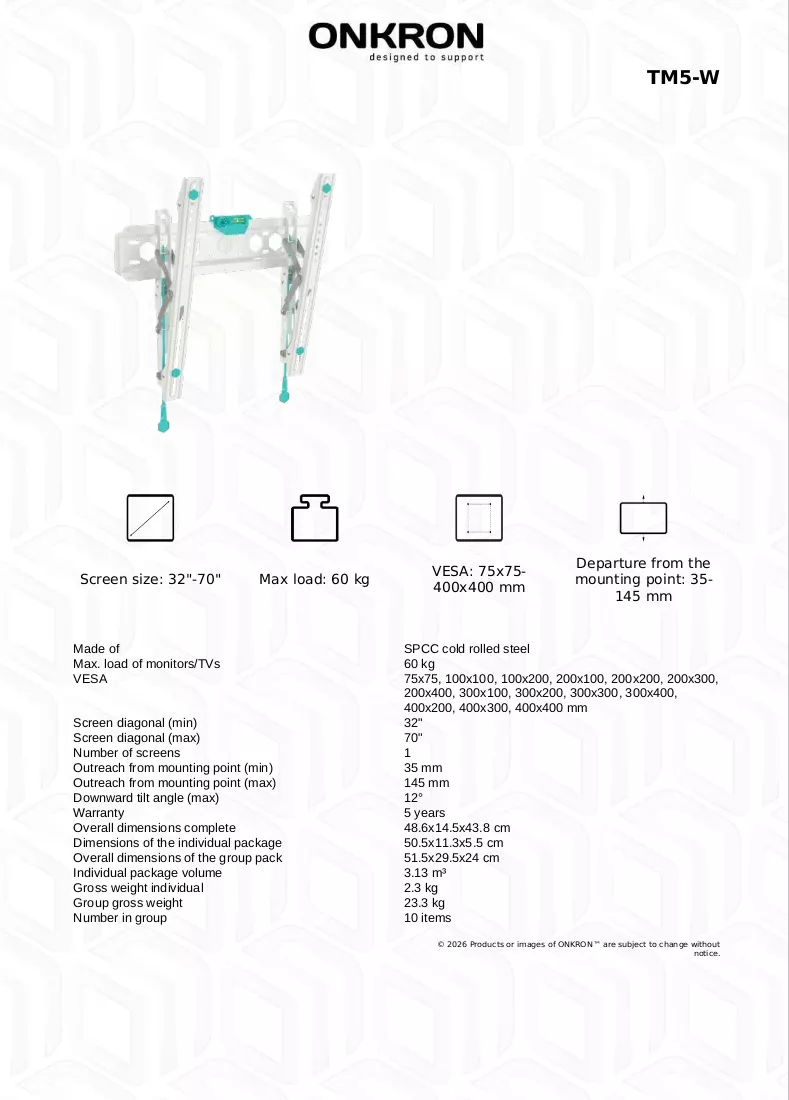

Key specifications

• Supported screen sizes: 32"–70" (81.3–177.8 cm)
• Maximum weight capacity: 60 kg
• VESA compatibility: 75 x 75 mm up to 400 x 400 mm
• Tilt range: 0° to 12°
• Distance to wall (adjustable): 3.5 cm – 14.5 cm
• Material: cold-rolled steel
• Colour: black
• Number of displays supported: 1

How to use

Choose a suitable wall location and confirm the wall type and load-bearing capability. Mark and drill mounting holes using the included template or the built-in alignment aids, level the wall plate with the bubble level, and secure it with appropriate fixings for your wall material. Attach the bracket arms to the TV using screws that match the TV's VESA pattern, use soft spacers where needed to protect the TV back, then hang the TV on the wall plate and engage the Click’n’Pull mechanism. Adjust the tilt within the 0–12° range to obtain the desired viewing angle and tighten all fasteners.

What to consider before purchase

• Confirm your TV’s VESA pattern is within 75 x 75 mm to 400 x 400 mm
• Ensure the TV weight does not exceed 60 kg
• Verify wall type and that appropriate anchors or bolts are available for secure installation
• Consider whether fixed tilt (0–12°) meets your viewing requirements versus a full-motion mount

Recommendations

For safest results, use fixings rated for the specific wall material, double-check VESA screw sizes supplied with your TV, and keep the mount’s minimum and maximum wall distance in mind when planning cable routing behind the screen.
