Equip soporte de techo dual de 45"-55"

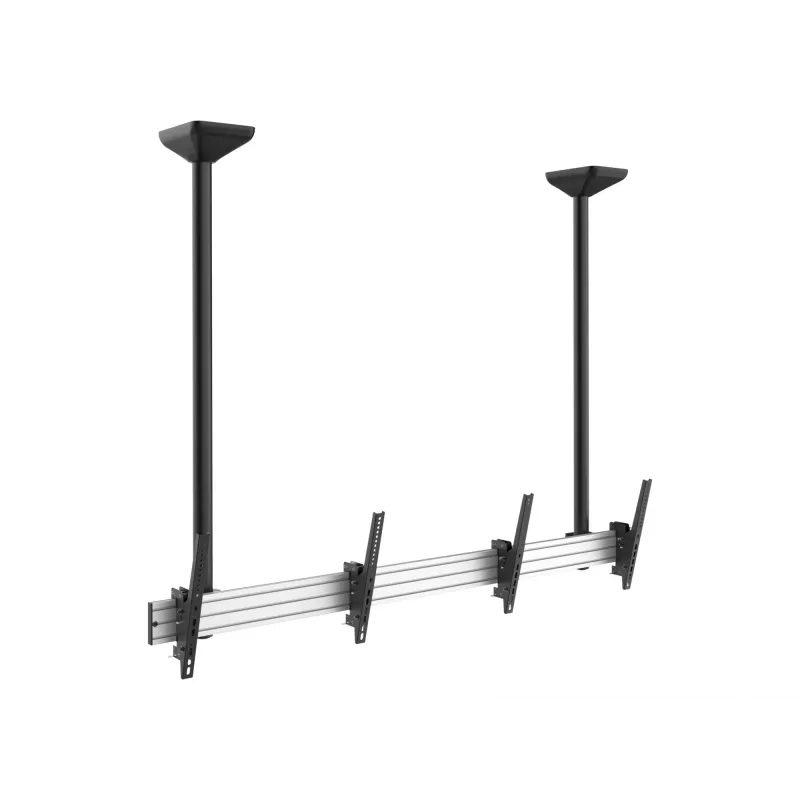

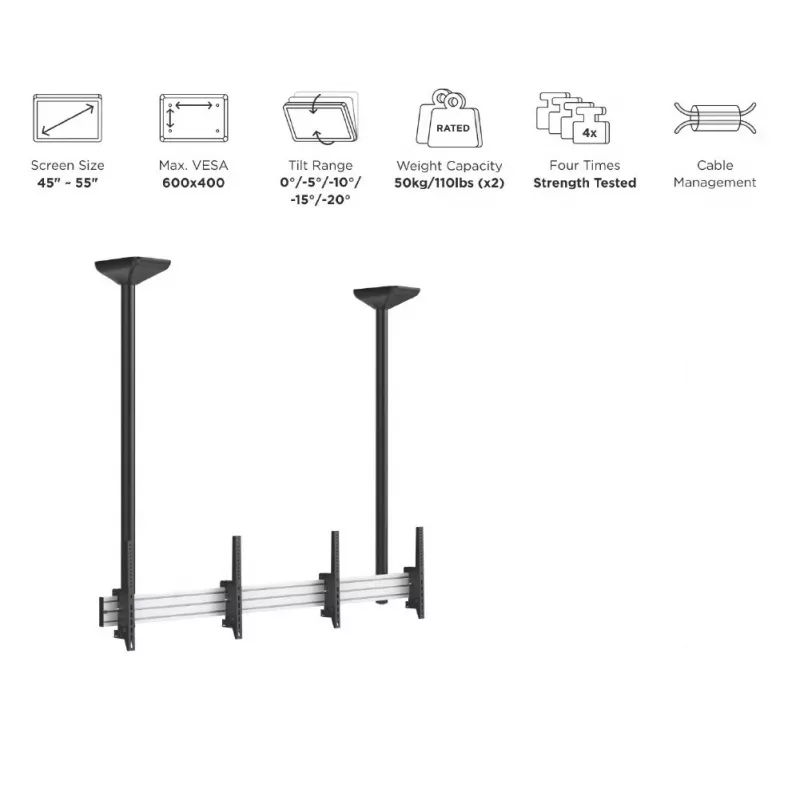

The Dual Screen Ceiling Mount Equip 45"-55" is an industrial-grade ceiling mount designed for digital signage and public display installations. It supports two screens sized 45" to 55" and offers robust load capacity and adjustable tilt for precise alignment and optimal visibility.

Advantages

This dual TV ceiling mount from EQUIP accepts VESA patterns from 200 x 200 mm up to 600 x 400 mm and can carry a combined maximum load of 100 kg. The tilt mechanism provides a 0° to -20° adjustment range to set even, consistent screen angles. Constructed for installation in commercial or public spaces, the mount is available in black and silver finishes and includes a long reach with a maximum distance to the wall of 158 cm.

Suitable for

• Digital signage in retail and shopping centers
• Public information displays in transportation hubs

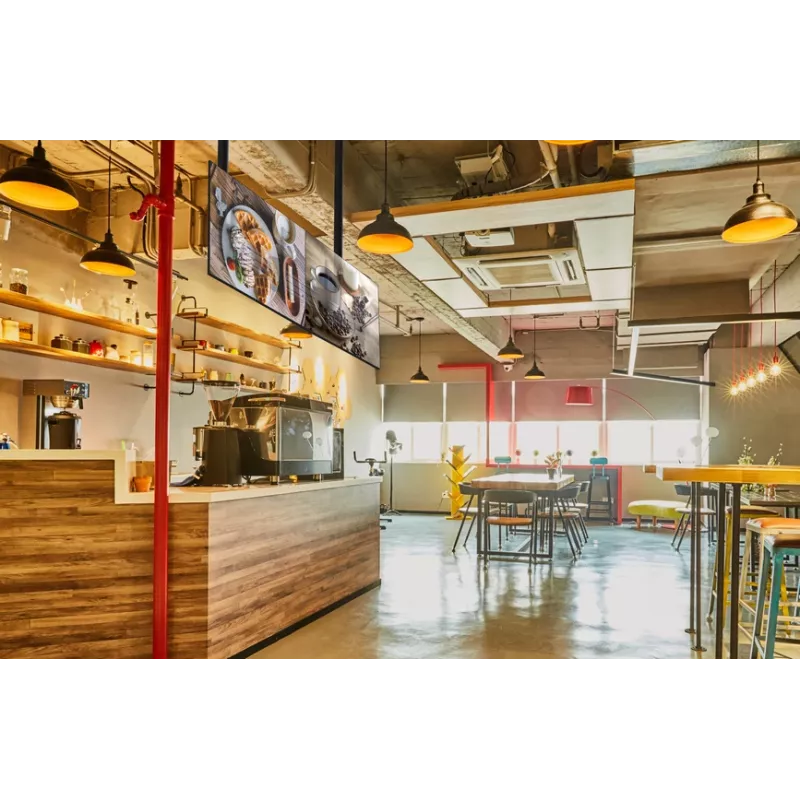

• Menu boards and promotional screens in restaurants and cafes
• Corporate lobbies and reception areas

Key specifications

• Supported screen size: 45"–55"
• Number of displays supported: 2

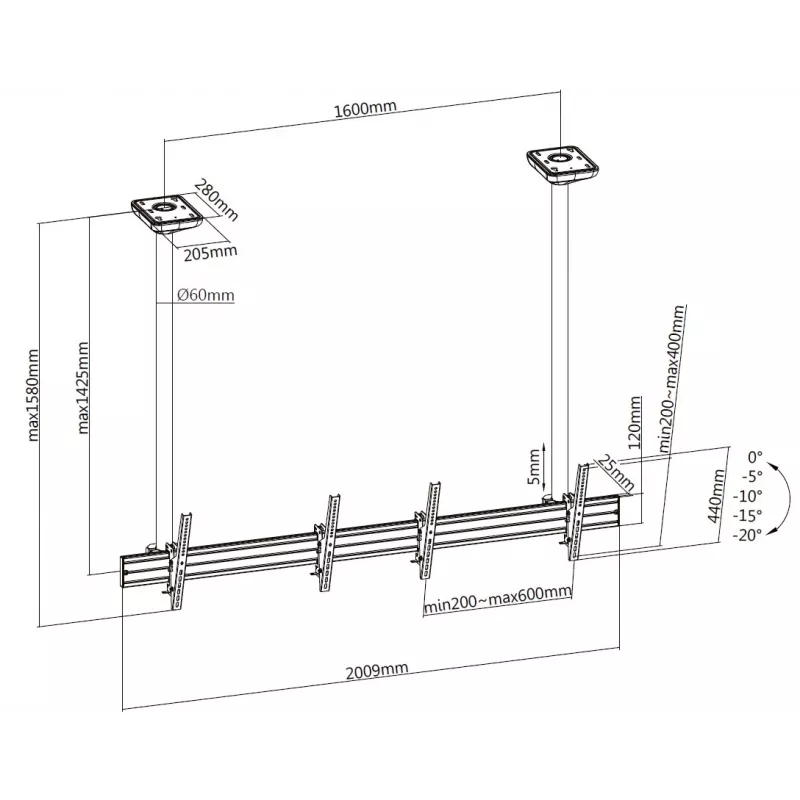

• Maximum VESA mount: 600 x 400 mm (supports from 200 x 200 mm)

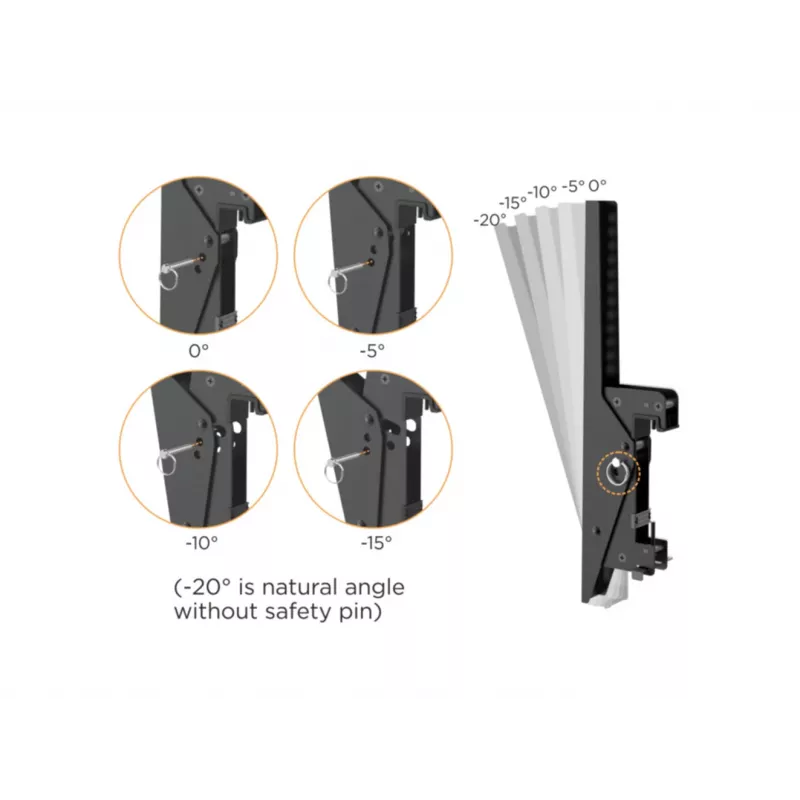

• Tilt range: 0° to -20°
• Maximum weight capacity: 100 kg
• Product weight: 25.9 kg
• Maximum distance to wall: 158 cm
• Colours: Silver, Black

How to use

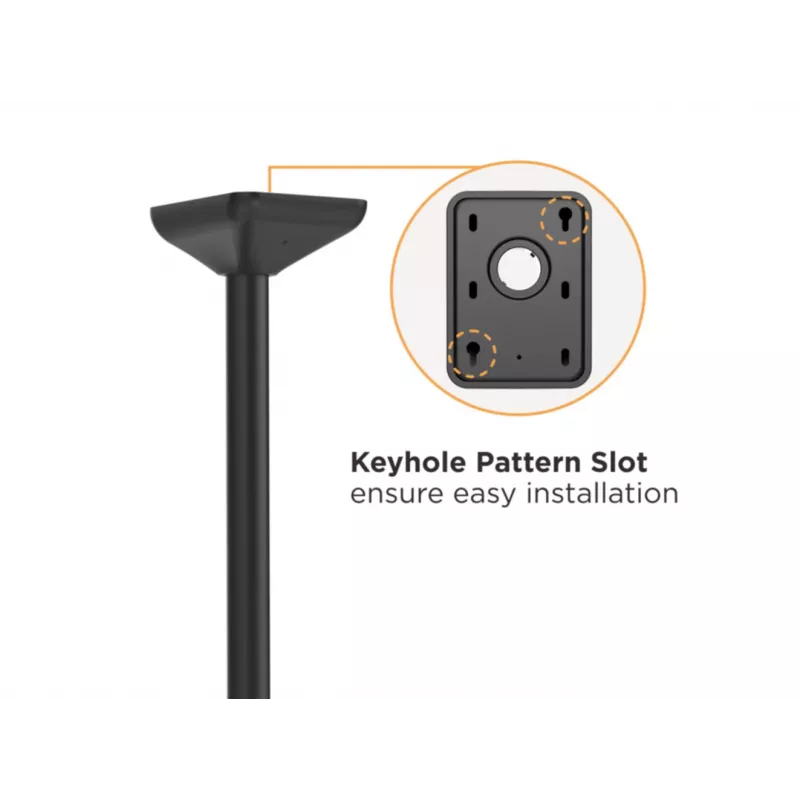

Attach each screen to the mount using the appropriate VESA holes within the 200 x 200 mm to 600 x 400 mm range, ensuring the weight of both screens does not exceed the 100 kg capacity. Secure the ceiling plate to a suitable structural element following local building codes. After mounting, adjust the tilt between 0° and -20° to achieve the desired viewing angle and confirm all fasteners are tightened before regular use.

Recommendations

Verify compatibility of your screens with the mount's VESA patterns and weight limits prior to installation. For safety and optimal performance in public spaces, professional installation is recommended.
