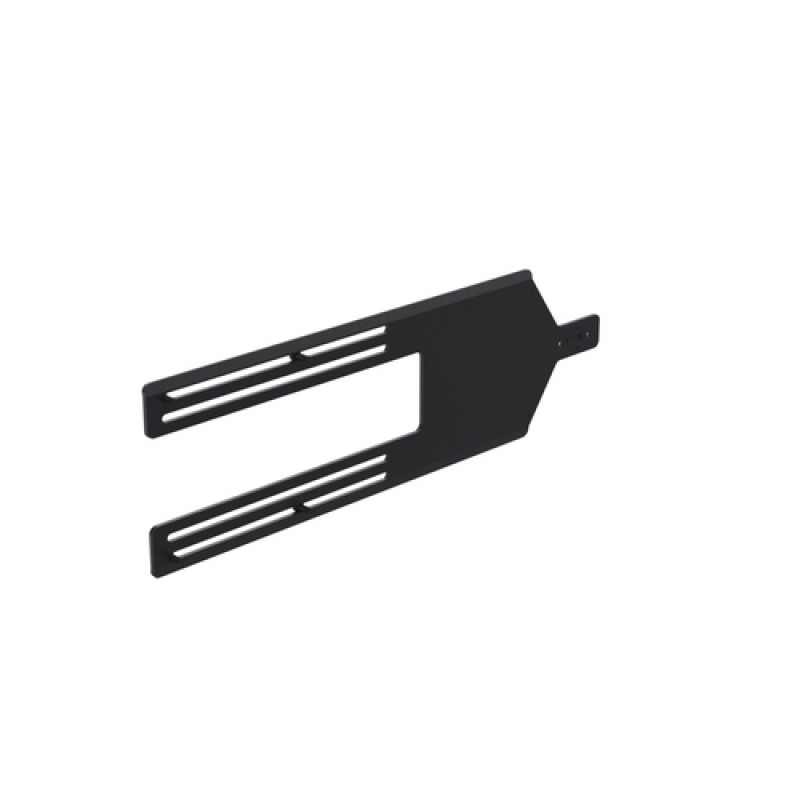

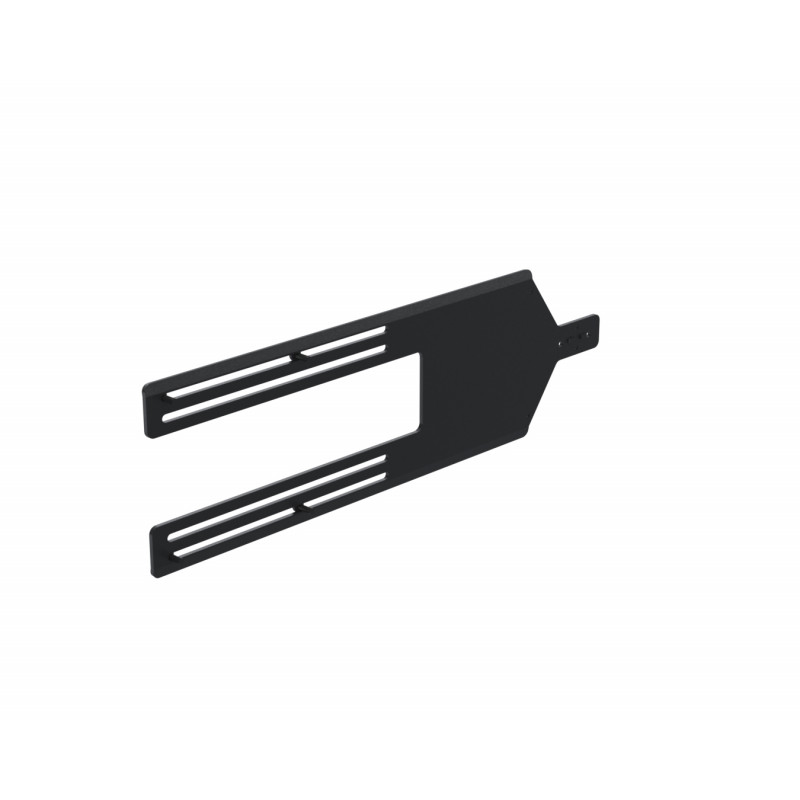

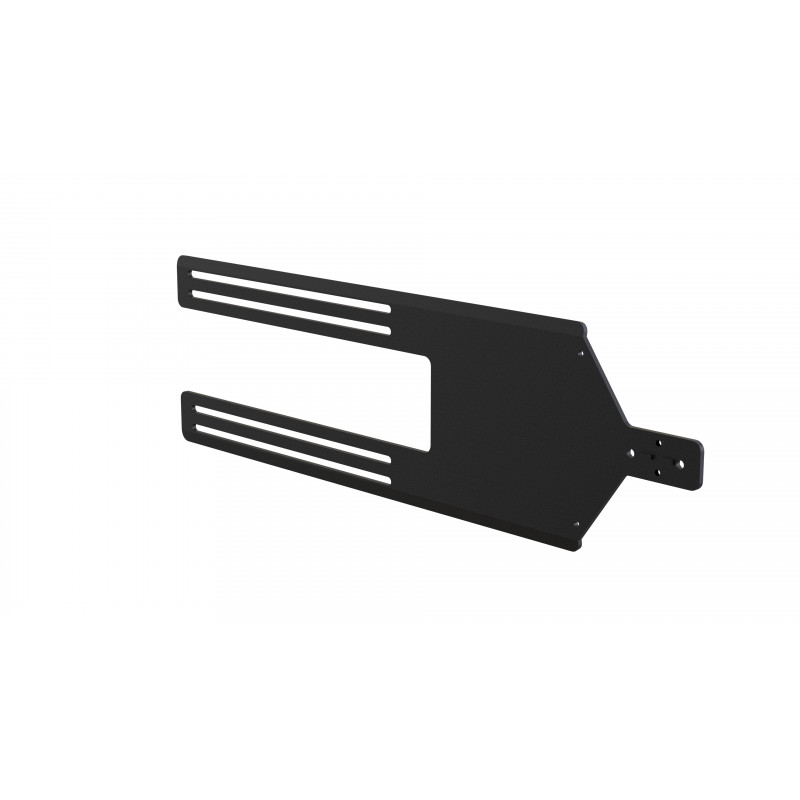

KIOSCO BRAZO RECTO HORIZONTAL 22" A 15"

Display mounting bracket engineered for kiosk and digital signage applications, providing a fixed landscape orientation for screens from 15 to 22 inches. Its straight low-profile design integrates seamlessly into kiosk enclosures, offering a secure and stable platform for public-facing displays.

Advantages

Constructed from high-grade steel with a powder-coated finish, this bracket delivers exceptional durability and resistance to wear in high-traffic environments. The fixed mounting style ensures zero drift or misalignment, maintaining consistent display positioning. Compatibility with multiple VESA patterns (75x75, 100x100, 200x100, 200x200) allows for flexible screen selection. With a 10 kg weight capacity, it safely supports a wide range of commercial displays. The low-profile depth of 75 mm minimizes protrusion, preserving the sleek aesthetics of kiosk designs.

Suitable for

• Indoor kiosk systems in retail, hospitality, and information points
• Digital signage installations requiring fixed landscape orientation
• Public display enclosures where security and stability are paramount
• Integration into custom kiosk frames or wall-mounted structures

Key specifications

• Mounting type: Kiosk integration / wall mount (fixed)
• Screen size compatibility: 15" - 22"
• VESA compatibility: 75x75, 100x100, 200x100, 200x200 mm
• Maximum weight capacity: 10 kg (22 lbs)
• Material: High-grade steel with powder-coated finish
• Depth from mounting surface: 75 mm
• Color: Black
• Compliance: RoHS
• Warranty: 1 year limited

Recommendations

For kiosk integrators and AV professionals seeking a robust, no-frills mounting solution, the SPK512-17 offers reliability and ease of installation. Pair with anti-theft screws (not included) for enhanced security in public settings. Ensure the display's VESA pattern and weight are within specified limits for optimal performance.
