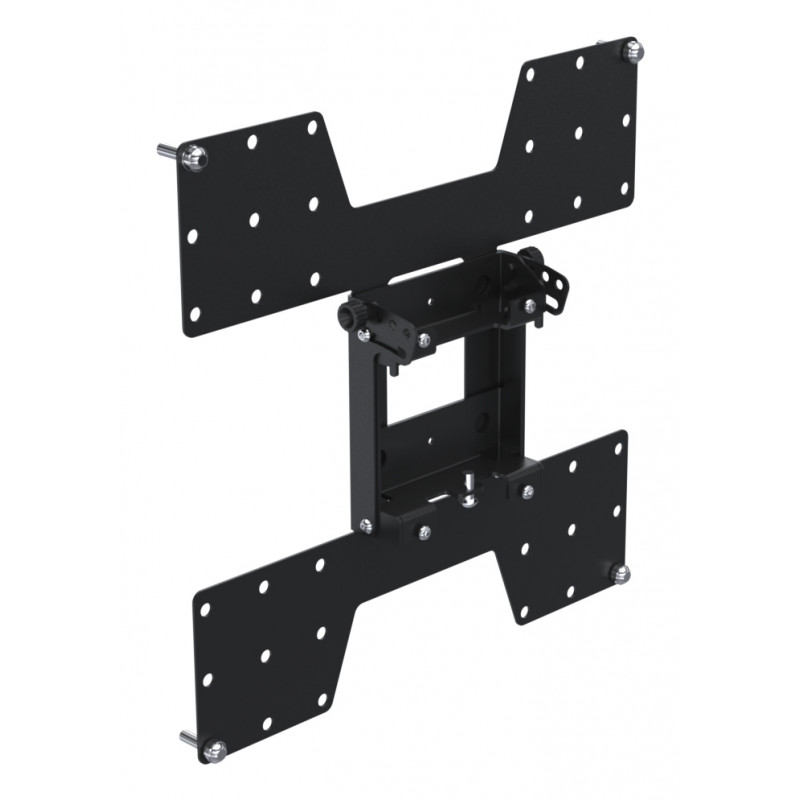

Ergonomic Solutions Soporte VESA 200/300/400 con inclinación

Large-format displays often end up mounted flat against the wall, forcing viewers into awkward angles and creating glare. This heavy-duty steel bracket solves that by adding smooth tilt adjustment, so you can angle the screen up to 10° forward or backward for optimal viewing comfort. It supports VESA patterns from 200x200 up to 400x400, making it compatible with a wide range of 32" to 65" screens weighing up to 45 kg.

Who is it for

Ideal for conference rooms, digital signage, home theaters, and retail displays where a single large screen needs to be securely wall-mounted with adjustable tilt. Perfect for installers and IT professionals who need a reliable, anti-theft mounting solution.

Main features

• Accommodates VESA 200x200, 300x300, 400x400 and intermediate patterns (200x300, 200x400, 300x200, 300x400, 400x200, 400x300)
• Tilt range: -10° to +10° for glare reduction and better viewing angles
• Supports displays from 32" to 65" with a maximum weight of 45 kg
• Low-profile design: only 65 mm from wall to back of screen
• Heavy-gauge steel construction with powder-coated black finish
• Integrated cable management clips keep wires tidy
• Anti-theft design for public or semi-public installations
• Includes all necessary mounting hardware for wood stud or concrete walls

Specifications

• Mounting type: Wall mount
• VESA compatibility: 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400 mm
• Screen size range: 32" - 65"
• Maximum weight capacity: 45 kg (99 lbs)
• Tilt angle: -10° to +10°
• Distance from wall: 65 mm
• Material: Heavy-gauge steel
• Finish: Powder-coated
• Colour: Black
• Number of displays supported: 1
• Cable management: Integrated clips
• Installation: Wall stud (wood/concrete)
• Mounting hardware: Included
• Security: Anti-theft design

Tips

Before installation, verify that your display's VESA pattern and weight fall within the supported ranges. For concrete walls, use appropriate anchors (not included). To maximize cable management, route cables through the integrated clips before final tightening. If you need to adjust tilt after installation, slightly loosen the tilt mechanism, reposition, and retighten.
