Ermenrich Seek TV50 Cámara Termográfica 256x192 25Hz -20°C a +550°C

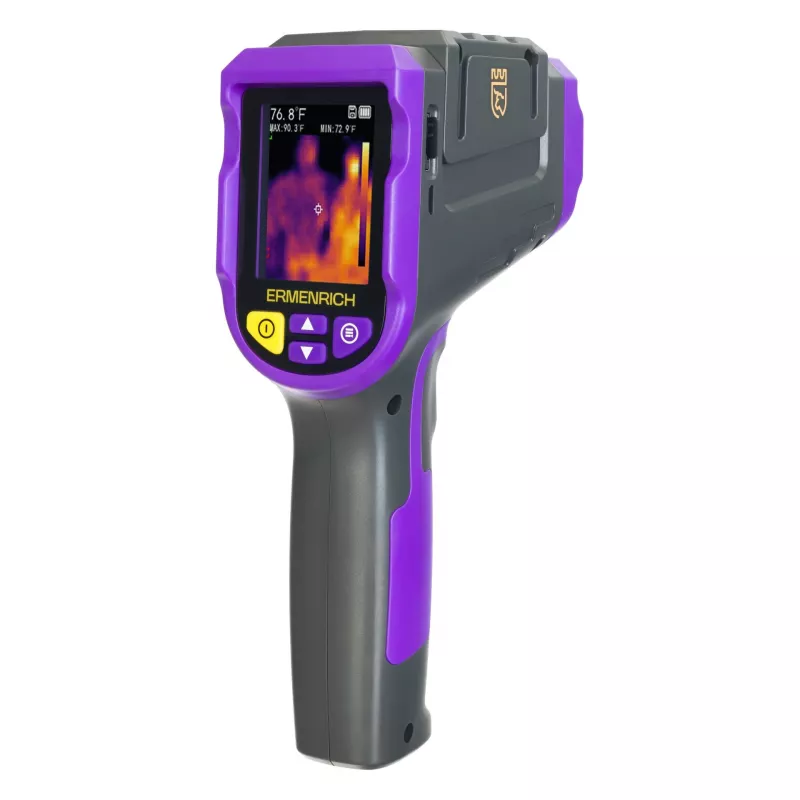

The Ermenrich Seek TV50 Thermal Camera is a high-performance handheld thermal imaging device designed for professional diagnostics, electrical inspections, building maintenance, and HVAC applications. With a 256x192 pixel detector, 12 μm pixel pitch, and NETD <40 mK, it delivers crisp thermal images with excellent temperature sensitivity. The camera features a 9.7 mm focal length, 17.5° × 13.1° field of view, and a 2.8-inch color display with 320x240 resolution. It supports multiple image modes (Thermal, Fusion, PIP, Visible Light) and 8 color palettes. Temperature measurement range spans -20°C to +550°C with ±2°C or ±2% accuracy. Built-in 16GB storage, rechargeable 5000mAh Li-ion battery (up to 8 hours), USB-C connectivity, IP54 rating, laser pointer, LED light, and 1/4" tripod mount make it a versatile tool for any professional.

Advantages

High-resolution thermal imaging with superior sensitivity, long battery life, robust IP54-rated housing, and multiple imaging modes for detailed analysis. The laser pointer and LED light enhance usability in dark environments.

Suitable for

• Electrical panel inspections
• Building envelope diagnostics
• HVAC system troubleshooting
• Mechanical equipment monitoring
• Fire prevention and safety checks

Key specifications

• Detector Resolution: 256 x 192 pixels
• Pixel Pitch: 12 μm
• NETD: <40 mK (@25°C, F#1.0)
• Frame Rate: 25 Hz
• Focal Length: 9.7 mm
• Field of View: 17.5° × 13.1°
• Digital Zoom: 1x, 2x, 4x
• Temperature Range: -20°C to +550°C
• Accuracy: ±2°C or ±2%
• Display: 2.8" 320x240 pixels
• Image Modes: Thermal, Fusion, PIP, Visible Light
• Color Palettes: 8
• Internal Storage: 16GB eMMC
• Battery: Rechargeable Li-ion 5000mAh, up to 8 hours
• Connectivity: USB Type-C
• IP Rating: IP54
• Operating Temperature: -10°C to +50°C
• Additional: Laser Pointer, LED Light, 1/4" Tripod Mount

Recommendations

For best results, use the thermal camera in stable ambient conditions and ensure the lens is clean. The included USB-C cable allows easy data transfer and charging. The 1/4" tripod mount enables hands-free operation for long-term monitoring.
