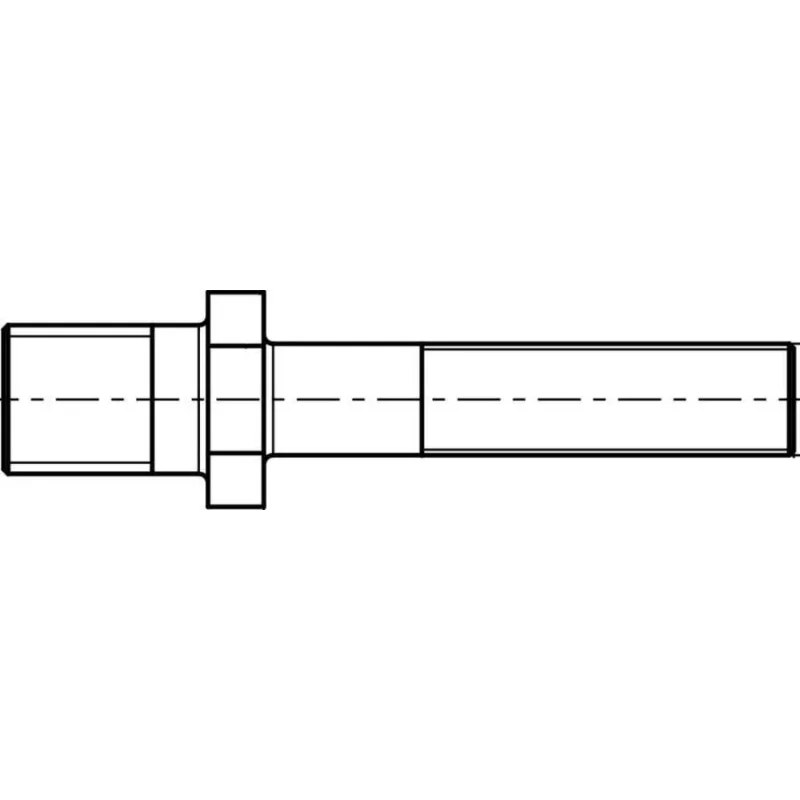

Espárrago M4 GESIPA FireBird 1435055 — pasador de posicionamiento roscado M4 para herramientas de remaches ciegos

Threaded Pin M4 GESIPA FireBird 1435055 is an M4 threaded locating pin designed for use with GESIPA FireBird rivet nut and fastening tools. It functions as a replaceable wear part that secures and aligns M4-sized rivet nut inserts during installation, ensuring correct seating and repeatable positioning in workshop and production environments. The component is intended for operators who require precise alignment of M4 rivet nuts when using GESIPA FireBird tools.

Advantages

The locating pin is manufactured to fit GESIPA FireBird tools and offers a straightforward replacement option to maintain tool accuracy and prolong service life. Its M4 threading provides secure engagement with corresponding mandrels or fixtures, reducing play and misalignment during setting operations. As a dedicated spare part, it minimizes downtime by allowing quick swap-out when wear is detected.

Suitable for

• Alignment and positioning of M4 rivet nuts during installation
• Maintenance and repair of GESIPA FireBird rivet nut tools
• Workshop and light production environments where consistent rivet nut placement is required

Key specifications

• Thread size: M4
• Function: Threaded locating pin for positioning and securing M4 rivet nut inserts
• Compatibility: Designed for use with GESIPA FireBird series rivet nut/fastening tools
• Typical application environment: Workshop and production settings
• Form factor: Replaceable wear part, screw-in installation

How to use

Install the threaded pin into the appropriate receptacle or mandrel of the GESIPA FireBird tool by screwing it in until fully seated. Use the tool according to the manufacturer’s operating instructions to place and set M4 rivet nuts; the pin will locate and hold the insert during the setting cycle. Inspect the pin periodically for signs of wear or deformation and replace it when fit or alignment is compromised to maintain consistent installation quality.

Recommendations

For reliable performance, use the threaded pin only with compatible GESIPA FireBird tools and M4 rivet nut inserts. Check thread engagement and cleanliness before installation, and replace the pin as part of routine maintenance when visible wear, burrs, or reduced locating precision are observed.
