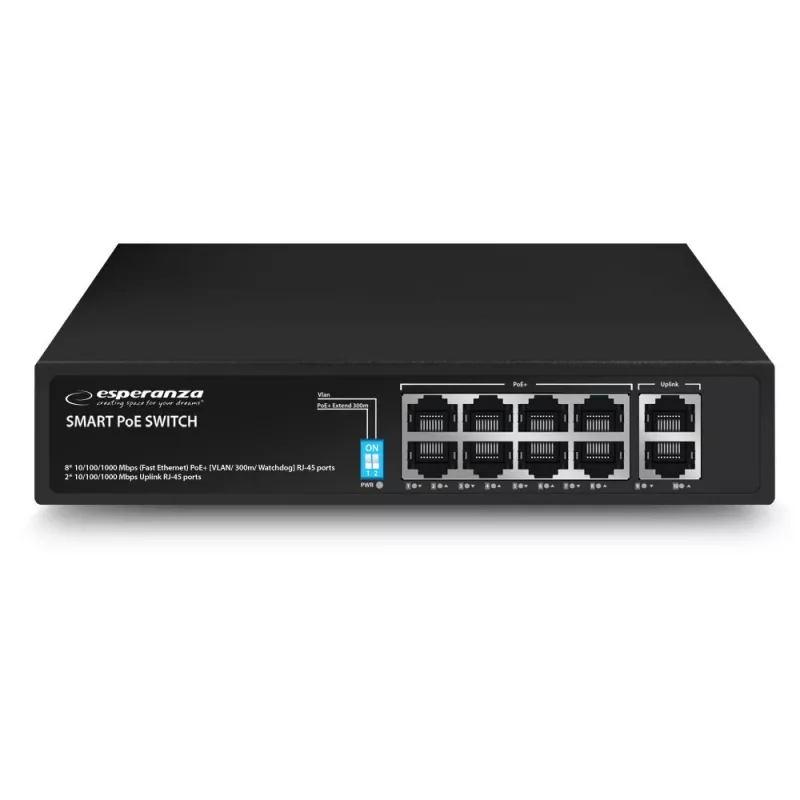

Esperanza Switch PoE+ 10 puertos 10/100/1000 120W MATRIX ENS108

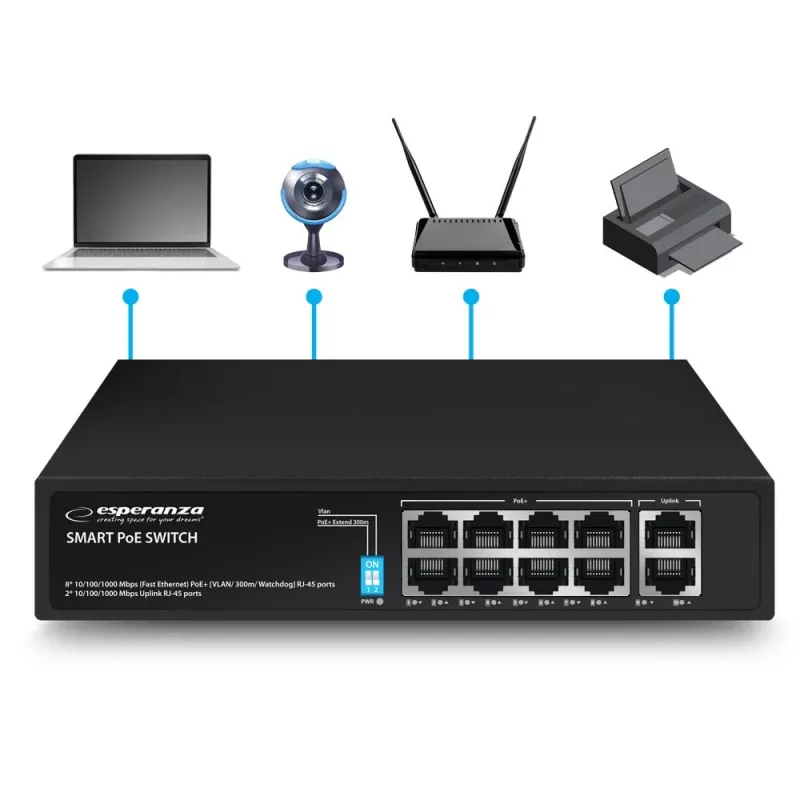

Powering multiple IP cameras, wireless access points, or VoIP phones over a single network cable often means dealing with a tangle of power adapters and limited reach. The Esperanza 10-Port PoE+ Switch eliminates that clutter by delivering both data and up to 30W of power per port through standard Ethernet cabling, with a total budget of 120W to keep your critical devices running without interruption.

Who is it for

This switch is built for small to medium business networks, surveillance installations, and smart offices that need reliable, high-speed connectivity for PoE-enabled endpoints. It suits IT administrators and installers who want a straightforward, unmanaged solution that works out of the box—no configuration required.

Main features

• 10 Gigabit ports: 8 PoE+ ports plus 2 dedicated uplink ports, all supporting 10/100/1000 Mbps for fast data transfer.
• IEEE 802.3af/at (PoE+) compliance with up to 30W per port and a 120W total power budget, ideal for demanding devices like PTZ cameras or high-power access points.
• 20 Gbps switching capacity and 14.88 Mpps forwarding rate ensure smooth traffic handling even under heavy load.
• Robust metal housing with desktop or rack-mount options (brackets included) for flexible deployment.
• Plug-and-play operation with automatic PoE detection and no software to install.

Specifications

• Total ports: 10 (8 x PoE+ 10/100/1000, 2 x uplink 10/100/1000)
• PoE standard: IEEE 802.3af/at, max 30W per port, total budget 120W
• Switching capacity: 20 Gbps; Packet forwarding rate: 14.88 Mpps
• MAC address table: 8K entries; Jumbo frame support: 9 KB
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
• Management: Unmanaged; Flow control: IEEE 802.3x full duplex, backpressure half duplex
• LED indicators: Power, Link/Act, PoE status
• Power supply: Internal AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 40°C; Storage temperature: -40°C to 70°C
• Humidity: 10% to 90% non-condensing
• Housing: Metal; Mounting: Desktop or rack-mountable (brackets included)

Tips

To maximize the PoE budget, connect high-power devices like multi-radio access points or motorized cameras directly to the switch rather than through another switch. For rack installations, use the included brackets and ensure proper airflow around the metal chassis to maintain optimal operating temperature.
