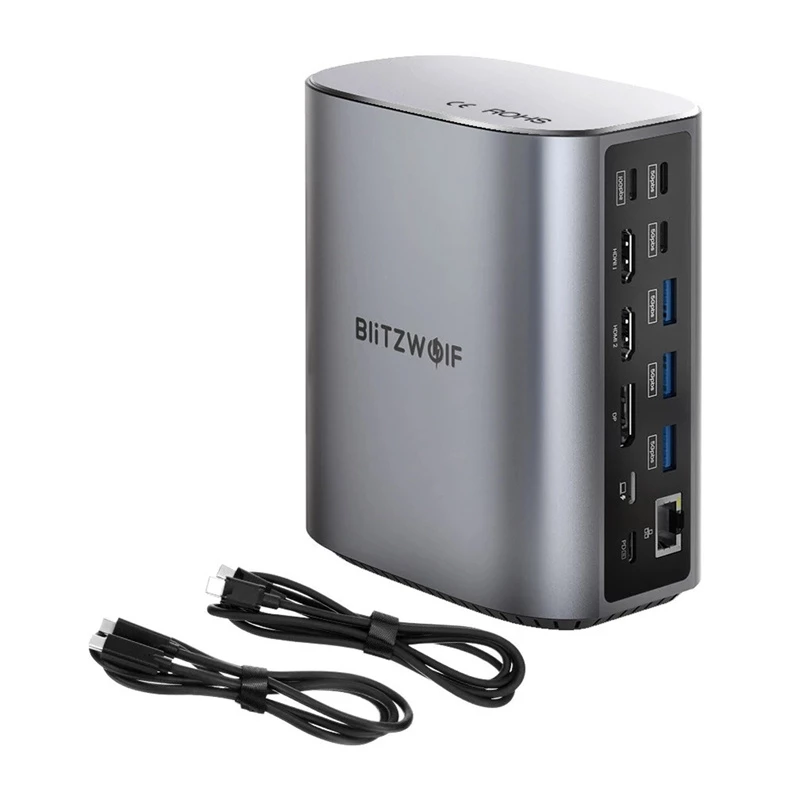

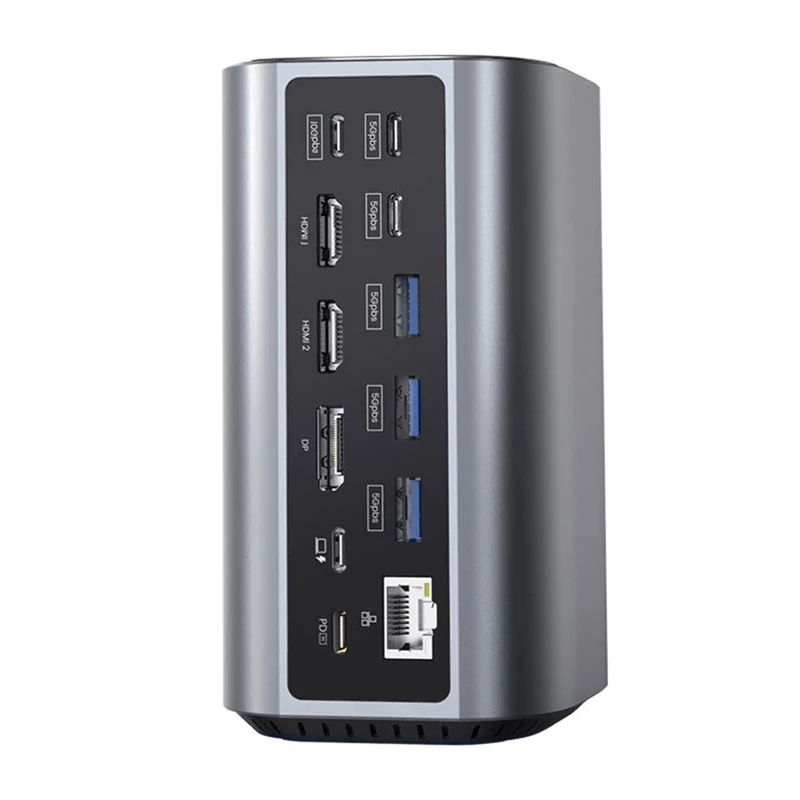

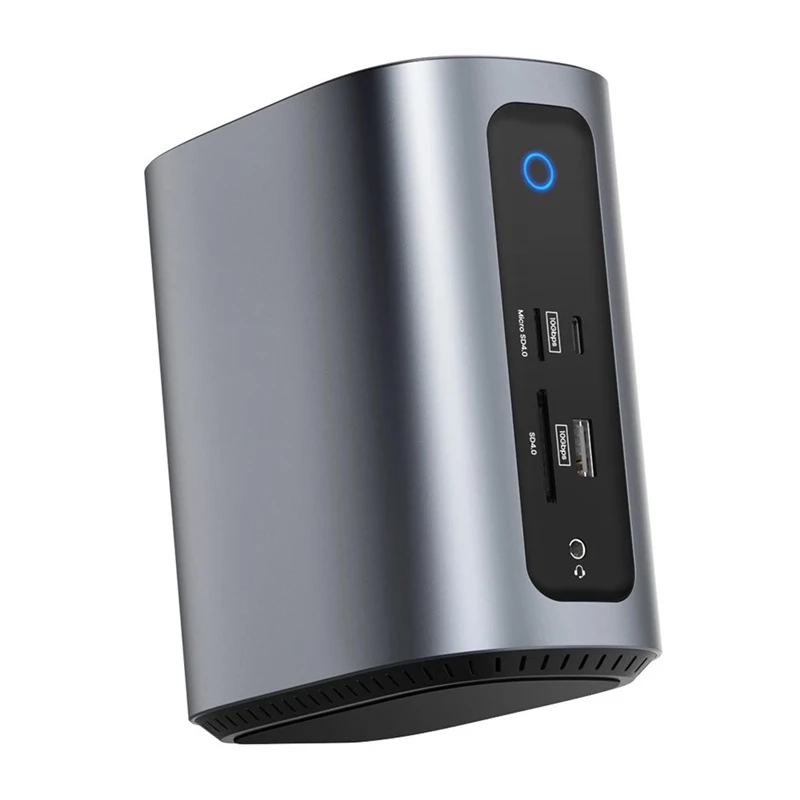

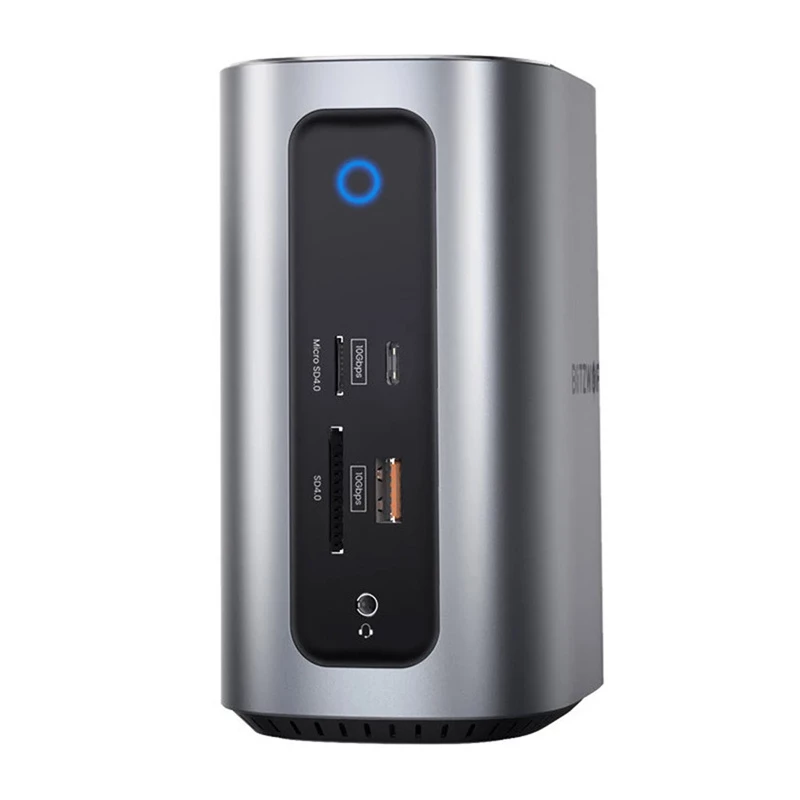

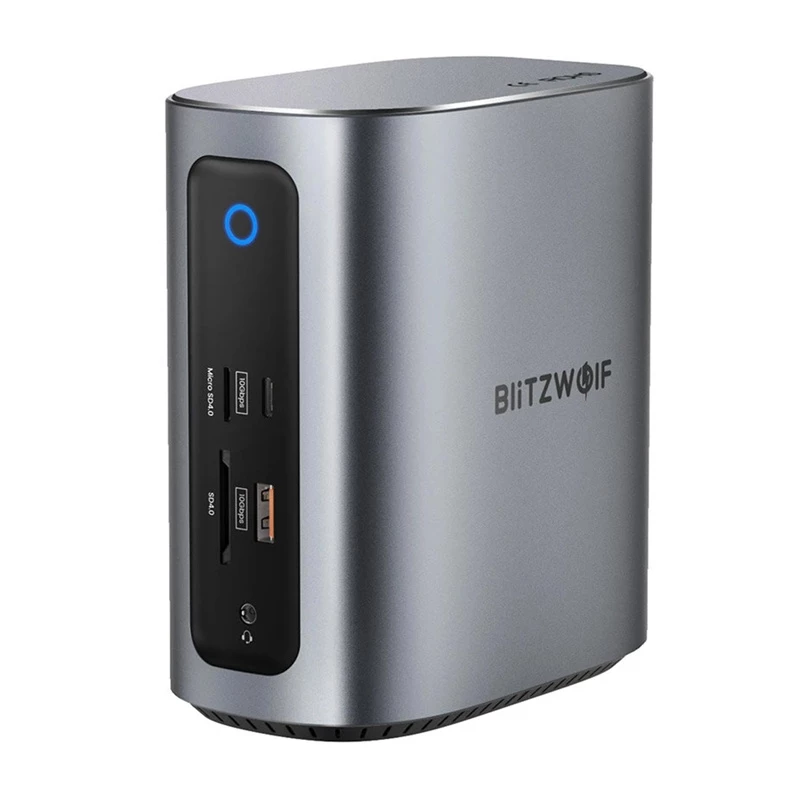

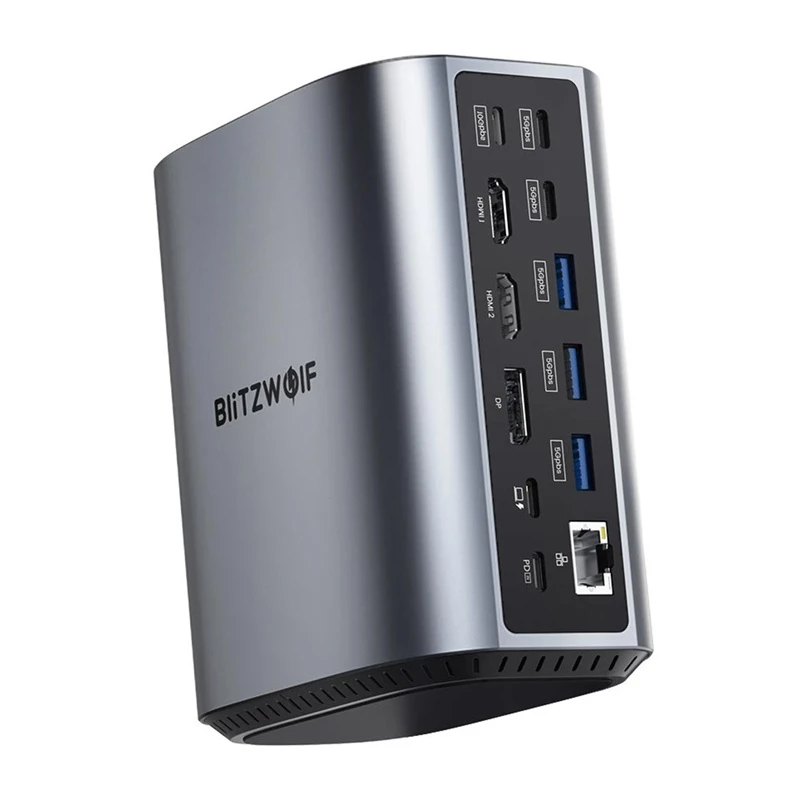

Estación de acoplamiento BlitzWolf BW-TH15 17en1 — 2x HDMI, DisplayPort, 4x USB-C

The BlitzWolf BW-TH15 docking station is a 17‑in‑1 hub that expands connectivity for laptops and desktops. It combines two HDMI ports, one DisplayPort and four USB‑C connectors together with multiple USB-A ports, card readers, a wired LAN port and an audio jack to support multi‑monitor setups, peripherals and power delivery from a single device.

Advantages

The docking station supports up to 4K@60Hz on each video output (two HDMI and one DisplayPort), offers high data transfer rates with multiple 10 Gbps and 5 Gbps ports, and provides USB‑C PD charging up to 100W (65W to the host port). A built‑in RJ45 port enables stable wired network at up to 1,000 Mbps, while SD and microSD card slots and a 3.5 mm audio port increase versatility for everyday office and home use.

Suitable for

• Connecting multiple external monitors for productivity or presentations
• Expanding ports for laptops with limited connectors
• Fast file transfer and backup with high‑speed USB and card readers
• Wired network connection for stable internet access
• Charging laptops and peripherals via USB‑C PD

Key specifications

• Manufacturer: BlitzWolf — Model: BW‑TH15
• Dimensions: 115 × 129 × 64 mm
• Video outputs: 2 × HDMI (4K@60Hz, DP 1.4), 1 × DisplayPort (4K@60Hz)
• USB ports: 4 × USB‑C (including USB‑C 3.2 Gen2 host), 3 × USB 3.0, 1 × USB 3.1
• Data speeds: USB‑C / USB 3.1 up to 10 Gbps; USB‑C / USB 3.0 up to 5 Gbps
• USB‑C PD charging: up to 100W (65W allocated to host port, 35W to the dock)
• Network: RJ45 up to 1000 Mbps
• Card readers: microSD / SD 4.0, up to 400 MB/s
• Audio: 3.5 mm audio combo (headphone/microphone)
• Operating temperature: −20℃ to +70℃

How to use

Connect the USB‑C host cable (USB‑C 3.2 Gen2 host port) from the BW‑TH15 to your laptop or desktop USB‑C port. Attach external monitors to the HDMI and/or DisplayPort outputs as required. Plug peripherals into USB‑A or USB‑C ports, insert SD or microSD cards into the appropriate slots and connect a wired network cable to the RJ45 port when needed. To charge the host device, connect a USB‑C PD power adapter to the dock’s PD input; the dock supports up to 100W PD with 65W available to the host.

Recommendations

For stable multi‑monitor output at 4K@60Hz, use compatible cables and ensure the host device supports DisplayPort Alt Mode or the required video output over USB‑C. When using high‑power charging and multiple peripherals simultaneously, use a PD adapter rated for sufficient total wattage to maintain performance.
