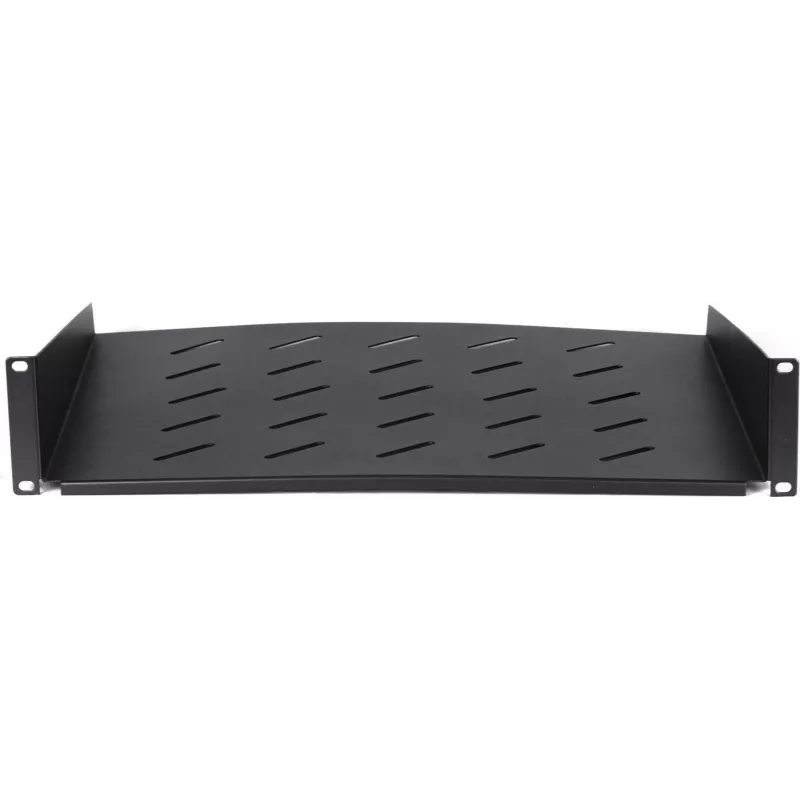

Estante fijo DSIT DS-FH2U400 2U para armarios de pared de 600 mm de profundidad, 400 mm de profundidad, negro

Wall-mount racks often lack sufficient horizontal surfaces for non-rack-mountable equipment, leaving devices stacked precariously or unsupported. The DSIT DS-FH2U400 shelf solves this by providing a sturdy, fixed platform that installs directly into 19-inch rails, turning unused vertical space into usable storage. Its 400 mm depth is matched to 600 mm deep wall cabinets, ensuring a flush fit without wasted space.

Who is it for

IT technicians and network administrators who manage wall-mounted enclosures in offices, retail back rooms, or industrial settings. It suits anyone needing to support small switches, patch panels, modems, or non-rack devices up to 25 kg in a secure, permanent position.

Main features

• 2U height occupies minimal rack space while offering a full-width shelf
• 400 mm deep shelf designed for 600 mm deep wall-mount cabinets
• Heavy-duty steel construction with powder-coated black finish (RAL 9005)
• Supports up to 25 kg evenly distributed load
• Fixed front-mount installation with 4-point screw-in design for stability
• Corrosion-resistant coating for long-term durability in varied environments
• Compatible with standard 19-inch rack rails

Specifications

• Brand: DSIT
• Model: DS-FH2U400
• MPN: DS-FH2U400
• EAN: 8719172412512
• Rack capacity: 2U
• Shelf depth: 400 mm
• Compatible cabinet depth: 600 mm
• Rack standard: 19-inch
• Material: Steel
• Colour: Black (RAL 9005)
• Load capacity: 25 kg
• Mounting type: Fixed
• Mounting position: Front-mounted
• Mounting points: 4-point
• Finish: Powder-coated
• Ventilation: No (solid design)
• Adjustability: Non-adjustable
• Intended use: Wall-mounted server cabinets
• Installation: Direct screw-in mounting
• Corrosion resistance: Yes
• Overall width: 483 mm
• Overall height: 88 mm

Tips

Before installation, verify that your wall-mount rack has a usable depth of at least 400 mm behind the front rails. Use cage nuts or clip nuts appropriate for your rack's rail type, and distribute the load evenly across the shelf surface to maintain stability. For equipment with side airflow requirements, ensure adequate clearance around the shelf to avoid overheating.
