Estantería de carga pesada Triton RAC-UP-850-H4 850 mm crema gris

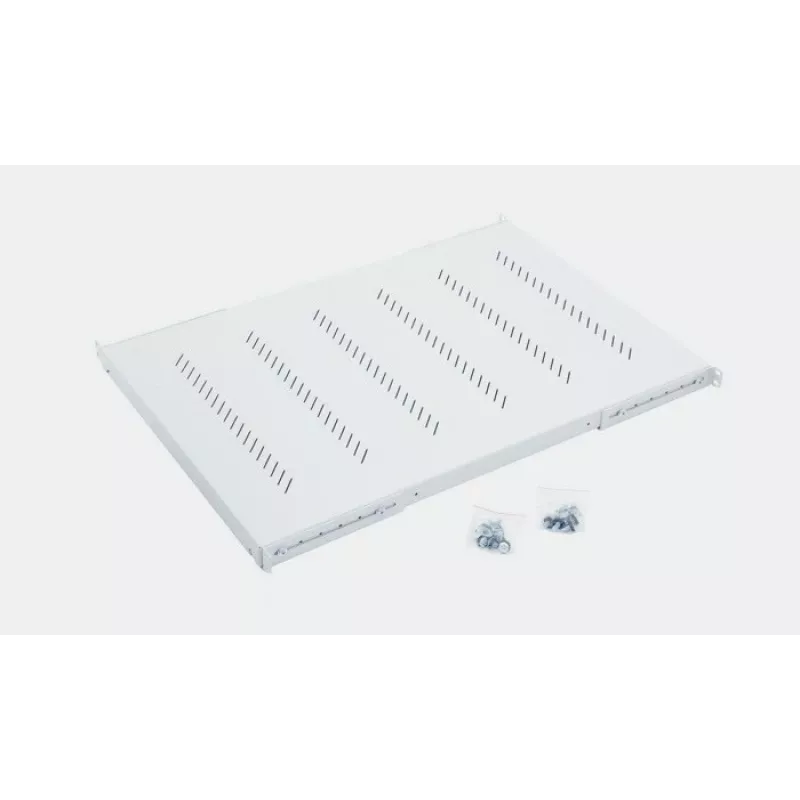

Where standard rack shelves flex and sag under dense networking gear, the TRITON RAC-UP-850-H4 holds firm. This 1U fixed shelf pairs an 850 mm depth with a 150 kg load rating, creating a stable platform for UPS units, blade enclosures, and other heavy equipment that would overwhelm lighter alternatives. The flat, reinforced steel deck resists bending, while the light grey RAL 7035 powder coating blends into both commercial and home IT cabinets without drawing attention.

Highlights

• 19-inch rack compatibility with four-point front and rear mounting for balanced support
• 150 kg maximum load capacity, verified for dense, bulky components
• 850 mm depth offers extra storage space beyond typical 600–750 mm shelves
• Solid, non-ventilated steel construction with a clean light grey finish
• Includes screws and cage nuts for immediate installation

In daily use

Mount the shelf at any 1U position in a standard rack or open-frame cabinet. The flat surface accommodates switches, routers, small servers, power supplies, and AV equipment without the need for additional brackets. Because the load is distributed across four mounting points, the shelf remains level even under maximum weight. The powder-coated surface resists scratches and wear, so the shelf maintains a professional appearance in high-traffic IT closets.

Full specifications

• Product Type: Heavy Duty Fixed Shelf
• Rack Compatibility: 19-inch (19")
• Rack Unit Height: 1U
• Mounting Type: Four-point mounting (front and rear)
• Load Capacity: 150 kg
• Shelf Depth: 850 mm
• Overall Width: 482.6 mm
• Overall Height (Installed): 44 mm
• Material: Steel
• Colour: Light Grey (RAL 7035)
• Finish: Powder Coated
• Ventilation: Solid (Non-ventilated)
• Mounting Hardware Included: Yes (Screws and Cage Nuts)
• Application: Servers, UPS, Network Devices, Other Heavy Equipment
• Standard Compliance: EN 60950-1

Final note

For installations where stability and load capacity are non-negotiable, the RAC-UP-850-H4 delivers a reliable, no-flex foundation that keeps heavy equipment secure and accessible.
