ESYLUX Defensor MD 230° 40 IR detector de movimiento PIR IP55 blanco 230V

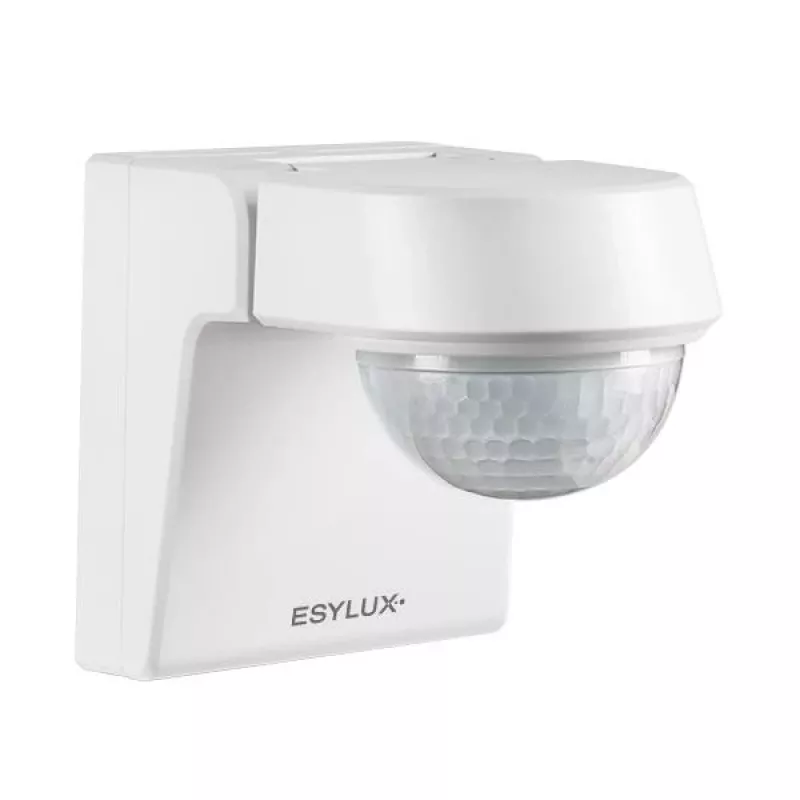

The ESYLUX Defensor MD 230° 40 IR is a high-performance passive infrared (PIR) motion detector designed for professional indoor and outdoor lighting control. With a wide 230° detection angle and a tangential range of up to 40 meters, it provides reliable presence detection for large areas such as warehouses, parking lots, and building entrances. The detector features a sleek white housing with IP55 protection, making it suitable for damp and dusty environments.

Advantages

This motion detector offers exceptional detection coverage with creep-under protection to minimize blind spots. The adjustable time setting (10 seconds to 30 minutes) and twilight threshold (2 to 2000 lux) allow flexible customization for energy-efficient lighting automation. Its robust UV-stabilised polycarbonate housing ensures long-lasting durability even in harsh outdoor conditions.

Suitable for

• Outdoor areas: building entrances, parking lots, pathways
• Large indoor spaces: warehouses, production halls, showrooms
• Security lighting and automatic lighting control

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 230°
• Detection range tangential: 40 m
• Detection range radial: 12 m
• Mounting type: Wall-mounted (surface)
• Protection rating: IP55
• Colour: White
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity resistive: 2300 W
• Switching capacity inductive: 1150 VA (cos φ = 0.5)
• Max. switching current: 10 A
• Time setting: 10 s - 30 min
• Twilight setting: 2 - 2000 lux
• Recommended installation height: 2.5 m
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Standby power consumption: approx. 0.5 W

Recommendations

For optimal performance, install the detector at a height of 2.5 m and ensure the detection area is free from obstructions. Pair with ESYLUX LED luminaires for maximum energy savings.
