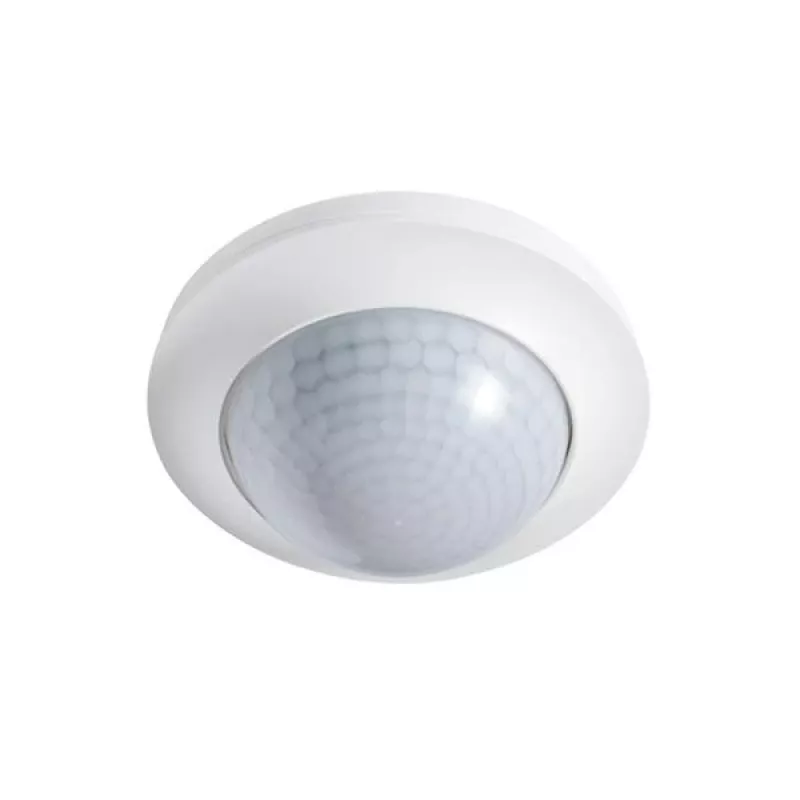

ESYLUX detector de presencia PD-C 360i/32 pasillo, 360°, 32m x 4m, empotrado en techo, blanco (RAL 9010)

The ESYLUX PD-C 360i/32 Corridor is a high-performance passive infrared (PIR) presence detector designed specifically for corridor applications. With a 360° detection angle and a corridor-optimized range of 32 m x 4 m at 3 m mounting height, it ensures reliable presence detection in long, narrow spaces. The detector features two independent channels: one for lighting control with constant light regulation and one for HVAC control. It is suitable for ceiling flush mounting and comes in a white (RAL 9010) UV-stabilised polycarbonate housing.

Advantages

Optimized corridor detection pattern reduces false triggers; self-learning short time delay adapts to user behavior; constant light control maintains desired illuminance; easy installation with 68 mm mounting hole.

Suitable for

• Corridors in office buildings, hotels, hospitals, and schools
• Areas requiring energy-efficient lighting and HVAC control
• Ceiling flush-mounted installations

Key specifications

• Detection angle: 360°
• Detection range (corridor): 32 m x 4 m at 3 m height
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity light: 2300 W (resistive)
• Switching capacity HVAC: 3 A
• Light measurement range: 5 - 2000 Lux
• Time delay: 30 sec - 30 min adjustable
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Mounting hole diameter: 68 mm
• Material: UV-stabilised polycarbonate

Recommendations

For optimal performance, install at 3 m height and ensure clear line of sight to the area. Pair with ESYLUX lighting and HVAC systems for integrated control.
