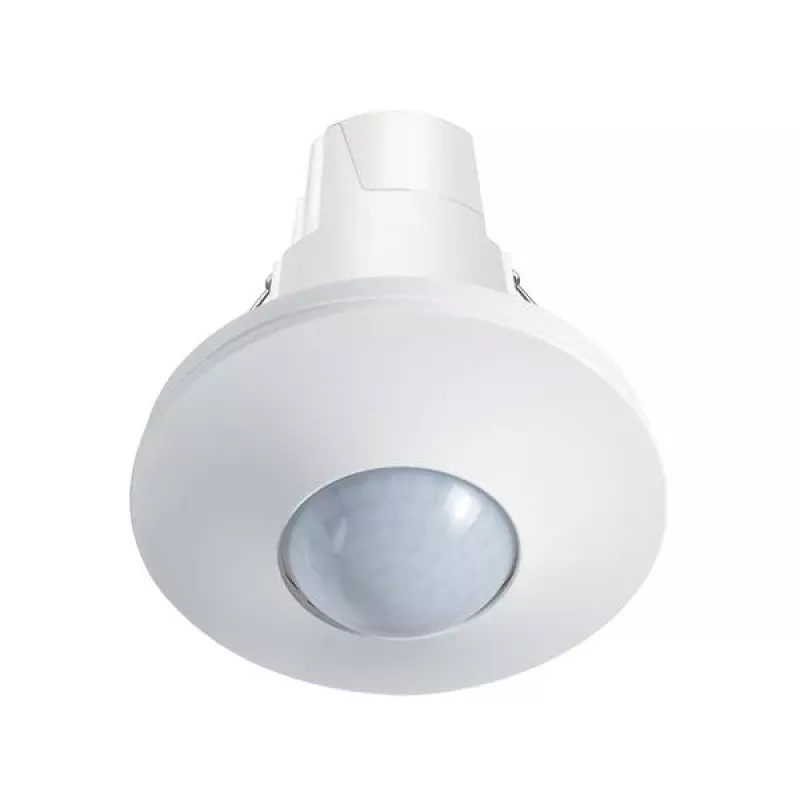

ESYLUX ESY PD-C 360bt/8 APC20 PS plus DALI-2 detector de presencia de techo, 360°, 8 m, DALI-2, Bluetooth, blanco

With a 360° detection angle and an 8-metre presence detection range, the ESYLUX ESY PD-C 360bt/8 APC20 PS plus DALI-2 ceiling presence detector delivers precise, energy-efficient lighting control for modern commercial spaces. This flush-mounted sensor combines DALI-2 broadcast and addressable outputs with Bluetooth connectivity, enabling flexible commissioning via the ESYLUX Light Control App.

Overview

Engineered for ceiling installation at heights from 2.0 to 5.0 metres, this presence detector covers up to 50 m² at the optimal 2.5 m mounting height. It features a built-in light sensor with an adjustable range of 5 to 2000 lux and a time delay from 60 seconds to 120 minutes, ensuring lighting responds accurately to occupancy and ambient conditions. The device operates on 230 V AC and consumes only 0.5 W, making it an efficient choice for constant light control, HVAC control, scene control, and manual override functions.

What stands out

• 360° detection angle with Ø 8 m presence detection area at 2.5 m height
• DALI-2 broadcast and addressable control outputs for flexible integration
• Bluetooth connectivity for wireless configuration via the ESYLUX Light Control App
• Adjustable light sensor (5–2000 lux) and time delay (60 s–120 min) for customised operation
• Flush ceiling mounting with a compact visible height of 22 mm and installation opening of Ø 68 mm
• Robust UV-stabilised polycarbonate housing in white (RAL 9010) with IP20 protection

Technical details

• Brand: ESYLUX
• Model: ESY PD-C 360bt/8 APC20 PS plus DALI-2
• MPN: EP10428272
• EAN: 4015120428272
• Detection angle: 360°
• Detection area (presence at 2.5 m height): Ø 8 m (50 m²)
• Mounting type: Ceiling flush-mounted
• Recommended mounting height: 2.0–5.0 m (optimal 2.5 m)
• Protection type: IP20
• Protection class: II
• Operating temperature: -25 °C to +50 °C
• Power supply: 230 V AC / 50 Hz
• Power consumption: 0.5 W
• Control outputs: DALI-2 (broadcast/addressable), Bluetooth
• Light sensor range: 5–2000 lux
• Time delay: 60 s–120 min (adjustable)
• Colour: White (RAL 9010)
• Housing material: UV-stabilised polycarbonate
• Installation opening diameter: Ø 68 mm
• Visible height after installation: 22 mm
• Connectivity: Bluetooth (ESYLUX Light Control App)
• Functions: Constant light control, HVAC control, scene control, manual override

Our verdict

The ESYLUX PD-C 360bt/8 APC20 PS plus DALI-2 is a versatile and efficient presence detector that excels in demanding commercial environments. Its DALI-2 and Bluetooth capabilities, combined with precise detection and flexible settings, make it a top choice for modern lighting automation projects.
