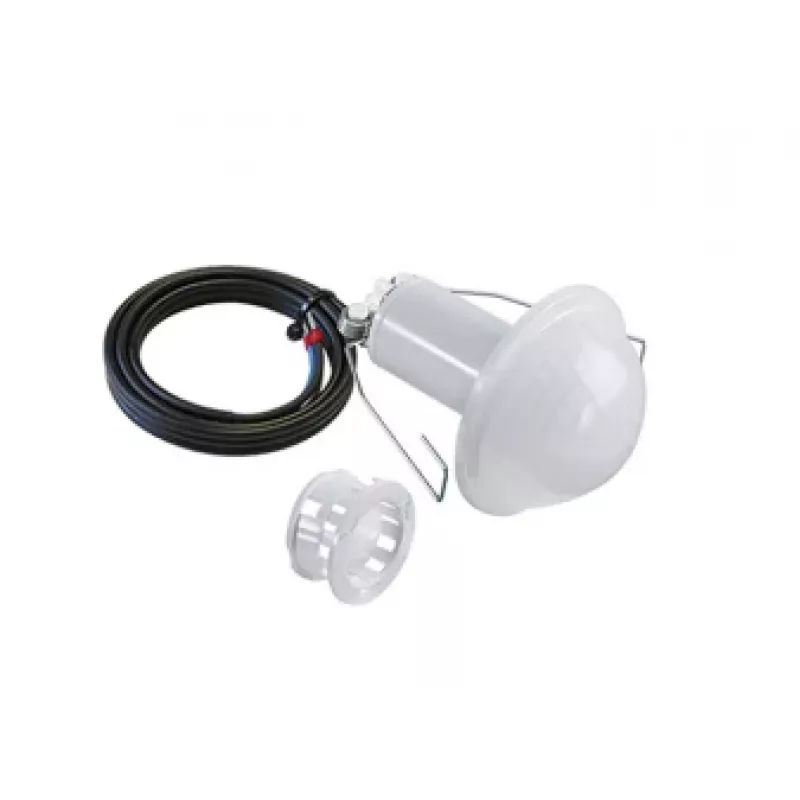

ESYLUX MD-C360i/12 mini sensor infrarrojo pasivo (PIR) - con cable - 12 m - techo - interior - blanco

The ESYLUX MD-C360i/12 mini is a high-quality passive infrared (PIR) sensor designed for ceiling mounting in indoor environments. With a 360° detection angle and a detection diameter of 12 meters (at 3 m mounting height), it provides reliable presence and motion detection for lighting control. The sensor is wired and operates at 230 V AC, making it suitable for professional installations in commercial and residential buildings.

Advantages

Energy-efficient standby power consumption of less than 0.5 W, adjustable time delay (10 sec to 60 min) and twilight switch (5-2000 Lux), and a compact design with a cut-out diameter of only 25 mm for discreet integration.

Suitable for

• Ceiling-mounted motion detection in offices, corridors, stairwells, and storage rooms
• Automatic lighting control in indoor areas
• Energy-saving applications with presence-dependent switching

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 12 m (at 3 m mounting height)
• Mounting type: Ceiling (recessed)
• Recommended mounting height: 2.0 - 3.0 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power (resistive): 2300 W
• Max. switching power (LED): 300 W
• Time delay: 10 sec - 60 min (adjustable)
• Twilight switch: 5 - 2000 Lux (adjustable)
• Protection class: IP20
• Ambient temperature: 0 °C to +50 °C
• Colour: White
• Material: UV-stabilised polycarbonate
• Cut-out diameter: 25 mm
• Installation depth: 36 mm
• Standby power consumption: < 0.5 W
• Control output: 1x Light (switching)
• Connectivity: Wired

Recommendations

For optimal performance, mount the sensor at a height of 2.5 m and ensure the detection area is free of obstructions. Pair with compatible LED loads for energy-efficient lighting control.
