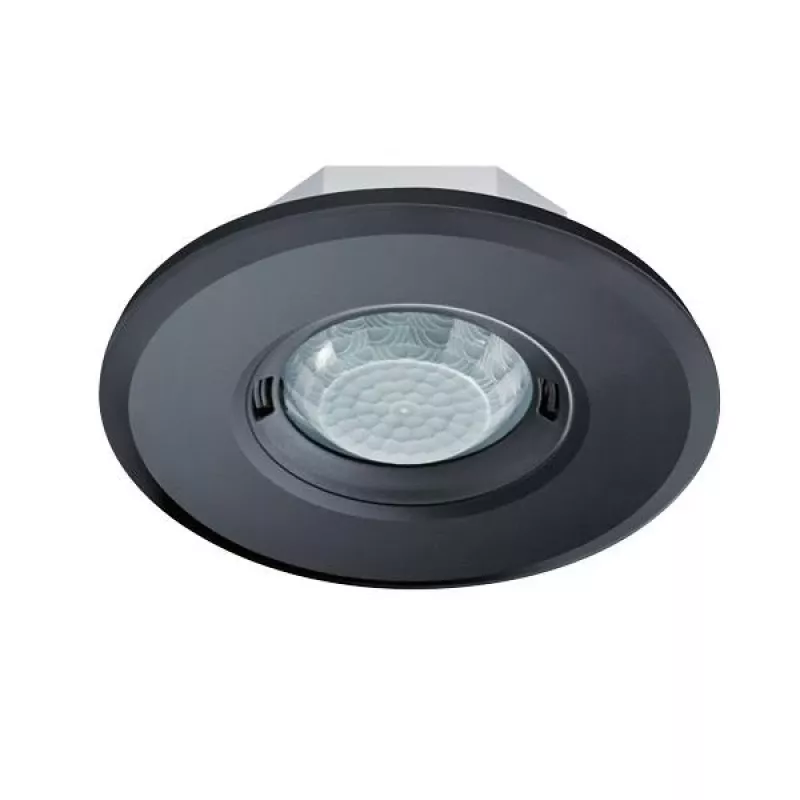

ESYLUX MD-FLAT 360i/8 ROUND BLACK detector de movimiento PIR de techo 360° 8m presencia 24m movimiento

The ESYLUX MD-FLAT 360i/8 ROUND BLACK is a high-quality passive infrared (PIR) motion detector designed for ceiling flush mounting. It provides reliable presence and motion detection with a 360° detection angle, making it ideal for automatic lighting control in commercial and residential spaces. The sleek round design in black blends seamlessly into modern interiors.

Advantages

Energy-efficient lighting control with adjustable time delay (30 sec to 30 min) and light sensor range (5-2000 lux). The detector features a standby power consumption of only 0.5 W, contributing to reduced energy costs. Easy installation with a ceiling cut-out diameter of 60 mm and low installation depth of 24 mm.

Suitable for

• Office rooms and meeting areas
• Corridors and stairwells
• Classrooms and training rooms
• Showrooms and retail spaces
• Any indoor area requiring automatic presence-based lighting

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Presence detection range: Ø 8 m (at 3 m mounting height)
• Motion detection range: Ø 24 m (at 3 m mounting height)
• Mounting type: Ceiling flush mount
• Mounting height: 2.0 - 4.0 m (optimal 2.5 - 3.0 m)
• Colour: Black
• Protection class: IP20
• Power supply: 230 V AC, 50/60 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive): 1150 VA
• Light sensor range: 5 - 2000 lux
• Time delay setting: 30 sec - 30 min, Pulse
• Standby power consumption: approx. 0.5 W
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Installation depth: 24 mm
• Ceiling cut-out diameter: Ø 60 mm
• Control options: Potentiometer, optional remote control
• Number of channels: 1 (Light switching)

Recommendations

For optimal performance, mount the detector at a height of 2.5 to 3.0 meters. Use the optional remote control for convenient adjustment of settings. Ensure the ceiling cut-out is precisely 60 mm for a flush fit.
