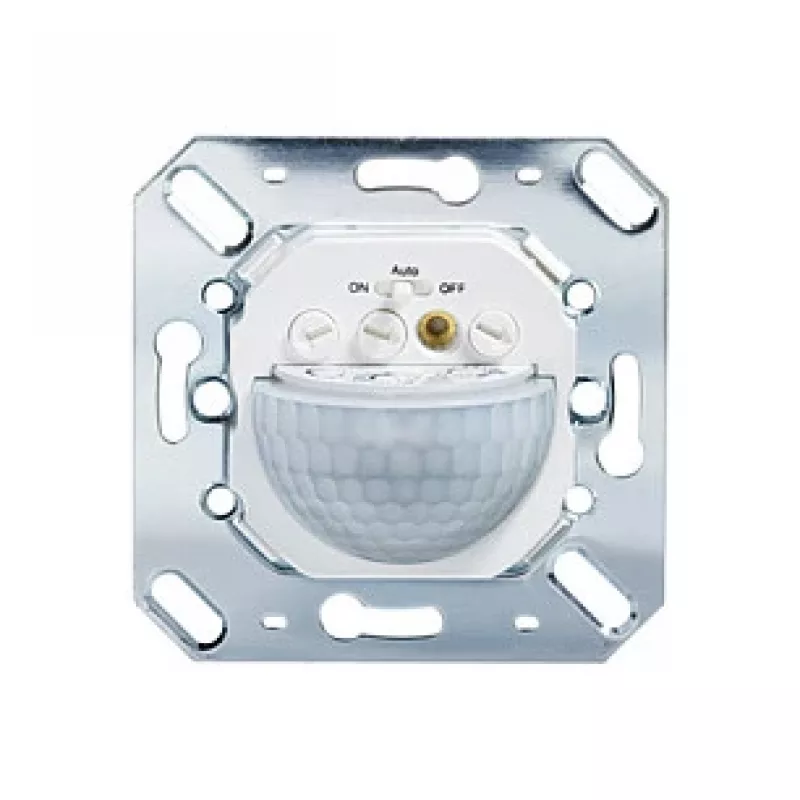

ESYLUX PD 180i/R sensor infrarrojo pasivo (PIR) - con cable - 16 m - pared - interior - metálico

The ESYLUX PD 180i/R is a high-quality passive infrared (PIR) sensor designed for indoor wall mounting. It provides reliable motion detection with a 180° detection angle and a range of up to 16 meters, making it ideal for automatic lighting control in corridors, stairwells, offices, and other commercial or residential spaces. The sensor features a fully automatic control mode with adjustable time delay and light sensitivity, ensuring energy-efficient operation.

Advantages

Energy-saving automatic lighting control; easy installation with screw terminals; robust UV-stabilised polycarbonate housing; adjustable time delay (60 sec to 16 min) and light threshold (5-2000 lux); suitable for harsh environments with IP40 protection and wide temperature range.

Suitable for

• Indoor lighting control in offices, meeting rooms, and corridors
• Stairwells and hallways
• Warehouses and storage areas
• Residential applications such as garages and basements

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Mounting Type: Wall (flush-mounted)
• Detection Angle: 180°
• Detection Range (Tangential): 16 m
• Optimal Installation Height: 1.7 - 2.2 m
• Operating Voltage: 230 V AC, 50 Hz
• Switching Capacity (Resistive): 2300 W
• Switching Capacity (Inductive): 1150 VA (cos φ = 0.5)
• Power Consumption: approx. 0.5 W
• Light Sensor Range: 5 - 2000 Lux
• Time Delay Setting: 60 sec - 16 min (or pulse)
• Protection Class: IP40
• Ambient Temperature: -25 °C to +50 °C
• Output Type: Relay (NO contact)
• Max. Inrush Current: 16 A (for 20 ms)
• Housing Material: UV-stabilised polycarbonate
• Colour: White
• Control Mode: Fully automatic
• Terminal Type: Screw terminals

Recommendations

For optimal performance, install the sensor at a height of 1.7 to 2.2 meters. Ensure the detection area is free from obstructions. This sensor is not suitable for outdoor use.
