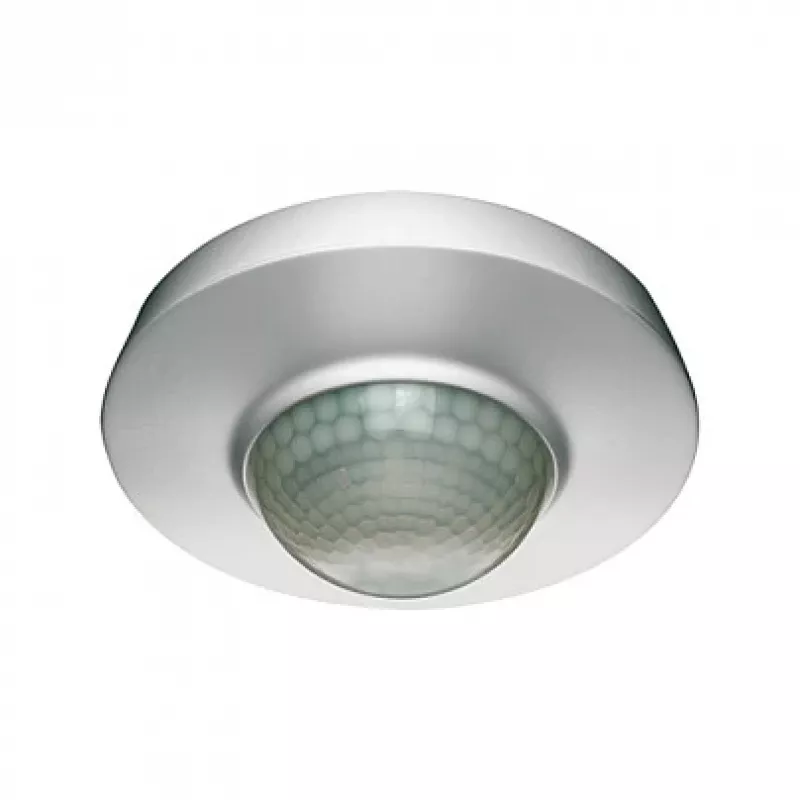

ESYLUX PD 360/24 Slave sensor infrarrojo pasivo (PIR) con cable montaje en techo interior blanco

The ESYLUX PD 360/24 Slave is a passive infrared (PIR) sensor designed for ceiling flush mounting in indoor environments. As a slave unit, it requires a compatible master detector to operate, making it an ideal component for scalable lighting control systems. With a 360° detection angle and a range of up to 24 meters (at 3 m mounting height), it provides reliable presence detection for large areas.

Advantages

Energy-efficient operation with power consumption below 0.1 W. Easy integration into existing wired systems with a maximum cable length of 100 m to the master unit. Robust UV-stabilised polycarbonate housing ensures long-lasting performance. The sensor features 1120 switching segments across 10 detection levels for precise area coverage.

Suitable for

• Office buildings and conference rooms
• Warehouses and storage facilities
• Educational institutions and lecture halls
• Retail spaces and showrooms
• Any indoor area requiring automated lighting control

Key specifications

• Sensor type: Passive Infrared (PIR)
• Operating mode: Slave (requires master detector)
• Mounting type: Ceiling flush mount
• Installation location: Indoor
• Connectivity technology: Wired
• Detection angle: 360°
• Detection range (diameter): 24 m (at 3 m mounting height)
• Recommended mounting height: 2.5 - 3.5 m
• Colour: White
• Protection class (IP rating): IP20
• Operating voltage: 12-24 V DC (supplied by master)
• Power consumption: < 0.1 W
• Ambient temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Detection zones: 1120 switching segments
• Detection levels: 10
• Max. cable length to master: 100 m (with 0.75 mm² cable)

Recommendations

For optimal performance, pair the PD 360/24 Slave with a compatible ESYLUX master detector. Ensure the mounting height is between 2.5 and 3.5 meters to achieve the specified detection range. Use appropriate cable gauge (0.75 mm²) for distances up to 100 meters.
