ESYLUX PD-CE 360i/8 sensor infrarrojo pasivo (PIR) - cableado - 8 m - techo - interior - blanco

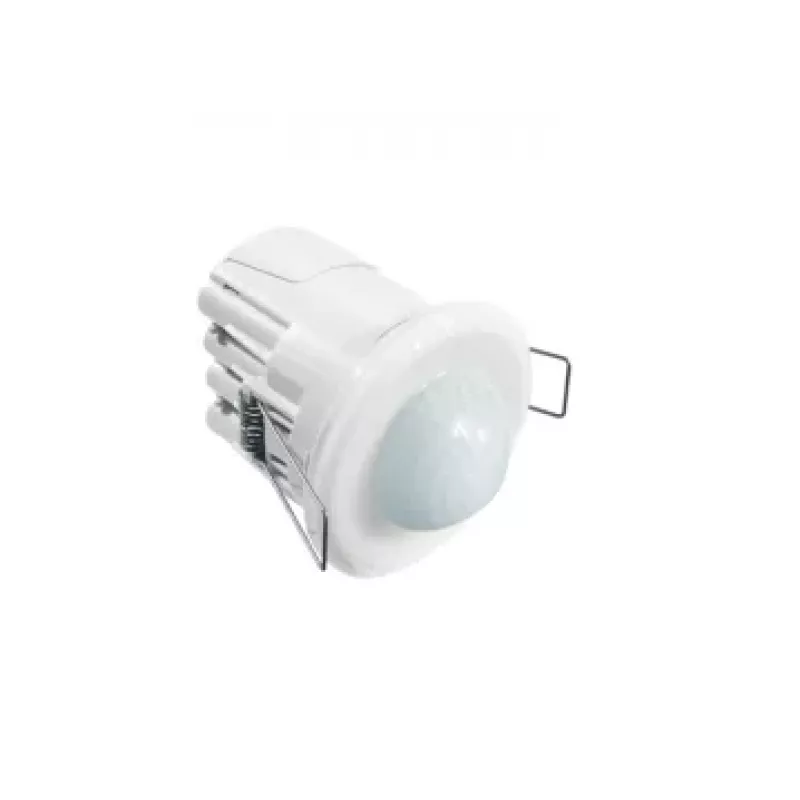

The ESYLUX PD-CE 360i/8 is a high-quality passive infrared (PIR) sensor designed for ceiling mounting in indoor environments. It provides reliable presence and motion detection with a 360° detection angle, making it ideal for automatic lighting control in offices, meeting rooms, classrooms, and other commercial spaces. The sensor features a detection range of up to 8 m diameter for presence and 24 m for motion at a mounting height of 2.5 m, ensuring comprehensive coverage.

Advantages

Energy-efficient lighting control with adjustable time delay and light level settings. The sensor includes a test function for easy commissioning, a pulse function for staircase lighting, and a teach-in function for adapting to ambient conditions. Its compact, flush-mount design in traffic white (RAL 9010) blends seamlessly with modern ceilings.

Suitable for

• Automatic lighting control in offices, meeting rooms, and conference areas
• Presence detection in classrooms and training rooms
• Motion-activated lighting in corridors, stairwells, and storage rooms
• Integration into building management systems for energy savings

Key specifications

• Sensor technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range presence: Ø 8 m (at 2.5 m mounting height)
• Detection range motion: Ø 24 m (at 2.5 m mounting height)
• Mounting type: Ceiling (flush-mount)
• Recommended mounting height: 2.5 - 3 m
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity resistive: 2300 W (cos φ = 1)
• Switching capacity inductive: 1150 VA (cos φ = 0.5)
• Switching capacity LED: 600 W
• Time setting range: 60 sec - 30 min, Pulse
• Light level setting range: 5 - 2000 Lux
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Colour: Traffic White (RAL 9010)
• Power consumption: approx. 0.5 W
• Output type: Relay (1 NO contact)
• Material: UV-stabilised polycarbonate
• Special features: Test function, Pulse function, Teach-in function

Recommendations

For optimal performance, mount the sensor at the recommended height of 2.5 m and ensure the detection area is free from obstructions. Pair with ESYLUX LED luminaires or compatible dimmable ballasts for best energy savings. Always follow local electrical regulations during installation.
