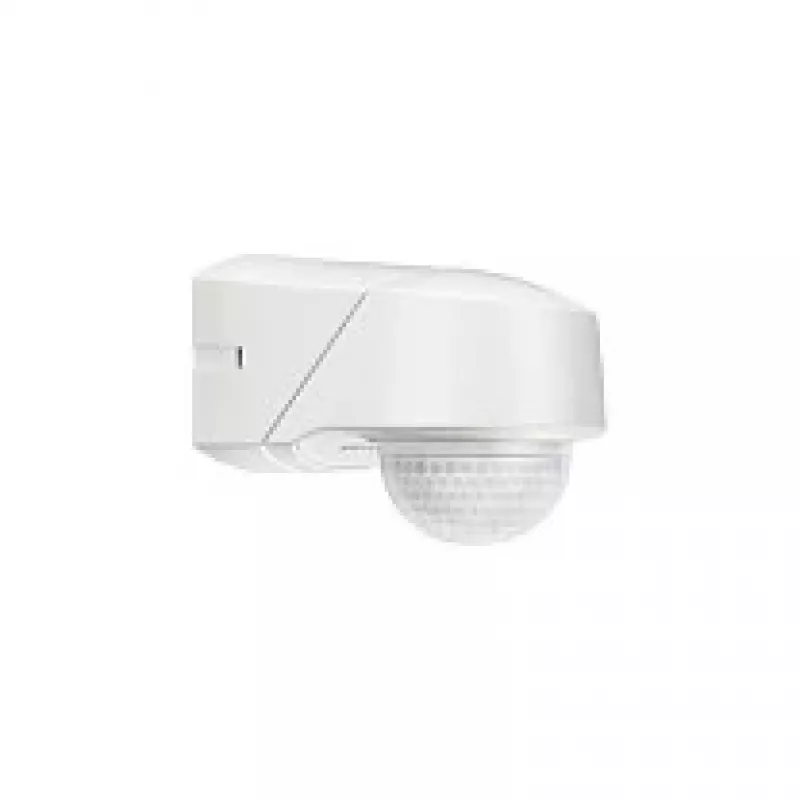

ESYLUX RC 230i UC sensor infrarrojo pasivo (PIR) - con cable - 40 m - techo/pared - exterior - blanco

The ESYLUX RC 230i UC is a high-performance passive infrared (PIR) sensor designed for reliable motion detection in both indoor and outdoor environments. With a wide 230° detection angle and a maximum range of 40 meters, this wired sensor is ideal for large areas such as warehouses, parking lots, and building entrances. Its robust IP54-rated housing ensures durability against dust and water splashes, while the UV-stabilised polycarbonate material guarantees long-lasting performance even in harsh sunlight.

Advantages

This sensor offers exceptional flexibility with adjustable time settings (10 seconds to 60 minutes) and brightness thresholds (5 to 2000 lux), allowing precise control over lighting automation. The optional remote control enables convenient parameter adjustments without direct access to the unit. Its surface or flush-mount design simplifies installation on ceilings or walls, and the protection class II ensures safe operation without the need for an earth connection.

Suitable for

• Outdoor areas: building entrances, parking lots, pathways
• Indoor spaces: warehouses, corridors, large halls
• Commercial and industrial facilities requiring reliable motion detection

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 230°
• Detection range (diameter at 3m height): 14 m
• Detection area (at 3m height): 154 m²
• Operating voltage: 110–240 V AC, 50/60 Hz
• Max. switching capacity (incandescent/halogen): 2300 W
• Max. switching capacity (LED, typical): 500 W
• Time setting range: 10 s – 60 min
• Brightness threshold range: 5 – 2000 Lux
• IP rating: IP54
• Protection class: II
• Ambient temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Recommended mounting height: 2.0 – 3.0 m
• Control options: Remote control (optional)

Recommendations

For optimal performance, mount the sensor at a height of 2.0 to 3.0 meters and ensure the detection area is free from obstructions. Use the optional remote control for easy configuration of time and brightness settings. This sensor is compatible with a wide range of lighting loads, including LED, incandescent, and halogen lamps.
