ESYLUX RC-Filter EP10426988 supresión de interferencias para cargas inductivas

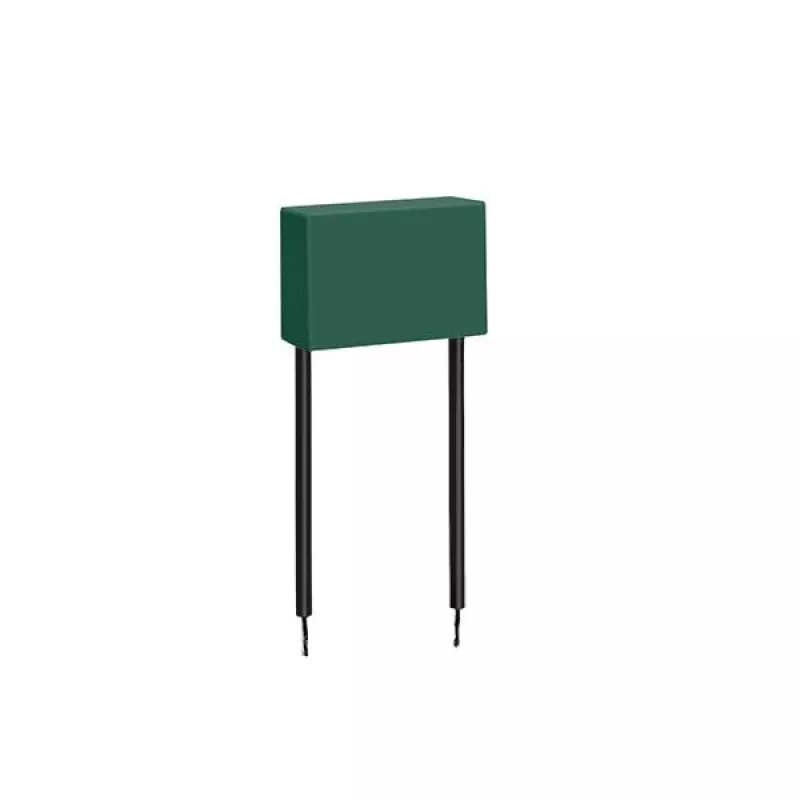

The ESYLUX RC-Filter EP10426988 is a high-quality interference suppression component designed to protect inductive loads in electrical installations. It effectively prevents flickering, humming, and premature wear of switching contacts, ensuring reliable operation of connected devices.

Advantages

Extends the lifespan of switching contacts by suppressing voltage spikes and interference. Reduces electromagnetic interference (EMI) for stable performance. Compact design allows easy parallel mounting to the load. Suitable for a wide range of inductive loads including motors, fans, transformers, and fluorescent lamps with conventional ballasts.

Suitable for

• Motion detectors and presence detectors
• Time switches and relays
• Contactors and switching devices
• Fluorescent lamps with conventional ballasts
• Motors, fans, and transformers

Key specifications

• Product Type: RC Filter
• Application: Interference Suppression for Inductive Loads
• Nominal Voltage: 230 V AC
• Capacitance: 0.1 µF
• Resistance: 100 Ω
• Max. Switching Current: 10 A
• Connection Type: 2-wire connection
• Mounting: Parallel to load
• Operating Temperature Range: -25 °C to +50 °C
• Protection Class: IP20
• Housing Material: Plastic
• Number of Wires: 2
• Cable Length: Approx. 100 mm

Recommendations

For optimal performance, install the RC filter as close as possible to the inductive load. Ensure proper electrical connections and observe the specified voltage and current ratings. This filter is an essential component for maintaining the longevity and reliability of switching devices in industrial and commercial applications.
