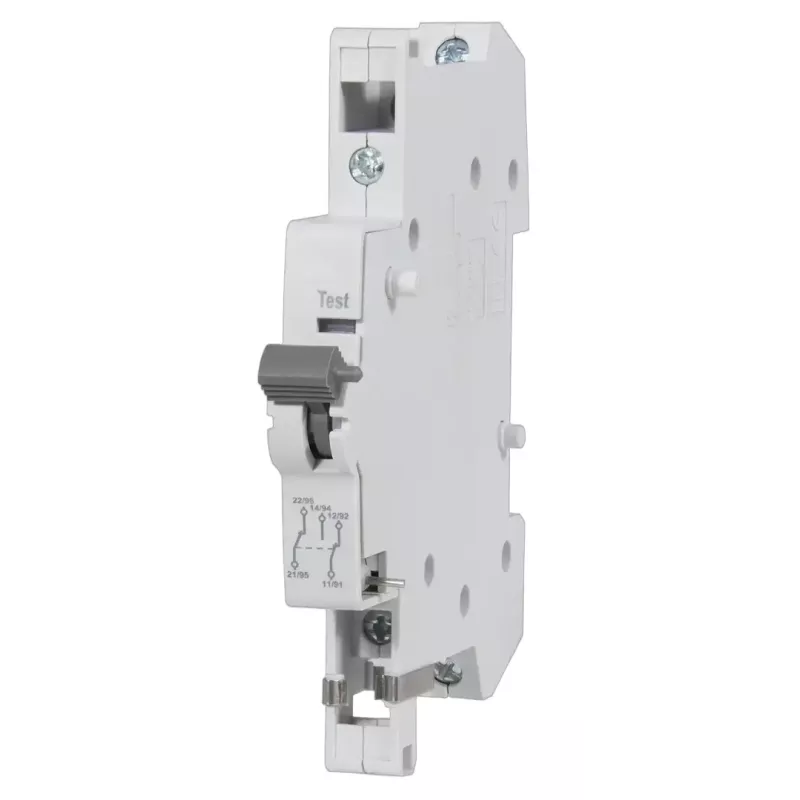

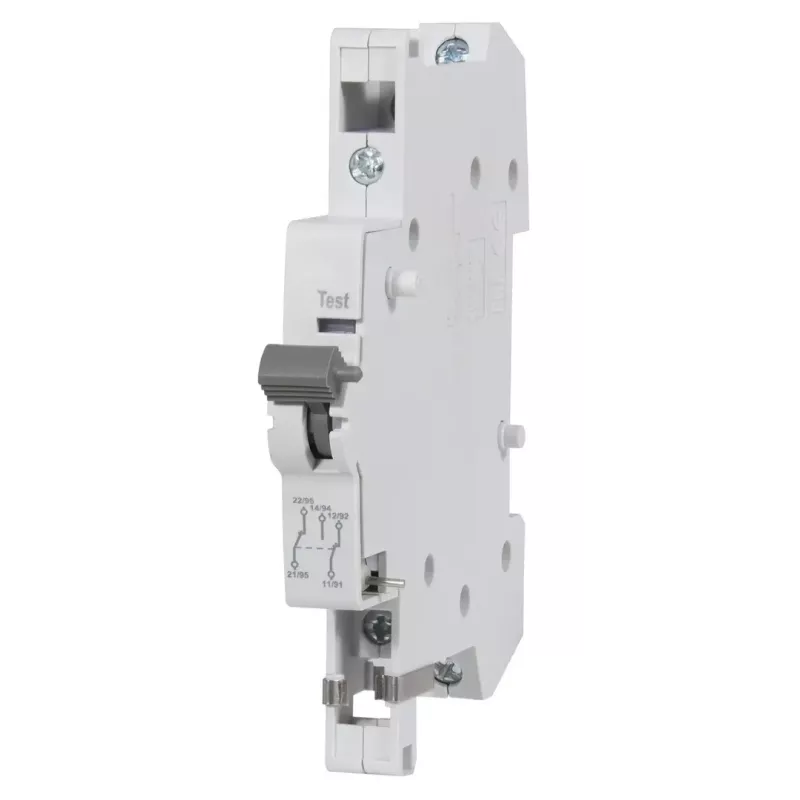

ETI 001908421 interruptor auxiliar/señal PS/SS para ETIMAT P6/P10, 1 NC + 1 NO, 6 A, 50/60 Hz

For electricians and panel builders integrating ETIMAT P6 or P10 miniature circuit breakers, the ETI 001908421 auxiliary/signal switch provides reliable status indication and auxiliary control. It clips onto the side of the breaker and offers one normally closed and one normally open contact, each rated for 6 A at 250 V AC, 50/60 Hz.

Key specifications

• Product type: Auxiliary/Signal Switch
• Contact configuration: 1 NC + 1 NO
• Rated current: 6 A
• Rated voltage: 250 V AC
• Rated frequency: 50/60 Hz
• Compatibility: ETIMAT P6 and P10 miniature circuit breakers
• Mounting: Side mounting (clip-on)

Why choose it

This switch is designed for straightforward integration with ETIMAT P6/P10 breakers, enabling remote monitoring or control of circuit status. Its dual contacts allow flexible wiring for indication or auxiliary circuits.

Ideal use cases

• Status indication for ETIMAT P6/P10 breakers in distribution boards
• Auxiliary control in industrial control panels
• Retrofit or new installations requiring breaker feedback

Good to know

The switch mounts directly on the side of compatible breakers without additional tools. It is intended for use with ETIMAT P6 and P10 series only.
