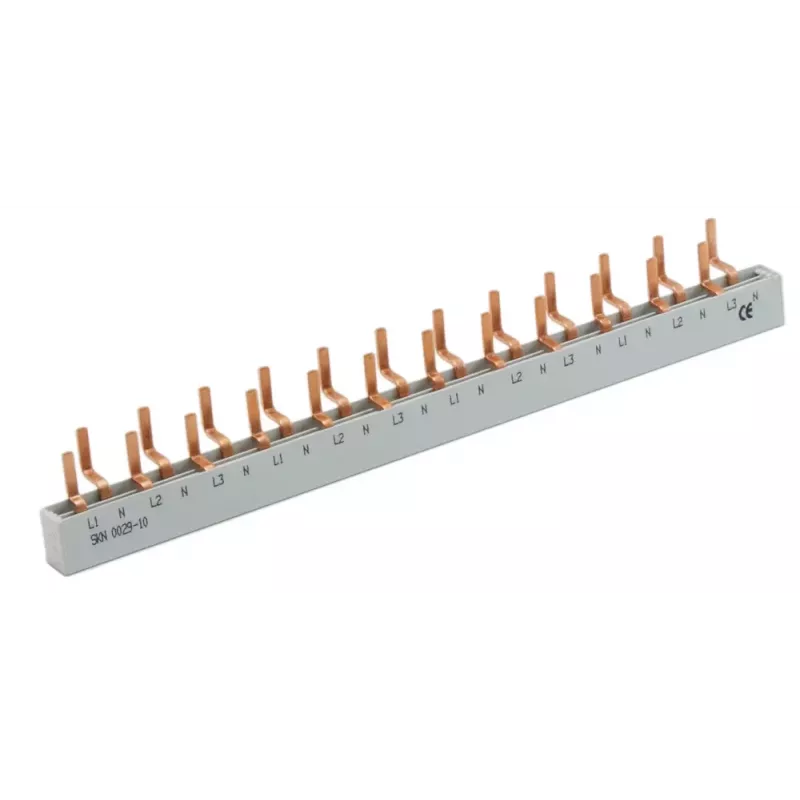

ETI 002921154 Barra colectora aislada SKN0029/10 3P para ETIMAT 1N, KZS 1M

Rated for 63 A and 230/400 V AC, this insulated pin-type busbar delivers reliable three-phase power distribution in a compact 10-module width.

Overview

The ETI 002921154 is an insulated busbar designed for use with ETIMAT 1N miniature circuit breakers and KZS 1M residual current devices. It features a pin connection method and mounts on a DIN rail. The busbar has 3 poles, a cross-section of 10 mm², and a length of 180 mm. The insulation is made of self-extinguishing plastic, and the conductor material is copper.

What stands out

• 63 A current rating for robust power distribution
• Pin-type connection for quick and secure installation
• Self-extinguishing plastic insulation for enhanced safety
• Compatible with ETIMAT 1N MCBs and KZS 1M RCDs

Technical details

• Number of poles: 3
• Number of modules: 10
• Module pitch: 18 mm
• Cross-section: 10 mm²
• Conductor material: Copper
• Insulation material: Self-extinguishing plastic
• Mounting type: DIN rail mount
• Length: 180 mm
• Colour: Grey
• Short-circuit current rating (Icw): 10 kA
• Operating temperature: -25°C to +70°C
• Degree of protection: IP20
• Standard compliance: IEC/EN 60947-7-1
• Number of phases: 3-phase
• Application: Power distribution in electrical enclosures

Our verdict

A dependable busbar for three-phase distribution in modular installations, offering solid performance and safety features.
