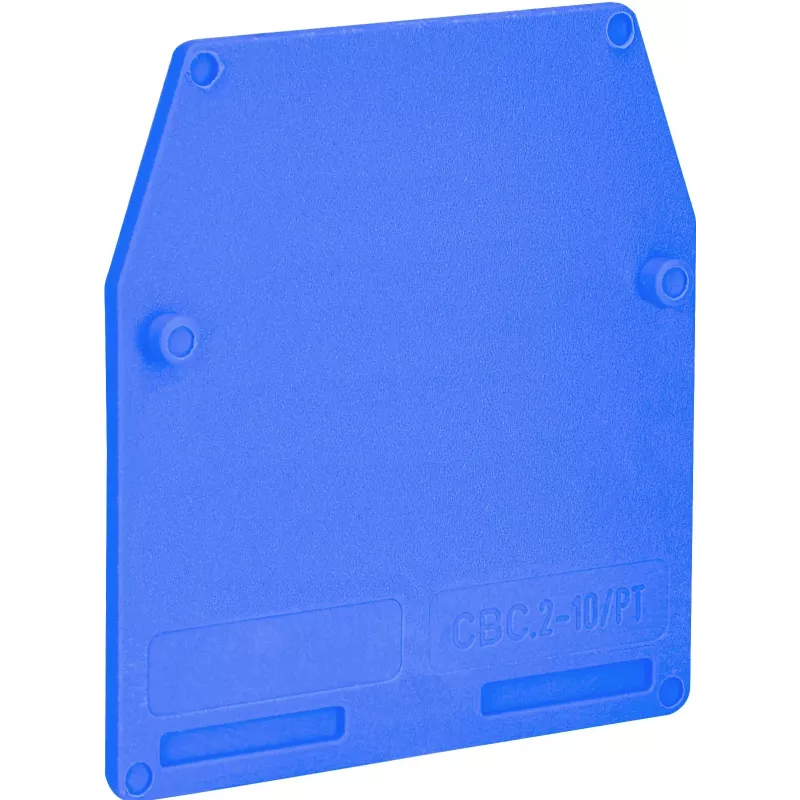

ETI ESC-CBC.2-10/PTB cubierta para borne de neutro, azul 003903050

The ETI ESC-CBC.2-10/PTB end cover is a dedicated accessory for the ESC series neutral terminal blocks, providing a clean, insulated finish at the end of a terminal block assembly. Its blue colour matches the neutral conductor identification, simplifying visual inspection in industrial control panels and electrical installations.

Highlights

• Snap-on mounting for quick installation without tools
• Polyamide material with UL94 V-0 flammability rating
• Compatible with 10 mm wide ESC series terminal blocks
• Operating temperature range from -40°C to +100°C

In daily use

This end cover clips securely onto the terminal block, preventing accidental contact with live parts and protecting the last terminal from debris. It also gives the assembly a professional, finished appearance. The compact design does not obstruct wiring or adjacent components.

Full specifications

• Product type: End cover
• Colour: Blue
• Material: Polyamide (PA)
• Compatibility: ETI ESC series, 10 mm width
• Mounting: Snap-on / clip-on
• Function: Insulation, protection, aesthetic finish
• Operating temperature: -40°C to +100°C
• Flammability rating: UL94 V-0
• Standards: IEC 60947-7-1, RoHS, CE
• Dimensions (W x H x D): 1.5 x 47.5 x 60 mm

Final note

A simple, reliable end cover that completes your terminal block installation with the right colour coding for neutral connections.
