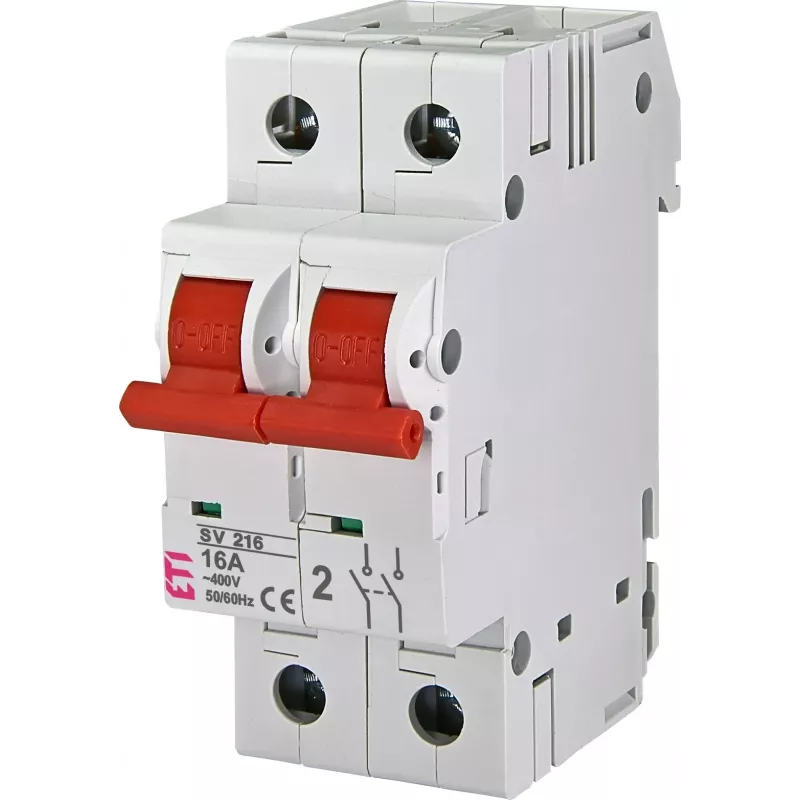

ETI SV 216 2P 16A interruptor seccionador de carga modular 002423221

The ETI SV 216 is a 2-pole modular load break switch rated at 16 A, engineered for reliable circuit isolation and switching in residential and commercial installations. With a rated operational voltage of 230/400 V AC and a breaking capacity compliant with IEC/EN 60947-3, it delivers safe manual control of lighting, heating, and motor loads.

Overview

This switch mounts on standard 35 mm DIN rail (EN 60715) and occupies just 2 modules (36 mm) of width, making it ideal for distribution boards where space is at a premium. Screw terminals accept solid or stranded conductors from 1 to 25 mm², ensuring secure connections across a wide range of wiring sizes.

What stands out

• Rated impulse withstand voltage of 4 kV for enhanced surge resilience
• Mechanical life of 20,000 operations and electrical life of 10,000 cycles
• Operating temperature range from -25°C to +55°C for demanding environments
• Front protection degree IP40, terminals IP20

Technical details

• Number of poles: 2P
• Rated current (In): 16 A
• Rated operational voltage (Ue): 230/400 V AC
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Module width: 2 modules (36 mm)
• Terminal capacity (solid): 1 - 25 mm²
• Terminal capacity (stranded): 1 - 25 mm²
• Standard compliance: IEC/EN 60947-3
• Degree of protection (front): IP40
• Degree of protection (terminals): IP20
• Electrical life: 10,000 cycles
• Mechanical life: 20,000 cycles
• Operating temperature range: -25°C to +55°C
• Connection type: screw terminals

Our verdict

A compact, high-performance load break switch that meets strict international standards, offering dependable isolation and switching for modern electrical installations.
