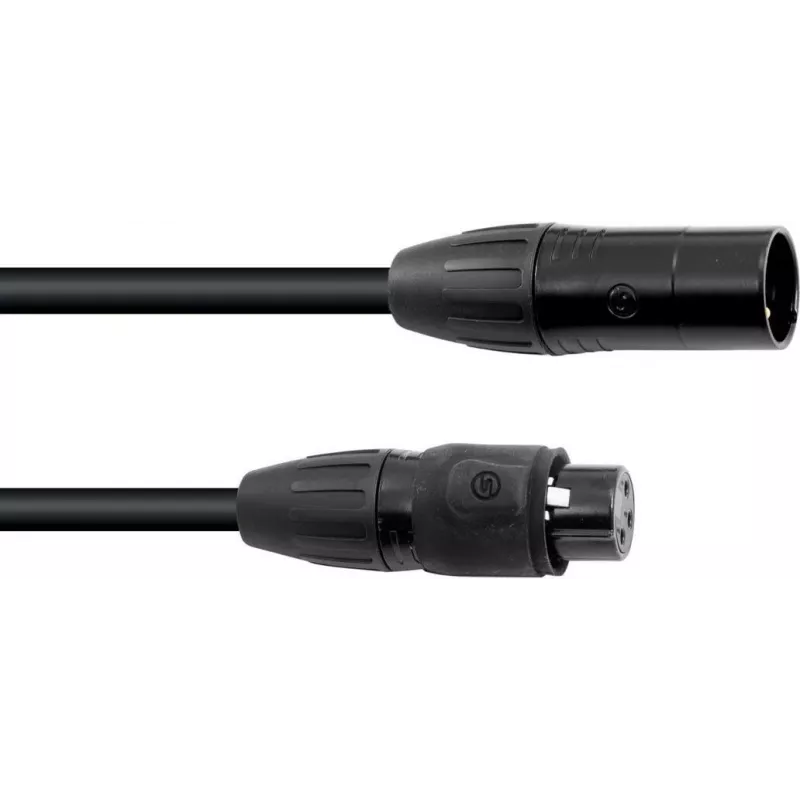

EUROLITE cable DMX SEC-1 IP65 3 pines 15m negro para exterior

With an IP65 rating and a rugged PVC jacket, this 15-metre DMX cable is built to withstand rain, dust, and UV exposure, ensuring reliable signal transmission in demanding outdoor environments. Its 110-ohm impedance and braided shielding guarantee clean DMX512 data over long runs.

Overview

The EUROLITE SEC-1 IP65 is a professional-grade DMX cable designed for outdoor lighting installations, festivals, and architectural applications. It features 3-pin XLR connectors with nickel-plated contacts and metal housings, providing secure connections and excellent durability. The cable uses oxygen-free copper conductors (2 x 0.22 mm²) for minimal signal loss, while the braided shield protects against electromagnetic interference. With a length of 15 metres, it offers flexibility for large setups without signal degradation.

What stands out

• IP65-rated connectors and jacket for all-weather performance
• 110-ohm impedance precisely matched to DMX512 standard
• Oxygen-free copper conductors ensure pristine signal integrity
• Braided shielding rejects EMI and RFI noise
• Robust PVC jacket with UV resistance for long outdoor life
• Metal XLR housings with integrated strain relief

Technical details

• Cable type: DMX512 (3-pin XLR male to female)
• Length: 15 metres
• Colour: Black
• Impedance: 110 Ohm
• Conductor: Oxygen-free copper (OFC), 2 x 0.22 mm²
• Shielding: Braided shield
• Jacket: Robust PVC, UV-resistant
• Cable diameter: approx. 6.5 mm
• Connector housing: Metal
• Contact plating: Nickel
• IP rating: IP65 (dust-tight and protected against water jets)
• Operating temperature: -20°C to +70°C
• Strain relief: Integrated in connectors

Our verdict

The EUROLITE SEC-1 IP65 is a reliable, weatherproof DMX cable that delivers consistent performance in harsh conditions. Its rugged build and precise impedance make it a smart choice for outdoor events and permanent installations where signal integrity is critical.
