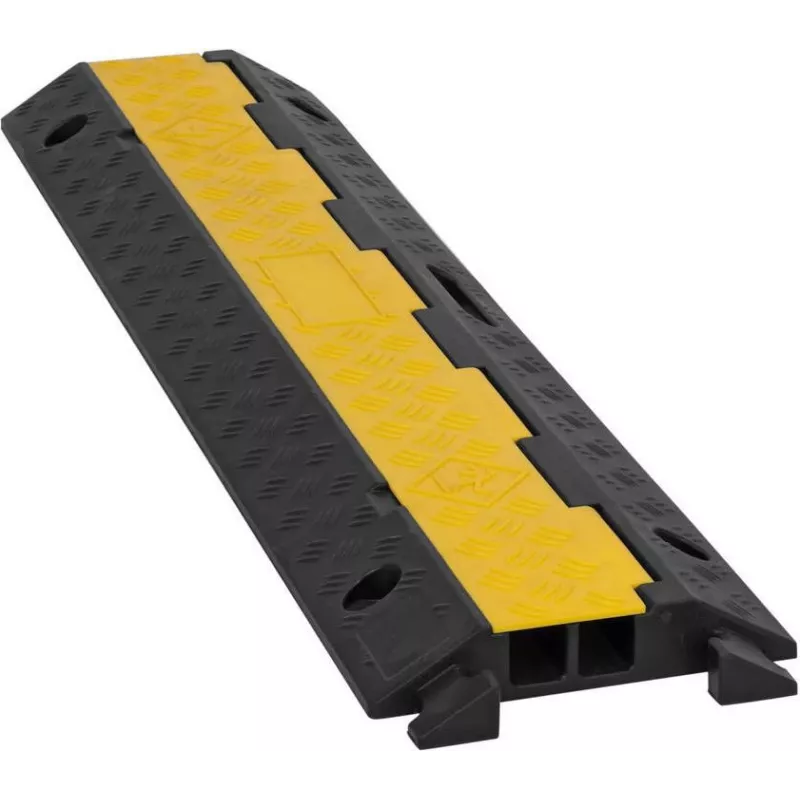

EUROLITE KB-2A Rampa portacables 2 canales 98x24x4,5 cm negro/amarillo capacidad de carga 5000 kg

Loose cables across walkways and driveways create serious trip hazards and risk damage to expensive wiring. The EUROLITE KB-2A cable bridge eliminates these dangers by safely covering up to two cables while supporting vehicles up to 5000 kg. Its high-contrast black and yellow design ensures visibility, and the modular interlocking system lets you extend coverage as needed.

Who is it for

Ideal for event technicians, construction sites, warehouses, and any location where cables must cross pedestrian or vehicle paths. Suitable for both indoor and outdoor use, this bridge protects cables from crushing and prevents accidents in high-traffic areas.

Main features

• Two channels, each 30 x 30 mm, accommodate cables up to 30 mm diameter
• Extreme load capacity of 5000 kg (5 tons) – safe for cars, forklifts, and heavy equipment
• Made from high-density rubber with UV resistance for long-lasting durability
• Anti-slip tread surface provides secure footing for pedestrians and vehicles
• Modular male/female connectors allow tool-free interlocking of multiple units
• Bright yellow lid enhances visibility, reducing trip risks in dim conditions
• Stable wide base prevents shifting under load
• Operates in temperatures from -20°C to +60°C

Specifications

• Brand: EUROLITE
• Model: KB-2A
• MPN: 80702923
• EAN: 4026397739992
• Dimensions: 98 x 24 x 4.5 cm (L x W x H)
• Number of channels: 2
• Channel dimensions: 30 x 30 mm (W x H)
• Max cable diameter per channel: 30 mm
• Material: High-density rubber
• Colour: Black / Yellow
• Max load capacity: 5000 kg
• Interlocking: Modular, male/female connectors
• Surface: Anti-slip tread
• UV resistant: Yes
• Temperature range: -20°C to +60°C
• Installation: Tool-free interlocking
• Application: Indoor and outdoor

Tips

For longer cable runs, connect multiple KB-2A bridges end-to-end using the integrated connectors. Ensure the surface is clean and flat before placement. For maximum visibility in low-light areas, position the yellow lid facing upward. Regularly inspect for wear, especially after heavy vehicle traffic.
