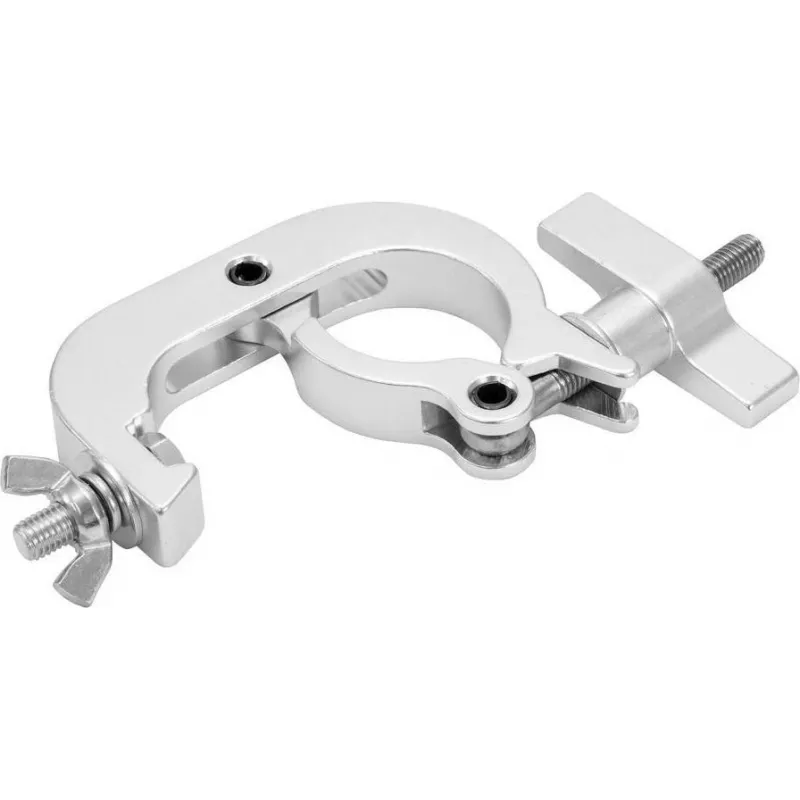

EUROLITE TH-220 gancho para truss Quick-Lock SLIM plateado 44-50 mm 100 kg WLL

Where standard truss hooks force a trade-off between bulk and load capacity, the EUROLITE TH-220 Quick-Lock Truss Hook SLIM delivers a 100 kg working load limit in a deliberately low-profile aluminium body. Its Quick-Lock mechanism lets you mount or reposition the hook in seconds without tools, while the anodised silver finish resists scratches and corrosion during frequent rigging changes. Built for 44–50 mm truss chords, this hook is at home on stage, in exhibitions, and anywhere fast, secure suspension is non-negotiable.

Highlights

• Quick-Lock mounting system for tool-free attachment and release
• 100 kg WLL (Working Load Limit) for professional rigging tasks
• Slim, lightweight aluminium construction reduces visual clutter and handling effort
• Anodised silver surface provides long-lasting protection and a clean look
• Fits truss tubes with diameters from 44 mm to 50 mm
• TÜV certified for verified safety and quality
• M10 wing screw allows secure manual tightening without extra tools

In daily use

Stage technicians and event crews will appreciate how quickly the TH-220 engages with a truss chord. Slide it over the tube, press the Quick-Lock lever, and the hook clamps firmly in place—no fumbling with hex keys or loose hardware. The wing screw gives you final tension control, ensuring the hook stays put even under dynamic loads. Because the body is slim, multiple hooks can be spaced closely on the same truss without interference, making it ideal for lighting bars, LED screens, and cable management systems. When it is time to strike the set, one motion releases the hook, speeding up load-out and reducing crew fatigue.

Full specifications

• Brand: EUROLITE
• Model: TH-220 Quick-Lock Truss Hook SLIM
• MPN: 58000747
• EAN: 4026397740912
• Product type: Truss hook / clamp
• Mounting system: Quick-Lock
• Material: High-quality aluminium
• Colour: Silver
• Surface finish: Anodised
• Truss diameter compatibility: 44–50 mm
• Working Load Limit (WLL): 100 kg
• Screw type: M10 wing screw
• Certification: TÜV certified
• Application: Stage, event, exhibition technology
• Design: Slim profile

Final note

For riggers who need dependable load capacity without the weight of steel clamps, the EUROLITE TH-220 Quick-Lock Truss Hook SLIM is a practical, certified solution that keeps setups fast and secure.
