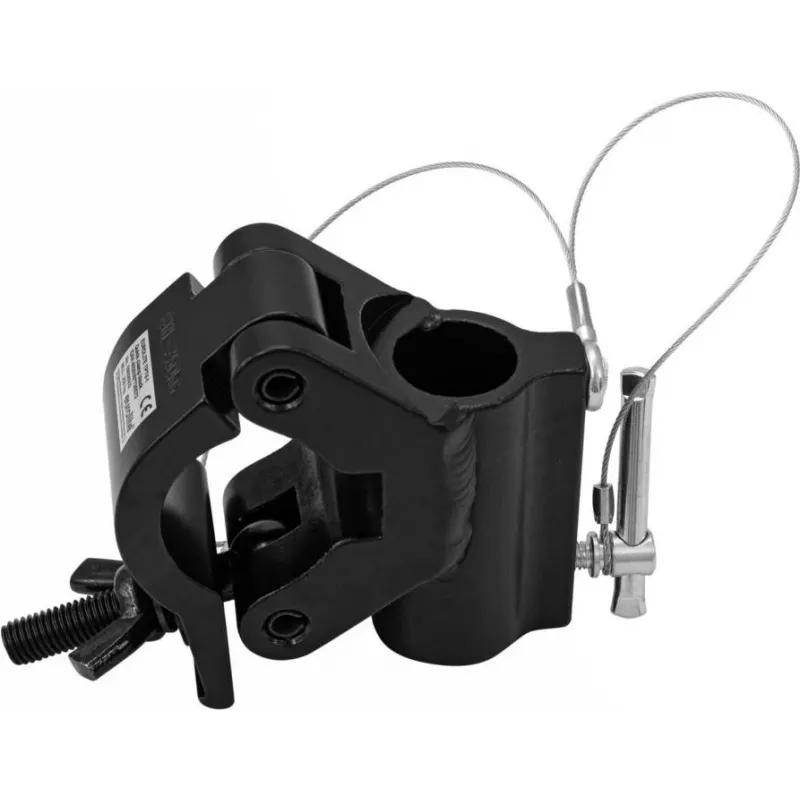

EUROLITE TPTV-1 Abrazadera en T negra (59006932)

Mounting lights and effects to T-bars or tubes often requires bulky, unreliable hardware that compromises safety and aesthetics. The EUROLITE TPTV-1 T-Bar Clamp eliminates these issues with a robust yet lightweight aluminum construction, powder-coated in black for a professional look. Designed to meet BGV C1 safety standards, it provides a secure attachment point for spotlights, light effects, and other equipment in stage lighting, exhibition stands, and event technology applications.

Who is it for

This clamp is ideal for event technicians, stage lighting professionals, and exhibition builders who need a dependable, easy-to-use mounting solution for T-bars or tubes up to 35 mm in diameter. Whether you're rigging a small spotlight or a heavier effect, the TPTV-1 offers the strength and versatility required for temporary or permanent installations.

Main features

• High load capacity: 10 kg with 8-fold safety, 8 kg with 10-fold safety (BGV C1)
• Compatible with T-bars and tubes up to 35 mm diameter
• M10 mounting bolt with wing nut for quick, tool-free adjustment
• Robust aluminum construction with durable black powder coating
• Lightweight design reduces overall rigging weight
• Complies with German BGV C1 safety standard for stage and production facilities

Specifications

• Product type: T-Bar Clamp
• Material: Aluminum
• Color: Black
• Max. load capacity (BGV C1, 8-fold safety): 10 kg
• Max. load capacity (BGV C1, 10-fold safety): 8 kg
• Compatible tube diameter: up to 35 mm
• Mounting bolt thread: M10
• Mounting hole diameter: 10 mm
• Mounting type: For T-bars or tubes
• Finish: Powder-coated
• Included hardware: M10 bolt and wing nut
• Application: Stage lighting, exhibition stands, event technology

Tips

Always verify that the tube or T-bar diameter is within the 35 mm limit before installation. Tighten the wing nut securely to ensure the load is evenly distributed. For maximum safety, do not exceed the specified load capacities and periodically inspect the clamp for signs of wear or damage.
