EVOLIGHTS LUMEN 7 RING 7x30W WW + 224x0.5W/31x0.2W

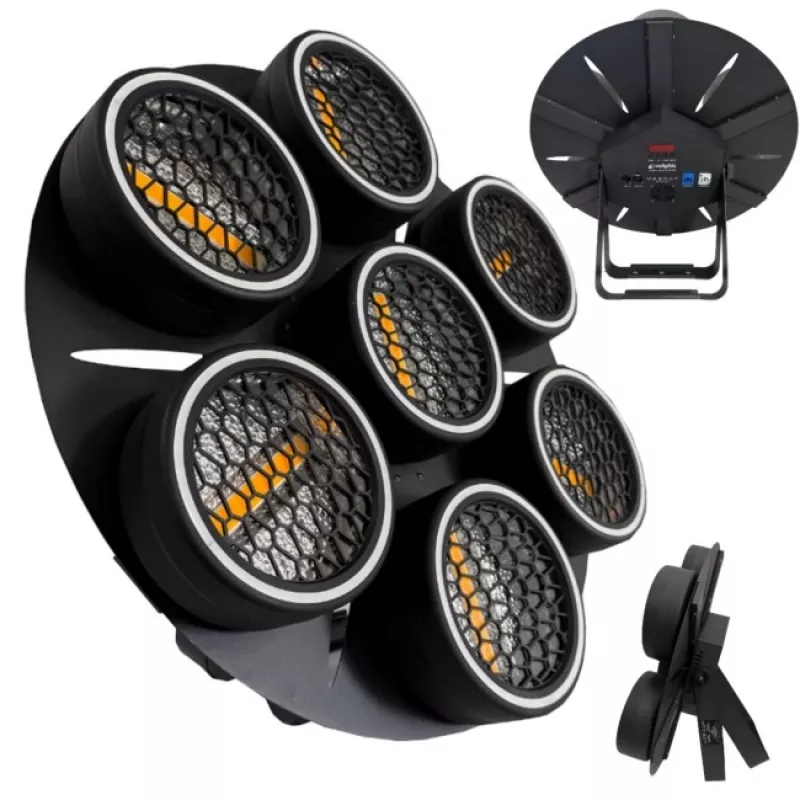

The EVOLIGHTS LUMEN 7 RING is a professional moving head light fixture combining powerful warm white wash with dynamic ring and pixel effects. Ideal for stage, event, and architectural lighting, it offers motorized zoom, smooth dimming, and versatile control options.

Advantages

Versatile 3-in-1 effect: wash, ring, and pixel. Motorized zoom for precise beam control. High total LED power of 328.2W. Multiple DMX channel modes for flexible integration.

Suitable for

• Stage lighting for concerts and theaters
• Event and party lighting
• Architectural accent lighting
• Nightclubs and DJ setups

Key specifications

• Light Source: 7x 30W Warm White LEDs (wash) + 224x 0.5W RGB LEDs (ring) + 31x 0.2W RGB LEDs (pixel)
• Total LED Power: Approx. 328.2W
• Beam Angle: 6° - 60° (motorized zoom)
• Color Temperature (WW): 3200K
• Pan/Tilt: 540° / 270°
• Dimmer: 0-100% linear electronic
• Strobe: 1-25 flashes/second
• Control Modes: DMX512, Auto, Sound Active, Master/Slave
• DMX Channels: 16 / 24 / 30 (selectable)
• Display: TFT LCD
• Power Input: AC 100-240V, 50/60Hz
• Max Power Consumption: 350W
• Power Connectors: PowerCon In/Out
• DMX Connectors: 3-pin XLR In/Out
• Cooling: Forced air
• IP Rating: IP20 (indoor use)
• Mounting: Omega bracket included

Recommendations

For best results, use with a compatible DMX controller and ensure adequate ventilation. Suitable for indoor use only.
