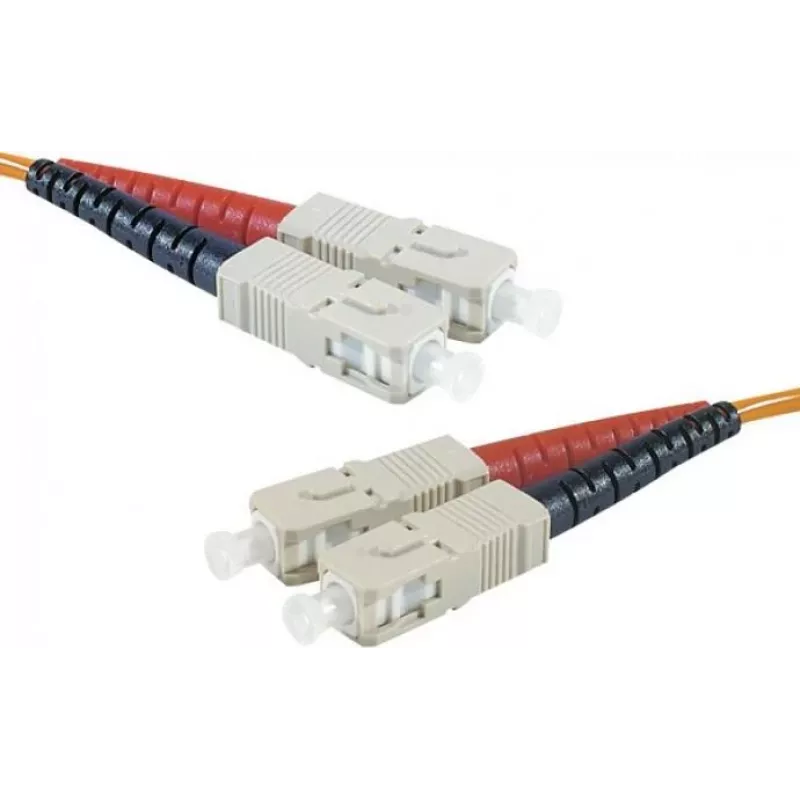

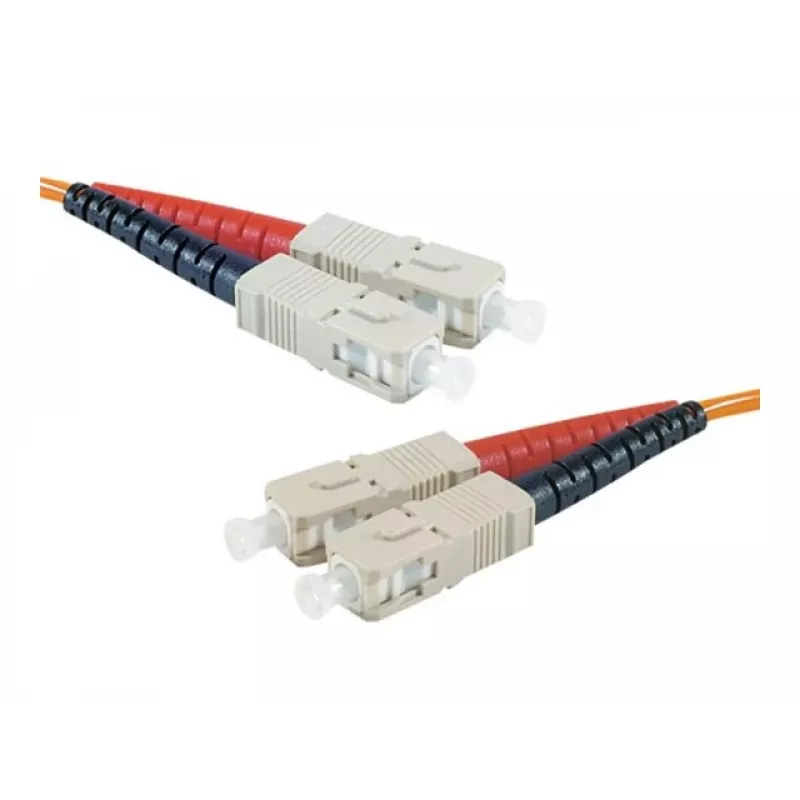

EXERTIS CONNECT Cable de conexión de fibra óptica Eco, 50/125 µm, fibra OM2, conector SC dúplex macho/macho, Naranja, 10,0 m UPC Polish 392696

This EXERTIS CONNECT Eco patch cable stands out with its OM2 multimode fibre and duplex SC connectors, delivering reliable performance for short-range data networking. The 10-metre length offers flexibility in structured cabling setups, while the orange PVC jacket provides easy identification and durability.

Highlights

• OM2 multimode fibre with 50/125 µm core/cladding diameter
• SC duplex connectors on both ends with UPC polish for low insertion loss
• 10.0 m length, ideal for patching in data centres and LANs
• Orange PVC jacket for visibility and protection

In daily use

This cable is suitable for connecting switches, routers, and patch panels in enterprise networks. The duplex design supports bidirectional communication, and the UPC polish ensures consistent optical performance with minimal back reflection.

Full specifications

• Fibre type: OM2 multimode
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Connector 1: SC Duplex
• Connector 2: SC Duplex
• Connector polish: UPC
• Cable length: 10.0 m
• Jacket colour: Orange
• Jacket material: PVC
• Number of fibres: 2
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 50 dB
• Attenuation at 850 nm: ≤ 3.5 dB/km
• Attenuation at 1300 nm: ≤ 1.5 dB/km
• Bandwidth at 850 nm: 500 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km

Final note

A dependable choice for multimode fibre patching, combining quality connectors and a robust jacket for everyday networking needs.
